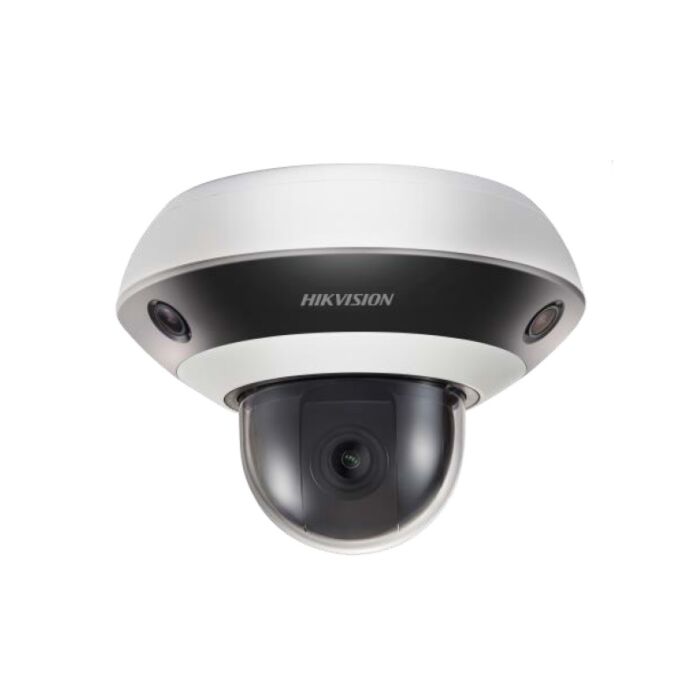

Hikvision DS-2PT3326IZ-DE3 Triple-Directional Mini PanoVu Camera with PTZ
SKU: DS-2PT3326IZ-DE3~EOL
Out of stock
The DS-2PT3326IZ-DE3 is now End of Life.
We recommend the DS-2DP3D404IWG1-E/36 as suitable replacements.
Key features:
- Triple-directional design - comes equipped with 3 Image sensors
- Multi-channel, Panoramic and PTZ
- Allows for 3-channels worth of Panoramic Images, each in different directions - allows for full area coverage
- 1920x1080 (16:9) Image Resolution
- Lens - Panoramic: 2mm Fixed focal | PTZ: 2.8 ~ 12mm Varifocal
- PTZ channel offers 4x Optical zoom and 8x Digital zoom
- Support for a selection of Smart Features - Basic events, Smart detection (PTZ only), Smart record
- IR Illumination - up to 10m
- Image Enhancement - HLC, BLC, 3D DNR, Regional focus (PTZ only), and Regional exposure
- 1-ch Audio Input and Output
- Built-in memory card slot - supports Micro SD/SDHC/SDXC (up to 256 GB)
- Working conditions - Temperature: -10°c ~ 50°c | Humidity: <90%
- For use in Indoor Environments - well suited for a range of different applications
- Features ONVIF support, Open-ended API, and support for Hikvision SDK or Third-party management platform
- Supports Hik Connect
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision PanoVu Mini User Manual
Hikvision PanoVu Mini Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2PT3326IZ-DE3 is a Triple-directional PanoVu camera, offering 3 lenses to cover up to 360° to ensure video surveillance with no blind-zones.
Hikvision PanoVu range cameras offer a streamlined surveillance experience, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2PT3326IZ-DE3 is a part of the PanoVu Mini series, and offers a 3-lens design, with both a PTZ and Panoramic channels, offering a range of video surveillance and image quality capabilities. PanoVu Mini cameras are also a good option for users in need of compact sizes and cost effective designs.
The PanoVu Mini range is designed for use in a range of Indoor environments, with suitable applications including; Offices, Retail, Education, and Hotels
Channels - The DS-2PT3326IZ-DE3 is designed to feature both a Panoramic channel and a PTZ channel.
The Panoramic channel is available in 3 of the Camera's sensors, with 1920x1080 resolution at 30fps, and a minimum illumination of 0.05 lux. The PTZ channel offers 1920x1080 resolution, with 4x optical zoom, and 8x digital zoom. Additional spec differences are listed in the table below.
Panoramic and PTZ channel specs:
| Panoramic channel | PTZ channel | |
| Image Enhancement | 3D DNR, Regional exposure | 3D DNR, Regional exposure, Regional focus |
| Privacy mask | 4 programmable masks (x3) | 8 programmable masks |
| Lens Type | F2.0 aperture, Fixed Focal lens | F2.0 ~ F2.4 aperture range, Varifocal lens |
| Focal length | 2mm | 2.8 ~ 12mm |
| Zoom | N/A | 8x digital zoom, 4x optical zoom, 5.4s zoom speed |
| Field of View | 128.5° x 3 (Horizontal FOV), 75.7° (Vertical FOV), 144° (Diagonal FOV) | 120° ~ 56.6° (Horizontal FOV), 61.8° ~ 31.7° (Vertical FOV), 149° ~ 65° (Diagonal FOV) |
| Pan and Tilt | N/A | Pan: 0° ~ 90° | Tilt: 0° ~ 90° |
| Additional Features (for PTZ) | N/A | Proportional zoom, Power-off memory, PTZ status display, Scheduled tasks (preset/dome reboot/dome adjust), and Smart Events (audio exception, intrusion, and line crossing detection) |
DORI = Detect, Observe, Recognise, Identify - The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Panoramic - Distance (Tele) | 26.7 m | 10.6 m | 5.3 m | 2.7 m |
| PTZ - Distance (Tele) | 160 m | 63.5 m | 32 m | 16 m |

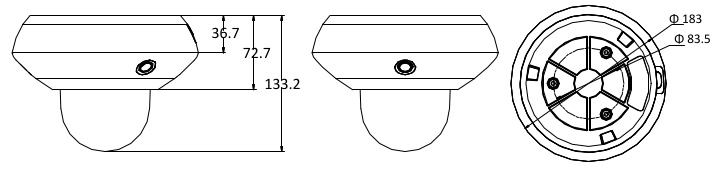

Dimensions
