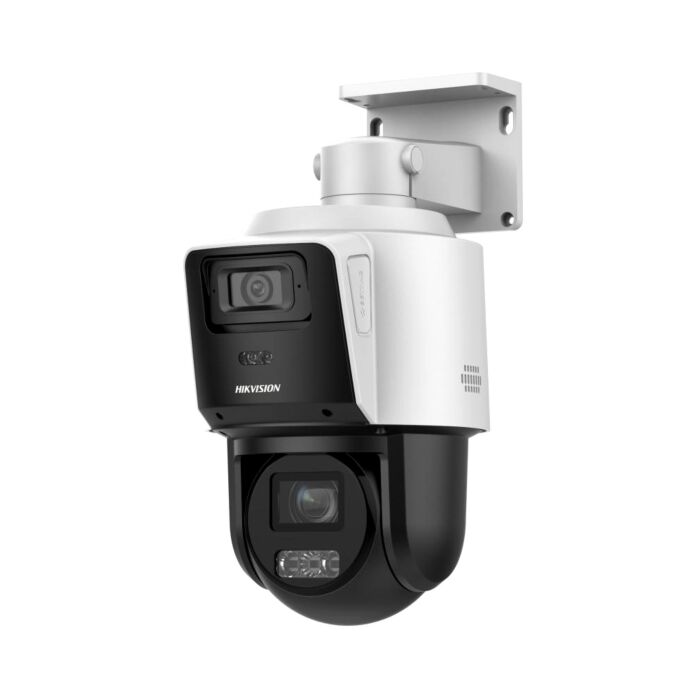

Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4X PTZ Network Camera
SKU: DS-2SE3C404MWG-E/14
In stock
Key features:
- TandemVu - offers 2 channels (Bullet and PTZ) in a single camera
- Image Resolution | Bullet channel - 4MP (2560x1440) | PTZ channel - 4MP (2560x1440) |
- 4x Optical zoom, 16x Digital zoom
- Lens Focal Length | Bullet channel - 2.8mm | PTZ channel - 2.8mm ~ 12mm |
- IR Illumination | Bullet Channel - Up to 30m | PTZ Channel - Up to 40m |
- White Light Distance - Up to 30m (Bullet Channel)
- Supports Image Enhancement - BLC, HLC, 3D DNR, ≥ 52 dB SNR, up to 120dB WDR | PTZ Channel - Regional exposure and Regional focus |
- PTZ specs | Pan range - 0° to 350° | Tilt range - -5° ~ 90° |
- Supports Proportional pan, 3D positioning, 8 Patrols, and more (PTZ channel)
- Supports Human and Vehicle Detection
- Ingress Protection - IP66
- Operating Temperature - -30°c ~ 50°c | Humidity - lower than 95%
This product is powered by 12V DC or PoE+. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision TandemVu PTZ User Manual
Hikvision TandemVu PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2SE3C404MWG-E/14 is a TandemVu PTZ Network Camera that provides 4MP resolution in both its Bullet and PTZ channel.
As a part of Hivision's TandemVu camera range, the DS-2SE3C404MWG-E/14 explores the capabilities of both Bullet and PTZ lenses within a single camera. With a dual-channel design, users can experiance the benefits of two lens types, working in tandem to achieve consistant panoramic views (with the bullet channel) alongside detailed close ups (utilizing the PTZ channel's pan, tilt, and zoom manouvers)
With a TandemVu users can feel confident of effective area coverage, with awareness of the bigger picture, as well as clear details, and close ups, keeping every aspect of surveillance as secure as possible.
For more information on the differences between the Bullet and PTZ channels, alongwith what features / specs they have to offer, please see the table below:
| Bullet Channel | PTZ Channel | |
| Image Sensor | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560x1440 | 2560x1440 |
| Min. Illumination | 0.01 lux (colour), 0.005 lux (monochrome) | 0.01 lux (colour), 0.005 lux (monochrome) |
| Supplement Light | IR, up to 30m and White Light, up to 30m | IR, up to 40m |
| Lens Type / Aperture | 2.8mm - F1.6 | 2.8mm ~ 12mm - F1.5 to F2.9 |
| Zoom | N/A | 4x Optical zoom, 16x Digital zoom |
| Movement Range | Tilt range - 7° ~ 17° (manually adjust) |
Pan range - 0° to 350° | Speed - 30°/s (preset) Tilt range - -5° ~ 90° | Speed - 30°/s |
| Scans | N/A |
8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans |
Events and Alarm Linkage
Users should also note that the DS-2SE3C404MWG-E/14 also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: Motion detection, Video tampering alarm, Alarm input, Alarm output, and, exception
- Smart Events: Audio exception detection, Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection
- Alarm Linkage: Upload to FTP/NAS/memory card, Notify surveillance centre, Send email, Trigger alarm output, Trigger recording, Audible warning, White light flashing; (PTZ channel only) - PTZ actions - preset, patrol scan, pattern scan
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 156.5m | 62.1m | 31.3m | 15.7m |
For more information about the capabilities of Hikvision's TandemVu series cameras, please see the following 'TandemVu in Action' videos:
Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

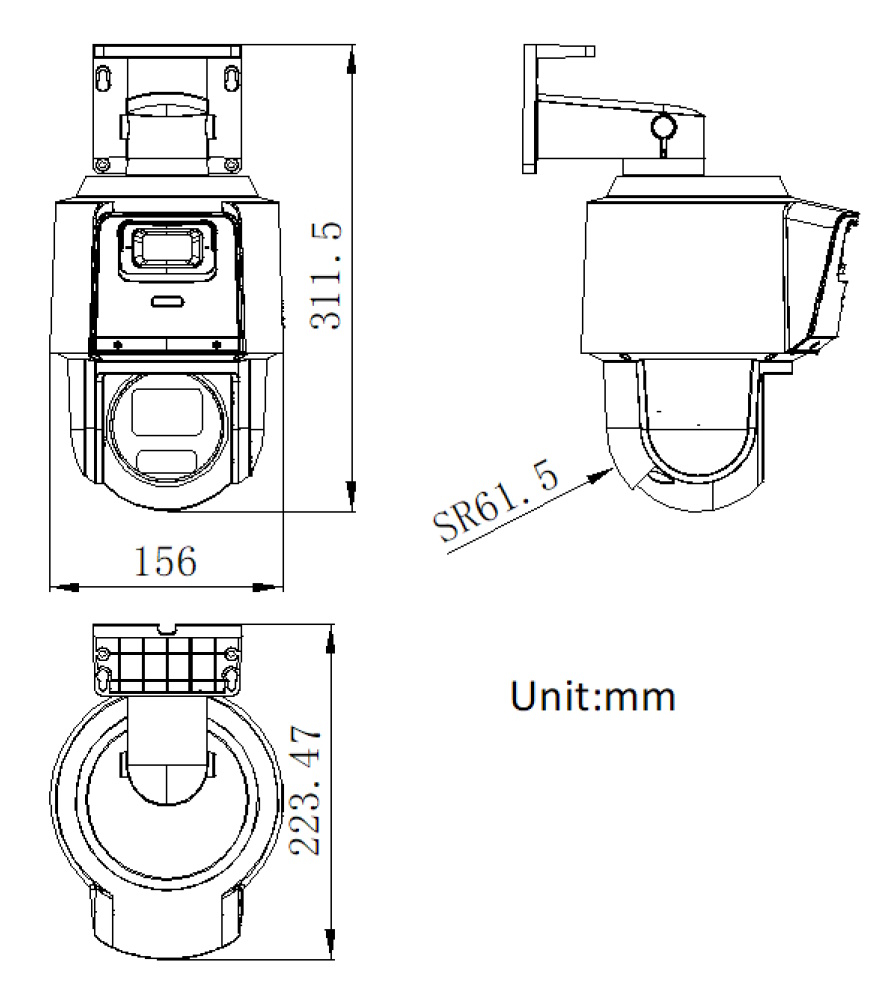

Dimensions:
