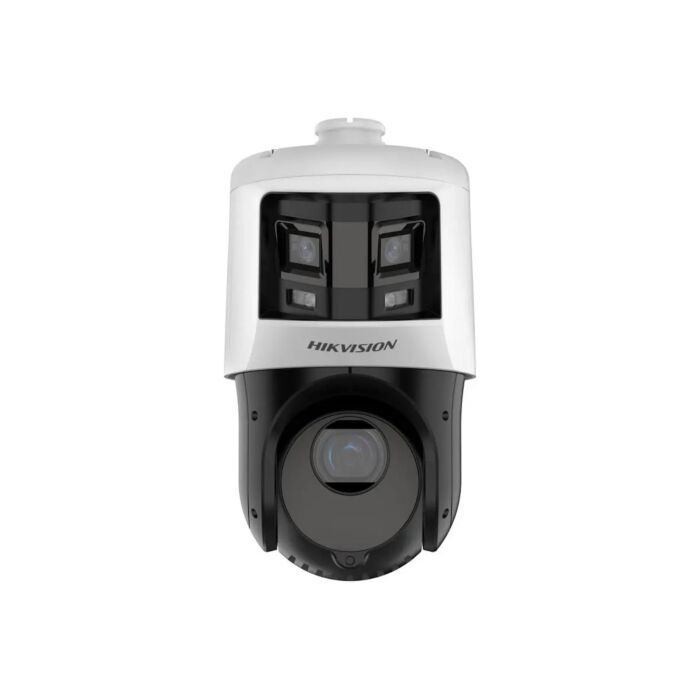

Hikvision DS-2SE4C425MWG-E/26(F0) 6MP Panoramic Bullet + 4MP PTZ TandemVu Camera
SKU: DS-2SE4C425MWG-E/26(F0)
In stock
Key features:
- TandemVu - Designed with 2 channels, Bullet and PTZ, in a single camera
- Image Resolution - Bullet: 4MP (3632 x 1632) | PTZ: 6MP (2560 x 1440)
- Up to 30fps (for both channels)
- Lens - Bullet: Fixed 2.8mm | PTZ: Varifocal 4.8 ~ 120mm (with 25x optical / 16x digital zoom)
- Supports Semi-Auto, Manual, and Auto focus
- Suppliment Light - Bullet: White Light up to 30m | PTZ: IR up to 100m
- PTZ Capabilities - supports Power-off memory, Park Actions, 3D Positioning, Proportional zoom, and more..
- Supports a selection of Image Settings, Day/Night switch, and Defog
- Image Enhancement - features; WDR, EIS, BLC, HLC, 3DNR, and, Regional focus / exposure
- Equipped for Panorama Linkage, Smart Events, and Face Capture
- Supports Environment Noise Filtering
- Up to 20 simultaneous Live Views, and up to 32 Users/Host
- IP66 Ingress Protection
- Operating Conditions - Temperature: -30°c to 65°c | Humidity: lower than 90% RH
This product is powered by 12 VDC or PoE+. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision TandemVu PTZ User Manual
Hikvision TandemVu PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2SE4C425MWG-E/26(F0) is a Panoramic TandemVu camera, from Hikvision, with a 6MP Bullet and a 4MP PTZ channel.
As a part of Hivision's TandemVu camera range, the DS-2SE4C425MWG-E/26(F0) explores the capabilities of both Bullet and PTZ lenses within a single camera. With a dual-channel design, users can experiance the benefits of two lens types, working in tandem to achieve consistant panoramic views (with the bullet channel) alongside detailed close ups (utilizing the PTZ channel's pan, tilt, and zoom manouvers)
With a TandemVu users can feel confident of effective area coverage, with awareness of the bigger picture, as well as clear details, and close ups, keeping every aspect of surveillance as secure as possible.
For more information on the differences between the Bullet and PTZ channels, alongwith what features / specs they have to offer, please see the table below:
| Bullet Channel | PTZ Channel | |
| Image Sensor | 1/2.5" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3632x1632 | 2560x1440 |
| Min. Illumination | 0.0005 lux | 0.005 lux (colour), 0.001 lux (b/w) |
| Supplement Light | White Light, up to 30m | IR, up to 100m |
| Lens Type / Aperture | 2.8mm Fixed focal / F1.0 | 4.8mm ~ 120mm Varifocal / F1.6 |
| Zoom | N/A | 25x Optical zoom, 16x Digital zoom |
| Movement Range | N/A |
Pan range - 360° | Speed - 80°/s (preset) Tilt range - -15° ~ 90° (auto flip) | Speed - 80°/s |
| Scans | N/A |
8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans Scan actions - Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Dome adjust, and, Aux output |
Events and Alarm Linkage
Users should also note that the DS-2SE4C425MWG-E/26(F0) also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: Motion detection, Video tampering alarm, Alarm input, Alarm output, and, exception.
- Smart Events: Audio exception detection, Region entrance detection, Region exiting detection, Intrusion detection, and, Line crossing detection.
- Alarm Linkage: Upload to FTP/NAS/memory card, Notify surveillance centre, Send email, Trigger alarm output, Trigger recording, Audiable warning, and PTZ actions - preset, patrol scan, pattern scan.
- Deep Learning Function: Face Capture (Can detect up to 5 faces simultaneously)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 2200.0 m | 873.0 m | 440.0 m | 220.0 m |
For more information about the capabilities of Hikvision's TandemVu series cameras, please see the following 'TandemVu in Action' videos:
Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

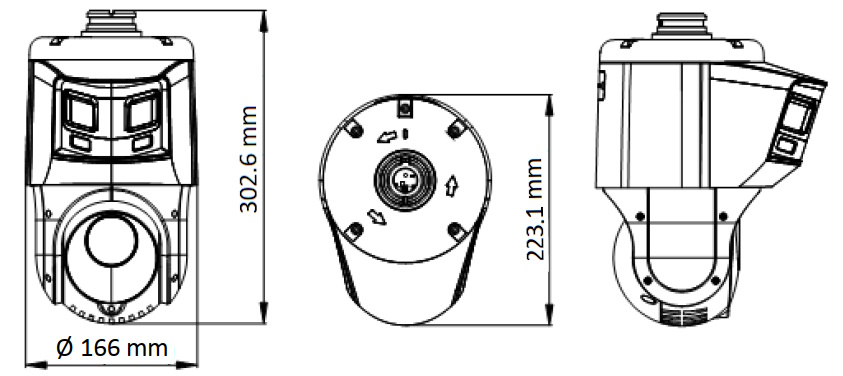

Dimensions:
