Hikvision DS-2SE7C425MW-AEB(14F1)(P3) TandemVu 7-inch 4MP 25x IR Network Speed Dome
SKU: DS-2SE7C425MW-AEB(14F1)(P3)
In stock
Key features:
- TandemVu - offers 2 channels (Bullet and PTZ) in a single camera
- 4MP Image Resolution (up to 2560x1440 at 30fps)
- 25x Optical zoom, 16x Digital zoom
- Lens Focal Length | Bullet channel - Fixed 4mm | PTZ channel - 4.8mm ~ 120mm |
- Impressive Low Light performance with DarkFighter technology
- IR Illumination - Up to 200m (PTZ channel) | White Light Distance - Up to 30m (Bullet channel)
- Supports Image Enhnacement - BLC, HLC, 3D DNR, Defog, EIS, Regional exposure, and, Regional focus
- Wide Dynamic Range (WDR) - 120dB
- PTZ specs | Pan range - 360° | Tilt range - -15° ~ 90° (auto flip) |
- Supports Proportional zoom, 3D positioning, 8 Patrols, 4 Pattern scans, and more (PTZ channel)
- Active Strobe Light and Audio Alarm to warn off intruders
- Ingress Protection - IP66
- Operating Temperature - -30°c ~ 65°c | Humidity - lower than 90%
This product is powered by 24VAC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision TandemVu PTZ User Manual
Hikvision TandemVu PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details

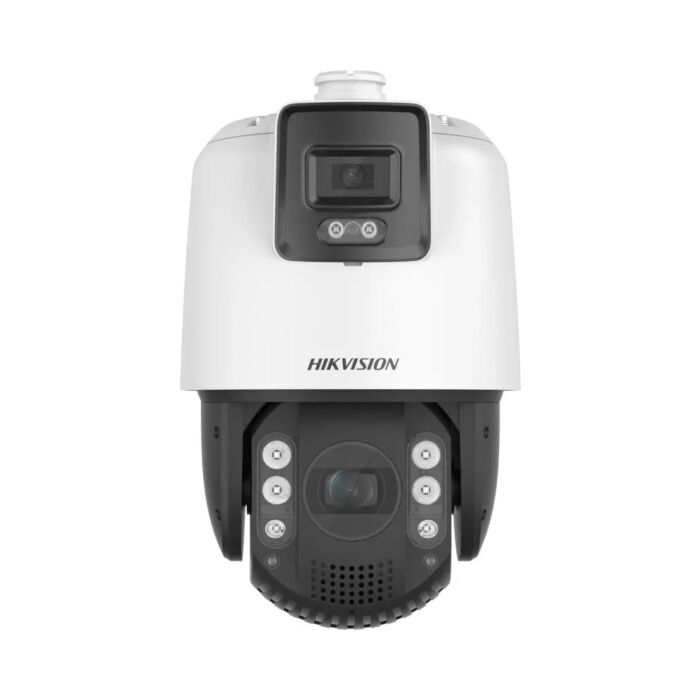

The DS-2SE7C425MW-AEB(14F1)(P3) is a 7-inch TandemVu Network Speed Dome camera, with 4MP resolution and 25x Optical zoom, from Hikvision.
As a part of Hivision's TandemVu camera range, DS-2SE7C425MW-AEB(14F1)(P3) explores the capabilities of both Bullet and PTZ lenses within a single camera. With a dual-channel design, users can experiance the benefits of two lens types, working in tandem to achieve consistant panoramic views (with the bullet channel) alongside detailed close ups (utilizing the PTZ channel's pan, tilt, and zoom manouvers)
With a TandemVu users can feel confident of effective area coverage, with awareness of the bigger picture, as well as clear details, and close ups, keeping every aspect of surveillance as secure as possible.
For more information on the differences between the Bullet and PTZ channels, alongwith what features / specs they have to offer, please see the table below:
| Bullet Channel | PTZ Channel | |
| Image Sensor | 1/1.8" Progressive Scan CMOS | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560x1440 | 2560x1440 |
| Min. Illumination | 0.0005 lux | 0.005 lux (colour), 0.001 lux (monochrome) |
| Supplement Light | White Light, up to 30m | IR, up to 200m |
| Lens Type / Aperture | 4mm ~ Fixed focal / F1.0 | 4.8mm ~ 120mm Varifocal / F1.6 |
| Zoom | N/A | 25x Optical zoom, 16x Digital zoom |
| Movement Range | N/A |
Pan range - 360° | Speed - 160°/s (preset) Tilt range - -15° ~ 90° (auto flip) | Speed - 120°/s |
| Scans | N/A |
8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans Scan actions - Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Dome adjust, and, Aux output |
Events and Alarm Linkage
Users should also note that the DS-2SE7C425MW-AEB(14F1)(P3) also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: (PTZ and Bullet Channels) - Alarm input, Alarm output, and, exception; (PTZ Channel only) - Motion detection, Video tampering alarm
- Smart Events: (PTZ and Bullet Channels) - Audio exception detection, Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection
- Alarm Linkage: (PTZ and Bullet Channels) - Upload to FTP/NAS/memory card, Notify surveillance centre, Send email, Trigger alarm output, Trigger recording, Audible wanring, White light flashing; (PTZ channel only) - PTZ actions - preset, patrol scan, pattern scan
- Deep Learning Function: Face Capture (PTZ channel only)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 2200m | 873m | 440m | 220m |
For more information about the capabilities of Hikvision's TandemVu series cameras, please see the following 'TandemVu in Action' videos:
Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

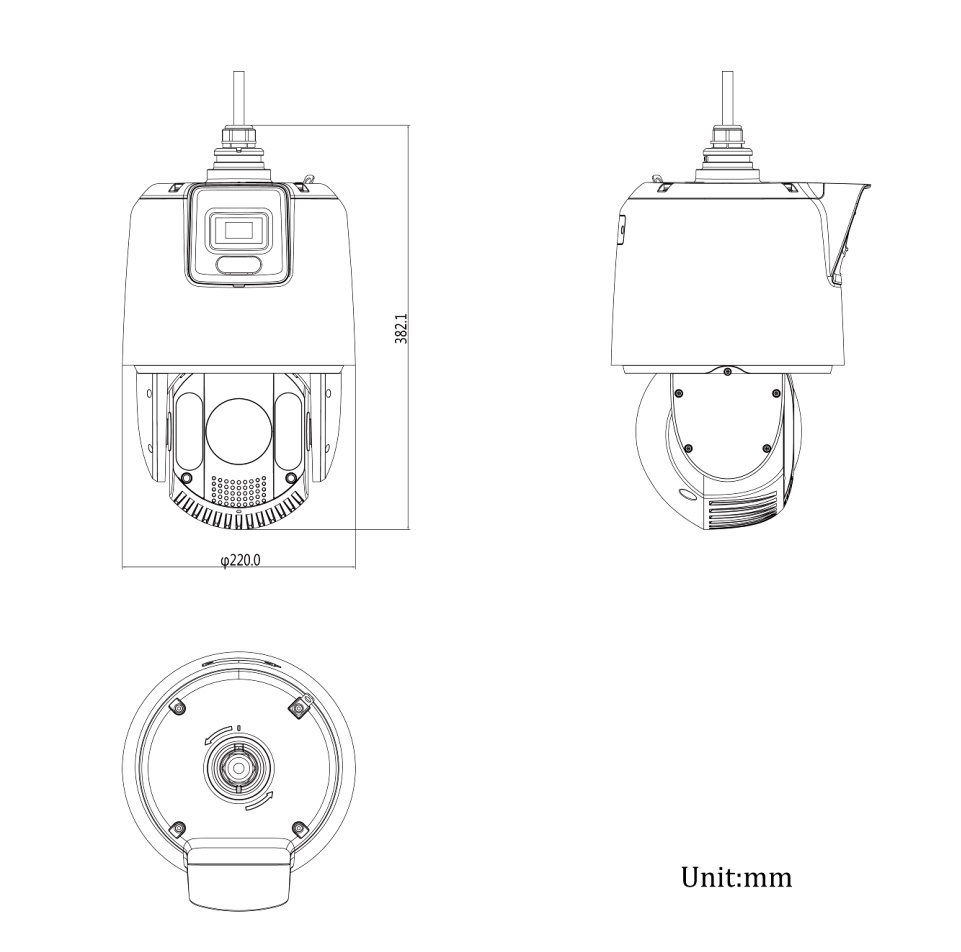

Dimensions:
