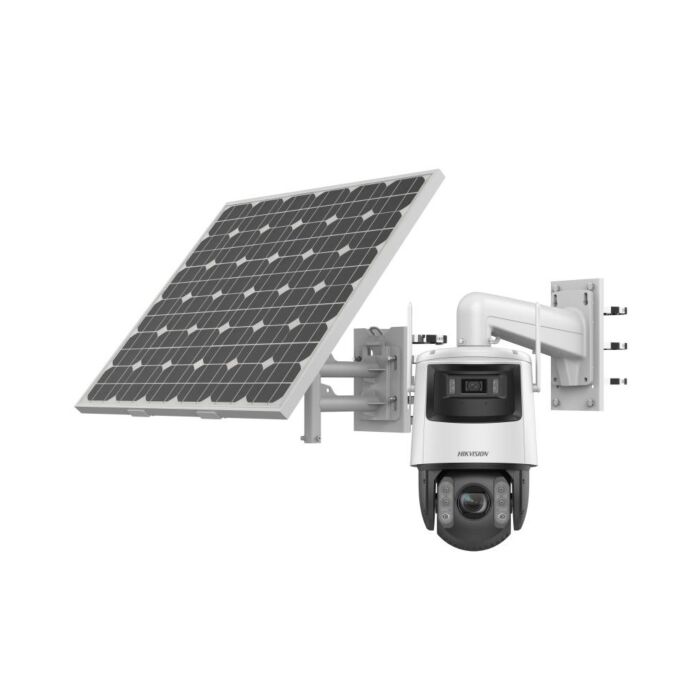

Hikvision DS-2SE7C432IWG-K/4G/14(F0) TandemVu 7-inch 4MP 32x Solar-Powered Security Network Speed Dome Kit
SKU: DS-2SE7C432IWG-K/4G/14(F0)
Contact Us for Stock Levels
Key features:
- TandemVu - offers 2 channels (Bullet and PTZ) in a single camera
- Image Resolution | Bullet channel - 4MP (2560x1440) | PTZ channel - 4MP (2560x1440) |
- PTZ Channel - 32x Optical zoom, 16x Digital zoom
- Lens Focal Length | Bullet channel - 2.8mm | PTZ channel - 5.9mm ~ 188.8mm |
- IR Illumination | Bullet channel - up to 30m | PTZ channel - up to 200m |
- Excellent low-light performance with ColorVu technology in Bullet channel
- Supports Image Enhancement - BLC, HLC, 3D DNR,＞52dB SNR, Regional exposure, Regional focus, EIS
- Wide Dynamic Range (WDR) - 120dB
- PTZ specs | Pan range - 360° | Tilt range - -15° ~ 90° (auto flip) |
- Supports Proportional zoom, 3D positioning, 8 Patrols, 4 Pattern scans, and more (PTZ channel)
- Supports scheduled sleep mode and low power sleep mode
- Ingress Protection - IP66
- Operating Temperature - -30°c ~ 65°c | Humidity - lower than 90%
This product is powered by 12V DC.
Please note: this product does not come with a power supply.
Hikvision TandemVu PTZ User Manual
Hikvision TandemVu PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2SE7C432IWG-K/4G/14(F0) is a TandemVu Network Speed Dome camera, with 4MP resolution and 32x optical zoom, from Hikvision.
As part of Hikvision's TandemVu range, the DS-2SE7C432IWG-K/4G/14(F0) provides both Bullet and PTZ lenses within a single camera. With a TandemVu users can feel confident of effective area coverage, with awareness of the bigger picture, as well as clear details, and close ups, keeping every aspect of surveillance as secure as possible.
For more information on the differences between the Bullet and PTZ channels, along with what features / specs they have to offer, please see the table below:
| Bullet Channel | PTZ Channel | |
| Image Sensor | 1/1.8" Progressive Scan CMOS | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560x1440 | 2560x1440 |
| Min. Illumination | 0.0005 lux, 0 lux with light | 0.005 lux (colour), 0.001 lux (monochrome), 0 lux with IR |
| Supplement Light | IR, up to 30m | IR, up to 200m |
| Lens Type / Aperture | 2.8mm - F1.0 | 5.9mm ~ 188.8mm - F1.5 |
| Zoom | N/A | 32x Optical zoom, 16x Digital zoom |
| Movement Range | N/A |
Pan range - 360° | Speed - 80°/s (preset) Tilt range - -15° ~ 90° (auto flip) | Speed - 80°/s |
| Scans | N/A |
8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans Scan actions - Preset, Pattern scan, Patrol scan, Auto scan, Tilt scan, Random scan, Frame scan, and Panorama scan |
Events and Alarm Linkage
Users should also note that the DS-2SE7C432IWG-K/4G/14(F0) also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: (PTZ Channel) - Motion detection, Video tampering alarm (PTZ and Bullet Channels) Alarm input, Alarm output, and, exception
- Smart Events: (PTZ Channel) - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection
- Alarm Linkage: Upload to FTP/NAS/memory card, Notify surveillance centre, Send email, Trigger alarm output, Trigger recording; (PTZ channel only) - PTZ actions - preset, patrol scan, pattern scan
- Deep Learning Function: (PTZ Channel) - Face Capture (supports detecting up to 5 faces at a time)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 3060m | 1214.3m | 612m | 306m |
For more information about the capabilities of Hikvision's TandemVu series cameras, please see the following 'TandemVu in Action' videos:
Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

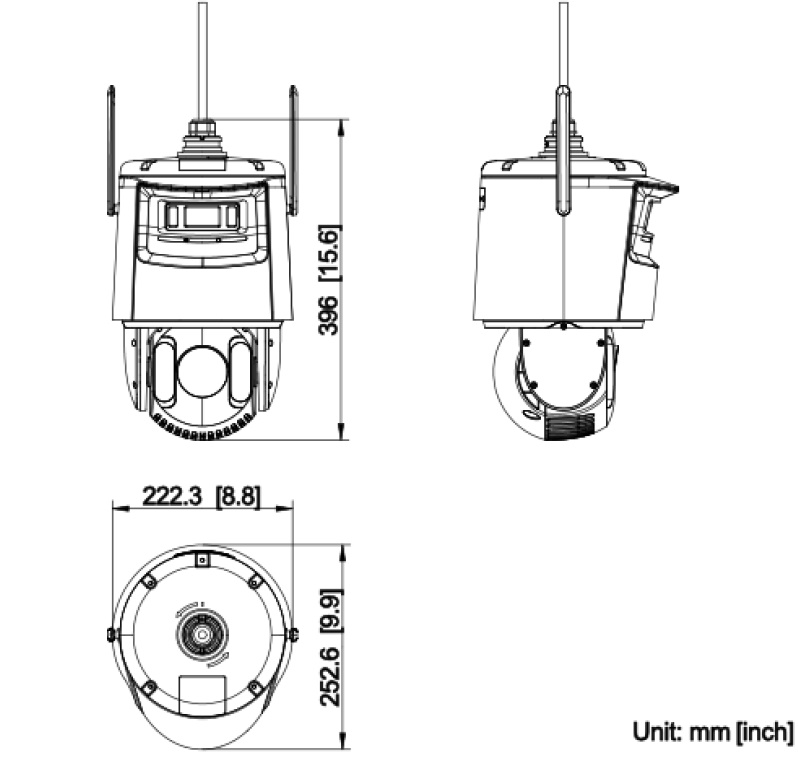

Dimensions:
