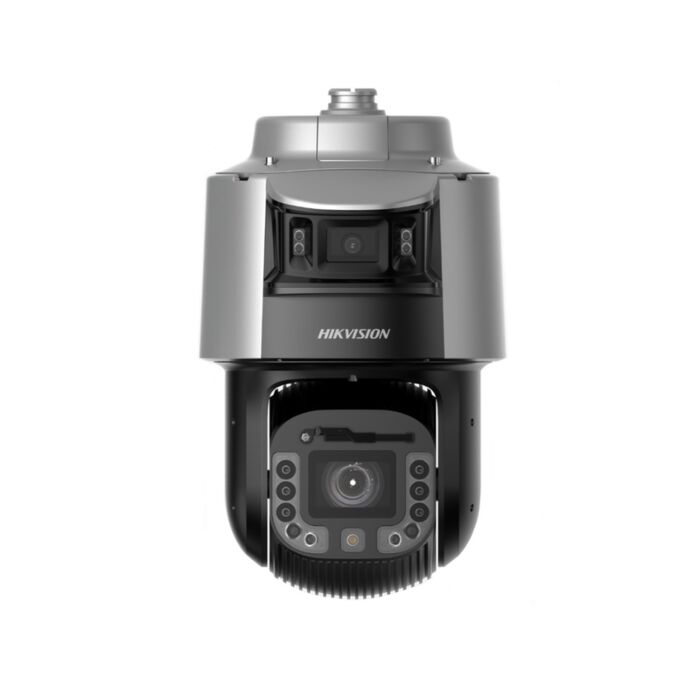

Hikvision DS-2SF8C442MXS-DLW (14F1)(P3) 8-inch 4MP 42x TandemVu PTZ Camera
SKU: DS-2SF8C442MXS-DLW(14F1)(P3)~EOL
Out of stock
The DS-2SF8C442MXS-DLW(14F1)(P3) is now End of Life.
Please feel free to browse our Hikvision category to find a suitable replacement.
Key features:
- TandemVu - offers 2 channels (PTZ and Bullet) in a single camera
- 4MP (2560 x 1440, for both channels) Image Resolution
- PTZ Channel, Zoom - 42x optical, 16x digital
- Focal Length - 4mm (Bullet channel) 6mm ~ 252mm (PTZ channel)
- Adjustable Tilt - 7° ~ 17° (Bullet channel) -20° ~ 90° (PTZ channel)
- Up to 300m IR Illumination, and 30m White Light range
- Up to 20 channels Simultaneous Live View
- Robust Security Features - Includes; password protection, IP address filter, host authentication, etc
- Supports a range of Smart Features
- Patrol Scan - 8 patrols, each with up to 32 presets
- Pattern Scan - 4 pattern scans, each with a record time of over 10 minutes
- Features Multi-Target-Type Detection (allows it to detect and capture, humans and vehicles)
- Equipped for Outdoor Application - IP67 (for water and dust resistance)
- Operating Temperature - -40°c ~ 70°c
- Vandal Resistant - IK10 Impact rating
This product is powered by 36 VDC.
Please note: this product does not come with a power supply.
Hikvision TandemVu PTZ User Manual
Hikvision TandemVu PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2SF8C442MXS-DLW (14F1)(P3) 4MP 42x optical zoom PTZ, is a part of Hikvision's TandemVu camera range, exploring the capabilities of combining PTZ and bullet lenses. This allows for the use of multiple lenses in a single camera, offering different specs, features and surveillance capabilities, an ideal option for any user in need of effective outdoor video surveillance.
Hikvision's TandemVu range allows users to hold panoramic views (using the bullet channel) even during pan, tilt, and zoom manoeuvres (using the PTZ channel), so even when getting a close up of the scene, you can feel confident that you will always be aware of the bigger picture, keeping everything as secure as possible.
With an Ingress protection of IP67, the DS-2SF8C442MXS-DLW is an ideal choice for outdoor security, including; airports, highways, train stations, city squares, scenic areas and power plants. It should also be noted, that with Day and Night functionality (and an IR cut filter) users will be able to see crystal clear, full-colour footage, no matter the time of day.
The DS-2SF8C442MXS-DLW also offers a range of Smart features, including:
- Basic Events: Video tampering alarm (only on PTZ channel), exception, alarm input and output (on both the PTZ channel and the Bullet channel)
- Smart Events: Audio exception detection (on both the PTZ channel and the Bullet channel), line crossing detection, intrusion detection, region entrance, and region exiting detection (only on PTZ channel)
- Smart Linkage: Manual tracking, Auto-tracking (supported by PTZ channel), Tracking takeover, Linked tracking capture
- Alarm Linkage: Upload to FTP/NAS/Memory card, Notify surveillance centre, Send Email, Trigger alarm, Trigger recording, Audible warning, White light flashing
- Multi-Target-Type Detection: Allows for simultaneous detection and capture of human body, face, and vehicles. (only on PTZ channel)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| [Bullet channel] Distance | 77.0m | 30.5m | 15.4m | 7.7m |
| [PTZ channel] Distance (Tele) | 2965.5m | 1176.8m | 593.1m | 296.6m |
For more information about the capabilities of Hikvision's TandemVu series cameras, please see the following 'TandemVu in Action' videos:
Industrial Park / Warehouse Docks , Industrial Park Perimeters , Industrial Park Entryways

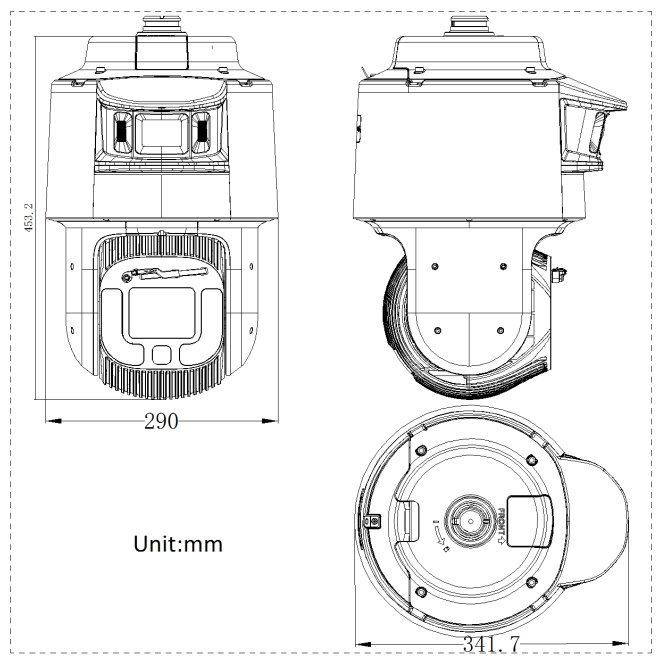

Dimensions
