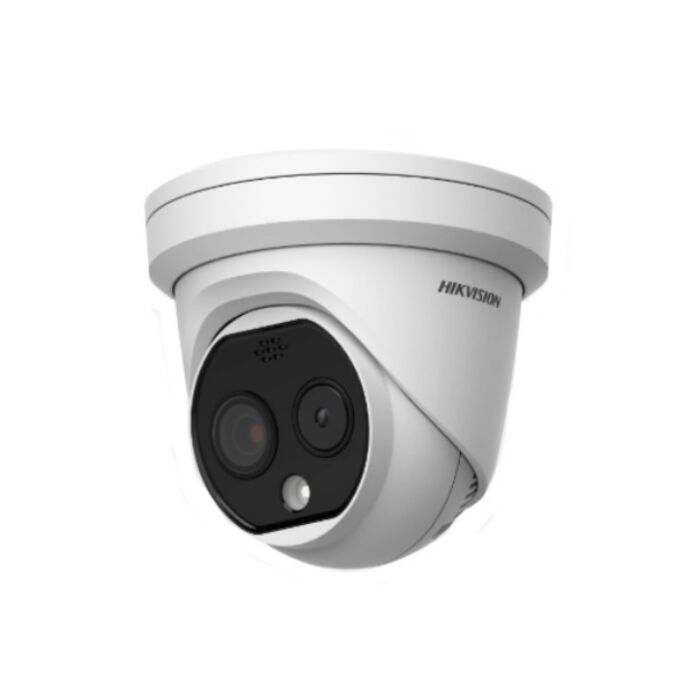

Hikvision DS-2TD1228-3/QA HeatPro Thermal Turret Camera
SKU: DS-2TD1228-3/QA
In stock
Key features:
- Vehicle/Human Classification
- Temperature exception alarm for Fire Prevention
- Smart Function Temperature Range - -20°c ~ 150°c
- WDR (Wide Dynamic Range) - 120 dB
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- High Quality Detector (10 Years Guarantee)
- Visual Alarm and 2 types of Audio Alarm (VCA and Temperature Exception)
- Alarm Input/Output - 1 Input (0 to 5 VDC) / 1 Output (with configurable alarm response actions)
- Alarm Actions - SD recording, Relay output, Smart capture, FTP upload, and, Email linkage
- Working Temperature - -40°c ~ 65°c
- Ingress Protection Rating - IP66
This product can be powered by 24V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision DS-2TD1228-3-QA User Manual
Hikvision DS-2TD1228-3-QA Quick Start Guide
Hikvision HeatPro Series Brochure
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2TD1228-3/QA Thermal Camera, offers an optical Bi-spectrum, Network Turret design, with support for video analysis (ideal for perimeter protection) and equipped with a temperature exception alarm (designed for early fire prevention)
As a part of the Hikvision HeatPro series, the DS-2TD1228-3/QA, features Thermal Radiation detection abilities, allowing it to detect object temperatures (both high and low) and temperature changes (with alarms connected to these). This is what allows for its impressive early fire detection ability, and makes it capable of working even in cases of darkness, low light, or strong backlight. With a HeatPro camera, users are able to react to fires (or other drastic temperature change issues) as quickly as possible, keeping damage to a minimum.
With a deep learning algorithm, the DS-2TD1228-3/QA also offers high precision VCA detection and real-time alarm, so users can always feel that their property is being kept as secure as possible, and know that they will be alerted to react to incidents as soon as possible.
With its smart features, and IP66 design, the DS-2TD1228-3/QA is considered an ideal choice of camera to be applied to a wide range of environments, including; Villas, Communities, Car parks, Warehouses, Construction sites, Waste incineration plants, and, Manufacturing workshops.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 75.6m - Humans (1.8 x 0.5 m) - 28.4m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (0.2 x 0.2 m) - 11.7m - Object (1 x 1 m) 58.3m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.
Temperature Range - -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy - ± 8°C (± 14.4°F)
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 460 m - Humans (1.8 x 0.5 m) 150 m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 112 m - Humans (1.8 x 0.5 m) 38 m - In order to classify, the object (Animal, Human, Vehicle, ect) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 56 m - Humans (1.8 x 0.5 m) 19 m - In order to identify and describe it in details, the object must be covered by 12, or more, pixels.

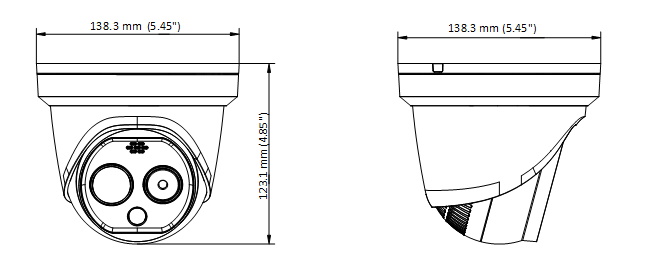

Dimensions:
HeatPro Series:
