DS-2TD1217B-3/PA Distance

It is recommended to install this camera in a stable, indoor environment, away from wind or drafts to ensure the best results.

3,060.00

Hikvision DS-2TD2617B-3/PA Temperature Screening Thermal Bullet Camera - 3.1mm

Availability: Available for delivery in 2~3 working days

Hikvision DS-2TD2617B-3/PA

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The DS-2TD2617B-3/PA is a temperature screening thermal network bullet camera that provides an accuracy of ±0.5°C, meeting preliminary fever screening requirements. Using AI-Powered human body detection, the DS-2TD2617B-3/PA reduces false alarms caused by non-human heat sources.

This model provides a cost effective solution to fever screening in areas such as offices, hospitals, airports and schools upon entering the building.

The DS-2TD2617B-3/PA features a bi-spectrum image with one module offering thermal imaging and the second offering an optical image. The optical module features a 4mm lens providing an 84° FOV and 4MP resolution providing users a clear image for increased surveillance. The optical image result is further enhanced with powerful supplement IR lighting which can reach up to 40m and 102dB WDR enhancing scenes that are exposed to difficult and contrasting light conditions.

With a built-in audio alarm the device can be programmed to alert to elevated temperatures

Thermal Camera User ManualQuick Start Guide Thermal VCA Configuration

Product Datasheets

Hikvision DS-2TD2617B-3/PA Temperature Screening Thermal Bullet Camera - 3.1mm Datasheet (0.97MB)


Authorised Hikvision Seller
Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


DS-2TD1217B-3/PA Distance

It is recommended to install this camera in a stable, indoor environment, away from wind or drafts to ensure the best results.

Frequently bought together

+
+

Key Features

- Bi-spectrum lens
- Temperature accuracy ±0.5°C
- Temperature range: 30°C - 45°C
- Audio Alarm
- 3D DNR
- Temperature Exception Alarm Function
- 4mm Optical Lens
- 3.1mm Thermal Lens

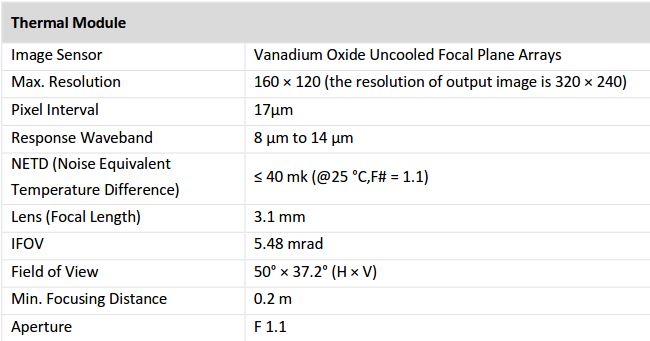

DS-2TD2617B-3/PA Thermal Module

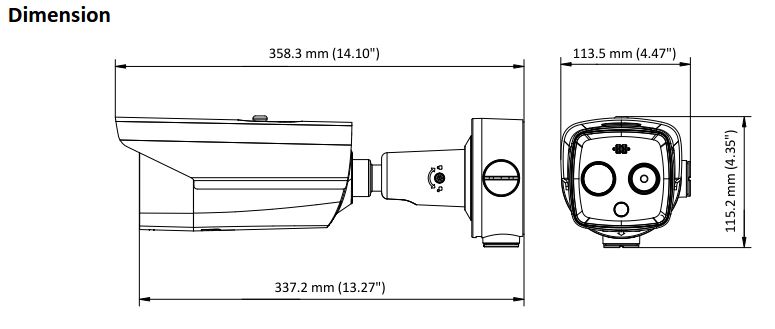

DS-2TD2617B=-3/PA

Additional Information

Weight 1760.0000
Image chip size 1/2.7"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Two-way
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome Thermal Imaging
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2688 X 1520
Min. low-light lux 0.002
Supply Volts 12V DC or PoE
Lens Mount N/A
Lens Focal Length 4mm
Viewing Angle 84° Horizontal Field of View
Aspect ratio 16:9
Supplied with lens Yes
IR Range Up to 40m
Max. Images per second 25
Power Consumption max.7.5W
Warranty 1 Year
Launch Date March 2020
Focal Length 2.1mm
