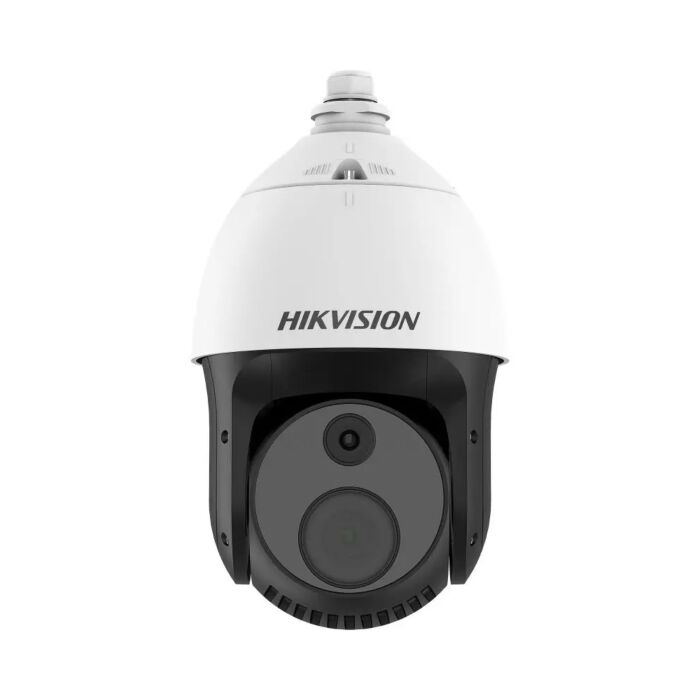

Hikvision DS-2TD4228-10/S2 Thermal and Optical Bi-spectrum Network Speed Dome
SKU: DS-2TD4228-10/S2
Contact Us for Stock Levels
Key features:
- Thermal Module 256x192 resolution, Optical Module 2688x1520 resolution
- Temperature exception alarm for fire prevention
- Fire detection algorithm
- Perimeter protection functions: Line crossing, intrusion, region entrance and exit
- PTZ Specs - Pan - 360° (continuous) | Tilt: From -5° to + 90° (auto flip) |
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smoke detection for fire prevention
- Wide Dynamic Range (WDR) up to 120dB
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Alarm Input/Output - 7-ch Input (0 to 3.3 VDC) / 2-ch Relay Output (with configurable alarm response actions)
- Alarm Actions - Preset, Patrol scan, Pattern scan, SD Recording, Relay output, Smart capture, FTP upload, Email linkage
- Ingress Protection Rating - IP66
This product can be powered by 24V AC, 36V DC, 48V DC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision DS-2TD4228-10/S2 User Manual
Hikvision DS-2TD4228-10/S2 Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2TD4228-10/S2 is a PTZ camera that offers an optical Bi-spectrum design (utilising both a Thermal module and an Optical module) and is equipped with a highly accurate temperature exception alarm.
The DS-2TD4228-10/S2 is equipped with a built-in GPU which supports an intelligent perimeter protection algorithm and real-time alarm. It can also realise high-precision VCA detection. This is then all applied to perimeter protection and fire prevention purposes, helping users discover unexpected events quickly and preventing damage to property.
With a deep learning algorithm, the DS-2TD4228-10/S2 also offers high precision VCA detection and real-time alarm, so users can always feel that their property is being kept as secure as possible, and know that they will be alerted to react to incidents as soon as possible.
The DS-2TD4228-10/S2 can be applied to manufacture process supervision of pyrophoric materials in factories, electric substations, and hydropower stations.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 240m - Humans (1.8 x 0.5 m) - 80m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (0.5 x 0.5 m) - 83m - Object (0.2 x 0.2 m) 33m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.
Temperature Range - -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy - ± 8°C (± 14.4°F)
- Fire Detection: Object (2 x 2 m) - 833m - Object (1 x 1 m) - 417m
Is equipped with dynamic fire detection, with up to 10 fire points detectable.
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 1278m - Humans (1.8 x 0.5 m) 417m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 319m - Humans (1.8 x 0.5 m) 104m - In order to classify, the object (Animal, Human, Vehicle, ect) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 160m - Humans (1.8 x 0.5 m) 52m - In order to identify and describe it in details, the object must be covered by 12, or more, pixels.
Dimensions:
