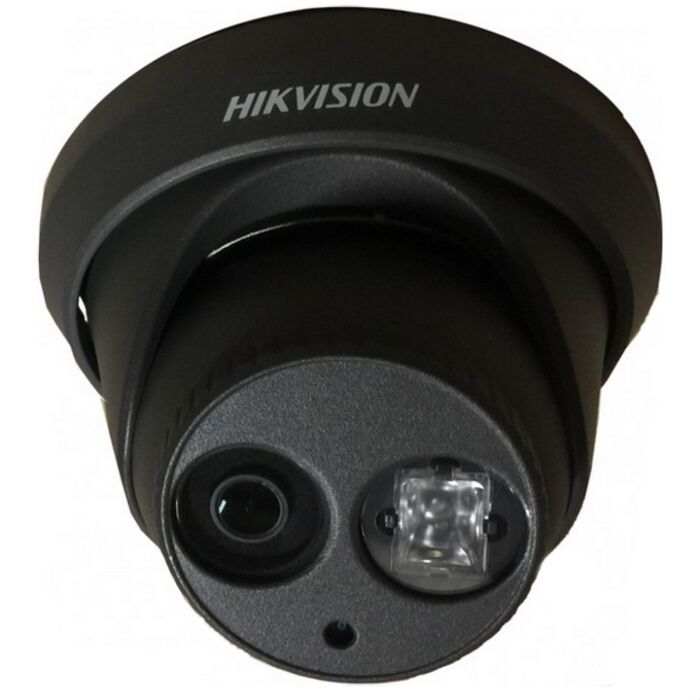

Hikvision DS-2CD2322WD-I/B 2MP 2.8mm Black EXIR Turret Network Camera

Availability: Out of stock

£114.00 Incl VAT Excl VAT. £95.00

Hikvision DS-2CD2322WD-I/B-eol

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


This product is now End of Life - May we recommend the DS-2CD2343G0-I or please feel free to browse the Hikvision category.

The Hikvision DS-2CD2342WD-I is a 4MP turret network camera, with 3-axis lens adjustment and separately housed EXIR LEDs for excellent night time recording. It comes housed in an IP66 rated body, making it resistant to harsh weather conditions and suitable for use both indoors and outside.

By housing the IR LEDs separately from the camera lens, the DS-2CD2342WD-I greatly reduces the risk of internal reflections that can muddy the images of some cameras in night-vision recording. The use of EXIR also helps ensure a uniform illumination of the scene, and makes hotspots of blown-out images less likely.

This camera supports the use of Hikvision's H.264+ video codec, which can reduce bandwidth and storage requirements by up to 50% over H.264, without any loss of image quality. It can also be powered with a single network cable via PoE, which lowers installation and maintenance costs and makes set-up even easier.


PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

Hikvision Product Catalogue Hikvision Quick Guide Hikvision R6 Catalogue User Manual


Product Datasheets

Hikvision DS-2CD2322WD-I/B 2MP 2.8mm Black EXIR Turret Network Camera Datasheet (0.30MB)


This camera has been superseded by a camera from the EasyIP 2.0+ which was released in June 2018 - DS-2CD2343G0-I

R6 Family Banner


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Key Features

- 2MP Resolution
- Available in 2.8mm focal length
- 120dB Wide Dynamic Range
- Backlight compensation
- Up to 30M IR range with high performance EXIR LEDs
- IP66 rated weather-proof housing

2322 banner


2.8mm - Horizontal field of view: 109°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


Hikvision IP Camera Codes
Hikvision IP Camera Codes

Additional Information

Weight 670.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.264/MJPEG/H.264+
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount M12 mount
Lens Focal Length 2.8mm
Viewing Angle 109° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max.7.5W
Warranty 3 Years
Launch Date Spring 2018
