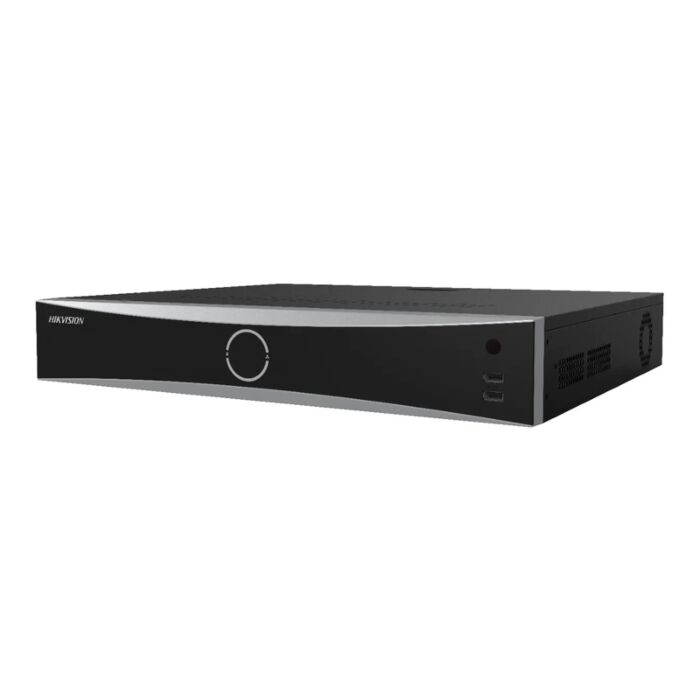

Hikvision DS-7716NXI-K4/16P 16-channel 1.5U 4K PoE K-series AcuSense Network Video Recorder
SKU: DS-7716NXI-K4/16P~EOL
Out of stock
The DS-7716NXI-K4/16P is now End of Life.
We recommend the DS-7716NXI-K4/16P(D) as a suitable replacement.
Key Features:
- Supports up to 16-channel IP Camera Inputs
- Supports Plug-and-Play with 16 PoE Interfaces
- Up to 1-ch at 12MP, 2-ch at 8MP, 4-ch at 4MP, or 8-ch at 1080p Decoding Capacity
- Alarm In/Out - 16/4
- Equipped with Hikvision AcuSense technology - minimizes manual effort and security costs
- Smart Functions - Motion Detection, Video Analysis, Face Recognition, and Smart Search
- 4 SATA Interfaces for HDD Connection (up to 10TB)
- Supports 16-channel Synchronous Playback
- Interfaces - x1 self-adaptive RJ-45 10/100/1000 Mbps Ethernet, x2 RS-485 (half-duplex), x1 RS-232, and, x2 USB 2.0 (front) / x1 USB 3.0 (back)
- Supports Hik-Connect for easy Network Management
- Two-Way Audio, and 1-channel Audio Output
- Operating Temperature: -10°c ~ 55°c | Humidity: 10% ~ 90%
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple Series HDD or Toshiba HDDs for this product.
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for current stock levels.
Hikvision K-Series AcuSense NVRs User Manual
Hikvision NVR Quick Start Guide
Hikvision NVR Communication Matrix
Details
The DS-7716NXI-K4/16P is a 16-channel Network Video Recorder from Hikvision, that was designed as part of the K-series of NVRs, featuring AcuSense technology.
Performance:
Video Output - Provides simultaneous HDMI and VGA outputs (HDMI video output at up to 4K image resolution)
Storage and Playback - Features 4 SATA interfaces for HDD connection (supports up to 10TB), and 16-channel synchronous playback.
Network and Ethernet Access - Designed with 16 independent PoE network interfaces, and 1 self-adaptive 10/100/1000 Mbps Ethernet interface.
Reliability - Supports H.265+ compression (for storage efficiency - reduces storage space by 75%) and stream over TLS encryption (for a more secure stream transmission service)
Bandwidth - 160 Mbps Incoming / 160 Mbps Outgoing
AcuSense / Smart Functions:
As a part of the AcuSense K-series, the DS-7716NXI-K4/16P offers a cost effective NVR solution with built-in support for AI capabilities (Hikvision AcuSense technology). This allows for support for the following Smart functions:
Motion Detection 2.0 - supported by all channels, at 4MP resolution (up to 8MP when SVC mode is enabled)
Perimeter Protection - 2-channels, at 4MP resolution (by device) / all channels (by camera)
Video Analysis - 2-channels, for human and vehicle recognition (works to reduce false alarms)
Facial Recognition - 1-channel for video stream /or 2-channel for face picture. (please see the table below for more information)
| Facial Detection / Analytics | Supports; Face picture comparison, Human face capture, and, Face picture search. |
| Face Picture Library | Up to 16 libraries, with up to 20,000 face pictures in total. (pictures are <4MB, the total capacity is 1GB) |
| Facial Detection Performance | Supports 1-channel, at 8MP resolution |
| Face Picture Comparison | 4-channels |
Smart Search - for selected areas in video.
Smart Playback - for improved playback efficiency.

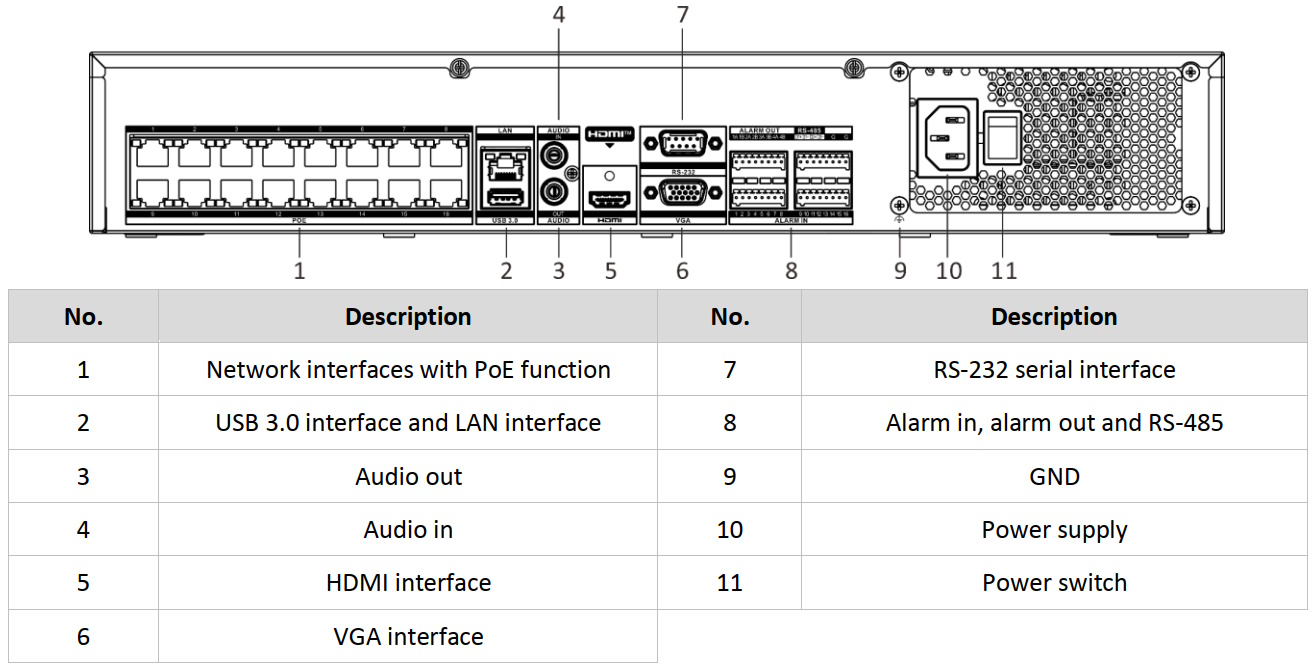

Interfaces:
Dimensions:
