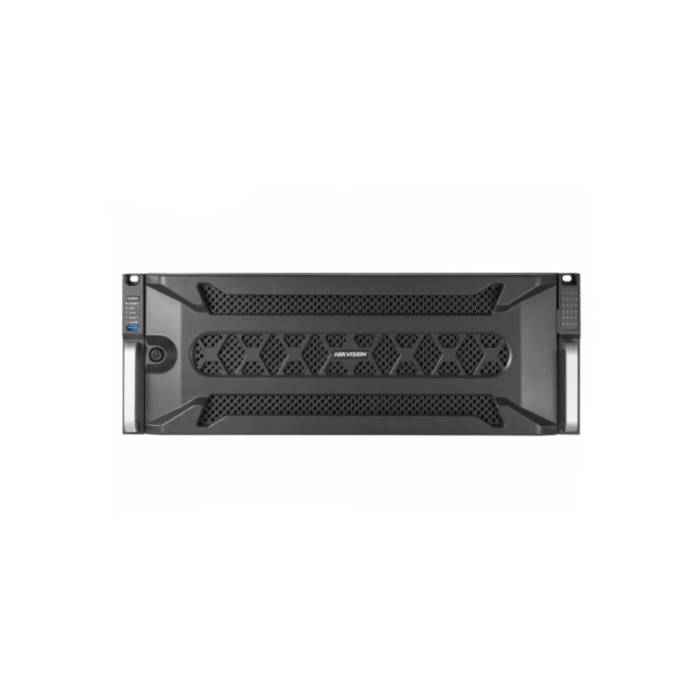

Hikvision DS-96256NI-I24/H 256 Channel Network Video Recorder with Decoding Board
The Hikvision DS-96256NI-I24/H is a 256 channel NVR with space for 24 hard drives. It can support cameras with up to 12MP resolution. This NVR has 2 x HDMI outputs, one of which can be used as the auxiliary output. It also has an audio I/O and USB 3.0 outputs.
The DS-96256NI-I24/H is designed to provide a centralized solution for up to 256 IP cameras and can be used used with third party cameras. It has the ability to be used with smart cameras and supports VCA such as face detection, behaviour analysis and more.
This NVR is extremely versatile as it supports RAID and HDD quota so that it can be configured to be suitable for a range of applications. It also houses a built in decoding board with 6 HDMI outputs capable of decoding 48 channels.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Max. HDD support - 240TB (24 x 10TB)
Max: supported IP cameras - 256
Max: Megabits per second (Mbps) - 768
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple HDDs for this product.
Hikvision Product Catalogue Hikvision Quick Guide Hikvision DS-96256NI-I24/H User Manual Hikvision DS-96256NI-I24/H Quick Start Guide
Breaking News Friday 10th November: HikVision have released a significant V4 firmware update for -I NVRs. It is not yet clear whether -K NVRs will also receive this update. For further information & updates please click here
Useful Hikvision Tools
- 256 channels - 24 SATA interfaces - Supports up to 12MP cameras - H.265+/H.265/H.264+/H.264 - Connectable to third-party IP cameras - HDMI 1 and VGA work as the main output - HDMI 2 works as the auxiliary output - Outputs up to 4K resolution - Supports up to 20 channels at 1080p resolution - Supports HDD hot swap with RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60 and JBOD storage - 4 self-adaptive 10M/100M/1000M network interfaces - Supports ANR - Supports HDD quota and group modes - Includes decoding board
|Number of Channels||256|
|Incoming Bandwidth||768 Mbps|
|Outgoing Bandwidth||768 Mbps|
|Number of Bays||24|
|Front USB||1 x USB 2.0|
|Rear USB||2 x USB 3.0|
|ANR (Automatic Network Recover)||Yes|
|HDD Capacity Supplied||0GB (Hard Disk Drives sold seperately to demand)|
|Maximum Memory Capacity||288TB|
|HDD Hot Swap||Yes|
|Hot Spare||N+1 Hot Spare|
|Dimensions||447 x 528 x 172mm|
|Launch Date||May 2018|
