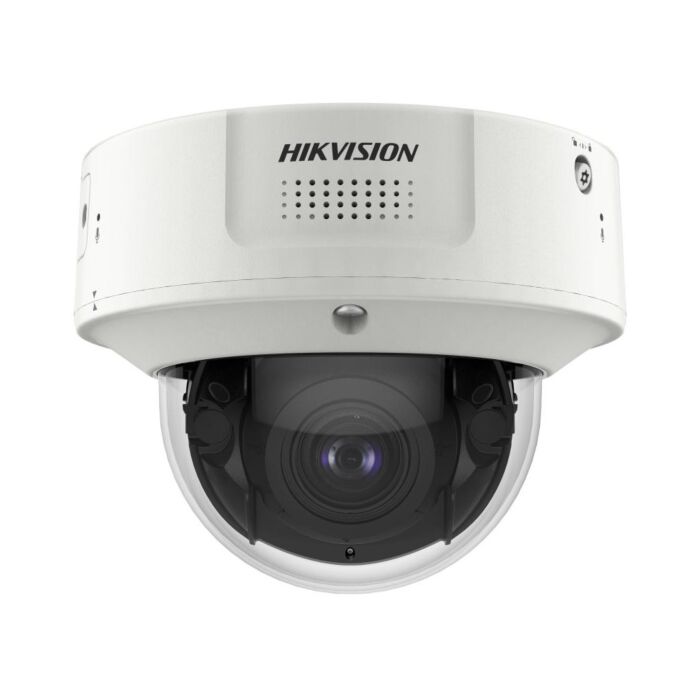

Hikvision iDS-2CD7146G0-IZS(D) 4MP DeepinView Outdoor IR Varifocal Dome Camera
SKU: iDS-2CD7146G0-IZS(D)
Contact Us for Stock Levels
Key Features:
- High-quality 4MP resolution
- Excellent low-light performance
- Darkfighter Technology
- Clear imaging against strong backlight
- 140dB WDR technology
- Efficient H.265+ compression
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67)
- Vandal-resistant (IK10)
This product can be powered by 12V DC, 24V AC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision iDS-2CD7146G0-IZS Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock and so could incur a lead time.
Please contact us before purchasing for current stock levels.
Useful Hikvision Tools
SADP Download
IE Tab Download
Hik-Connect
Details
The Hikvision iDS-2CD7146G0-IZS is a 4-megapixel outdoor varifocal dome camera that is part of the DeepinView series of cameras. The camera is also equipped with Hikvision's DarkFighter technology which enables the camera to provide excellent low-light performance making the iDS-2CD7146G0-IZS ideal for use in both light and dark scenarios.
Camera Functions
Face recognition:
Deep learning-based algorithms enable the camera to give the best shot of a target face through detecting, tracking, capturing, grading and selecting. The iDS-7A46G0-IZHS captures faces and outputs features such as gender, age and expression. The face exposure function allows the camera to dynamically adjust face area exposure of captures and ensures high face picture quality.
Perimeter Protection:
Target detection and classification algorithms enable the camera to perform perimeter protection, monitoring the actions of line crossing, intrusion, region entrance and region exiting. These algorithms are able to prevent false alarms caused by items such as leaves, lights, animals, etc.
Multi-Target-Type Recognition:
The camera is able to differentiate between faces, human bodies, and vehicles within a specified region. It is also able to output features such as gender, age, clothing colour, and vehicle type.
The iDS-2CD7146G0-IZS comes with a choice of lens, users can select between:
- 2.8mm ~ 12mm ~ 107.4° ~ 39.8° Horizontal Field of View ~ IR distance up to 30m
- 8mm ~ 32mm ~ 42.5° ~ 14° Horizontal Field of View ~ IR distance up to 50m
This enables users to select whichever lens best suits their requirements. If they require a wider area of coverage then the 2.8~12mm is the more appropriate lens, whereas if a narrower field of view is required then the 8~32mm option will be better suited.
DORI refers to 'how far' a camera will see, the table below shows a rough guide for this:
| DORI | Detect | Observe | Recognise | Identify |
| Wide 2.8~12mm | 61.5m | 24.4m | 12.3m | 6.2m |
| Wide 8~32mm | 150.3m | 59.7m | 30.1m | 15m |
| Tele 2.8~12mm | 151.7m | 60.2m | 30.3m | 15.1m |
| Tele 8~32mm | 400m | 158.7m | 80m | 40m |
