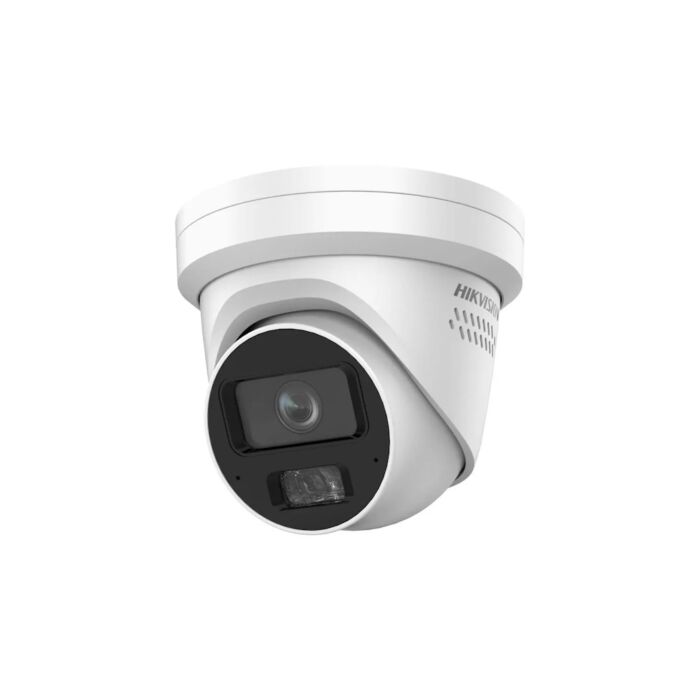

Hikvision iDS-2CD7347G0-XS 4MP DarkFighterS DeepinView Fixed Turret Network Camera
SKU: iDS-2CD7347G0-XS
Contact Us for Stock Levels
Key features:
- 4MP (2688x1520) Image Resolution, at up to 30fps
- Fixed Lens - 2.8mm or 4mm
- Angle Adjustment - 0°~355° Pan / 0°~65° Tilt / 0°~360° Rotate
- Hybrid (IR and White Light) Illuminator - up to 40m
- IR Wavelength - 850nm
- Image Enhancement - BLC, HLC, 3D DNR, Defog, 140dB WDR, EIS
- Deep Learning Functions - supports Face Capture, People Counting, Queue Management, Heat Map, Metadata, Perimeter Protection, and On/Off Duty Detection
- Scalable Video Coding (SVC) - H.264 and H.265
- Supports Target Cropping and 4 fixed Regions of Interest (ROI) per stream
- Mono-sound Audio, with support for Environment Noise Filtering
- Alarm I/O - 1 Input, 1 Output
- Supports simultaneous Live View for up to 20 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- Operating Conditions - Temperature: -30°c ~ 60°c | Humidity: 95% or less (non-condensing)
- Supports Demist
- IP67 Ingress Protection for water and dust resistance
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The iDS-2CD7347G0-XS is a 4MP resolution Turret camera, from Hikvision, designed as part of the DeepinView series, equipped with DarkFighterS technology and Deep Learning functions.
DarkFighterS - Is a Hikvision technology designed to improve a camera's low-light performace. With DarkFighterS the iDS-2CD7347G0-XS is capable of excellent visibility and image quality in scenes with challenging lighting conditions.
This is further improved by the camera's selection of supported image enhancement technologies. These include; BLC (backlight compensation), HLC (highlight compensation), 3D DNR (3D noise reduction), defog, WDR (wide dynamic range), and EIS (electronic image stabalisation)
Events and Alarm Linkage:
Basic Events - Motion detection, Video Tampering alarm, Video Quality diagnosis, Exception detection (network disconnected, IP address conflict, Illegal login, Abnormal restart, HDD full, HDD error, Vibration detection)
Smart Events - Scene Change detection, Audio Exception detection, Defocus detection.
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audiable warning.
Deep Learning Functions:
Face Capture - Detects up to 60 faces simultaneously. Supports swing left and right (from -60° to 60°), tilt up and down (from -30° to 30°), as well as, upload of face with background and close-ups.
People Counting - Supports crossline counting, display, and export of people-flow data (entering and exiting - data stored in the flash). Real-time people flow is displayed on screen, and supports real-time uploading by statistic cycle.
Queue Management - Supports up to 8 detection regions, an independent arming schedule, and linkage method. Supports 2 detection modes (includes; regional people queuing up, waiting time detection) and generates reports to compare the efficiency of different queues.
Heat Map - A graphic description of visits calculating the amount of people or dwell time in a configured area. Two report types are available; Space heat map and Time heat map line chart.
Perimeter Protection - Line crossing, Intrusion, Region Entrance, and, Region Exiting detection. Supports alarm triggering by specified target types (human and vehicle)
Metadata - Intrusion, Line crossing, Region Entrance, and, Region Exiting detection.
On/Off Duty Detection - Supports up to 8 detection regions, and independent arming schedule and linkage method. It also supports 2 detection modes (Absence detection and On/Off Duty detection) and parameter settings (Person on duty and Absence duration)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8mm | 61.5m | 24.4m | 12.73m | 6.2m |
| 4mm | 72.1m | 28.6m | 14.4m | 7.2m |

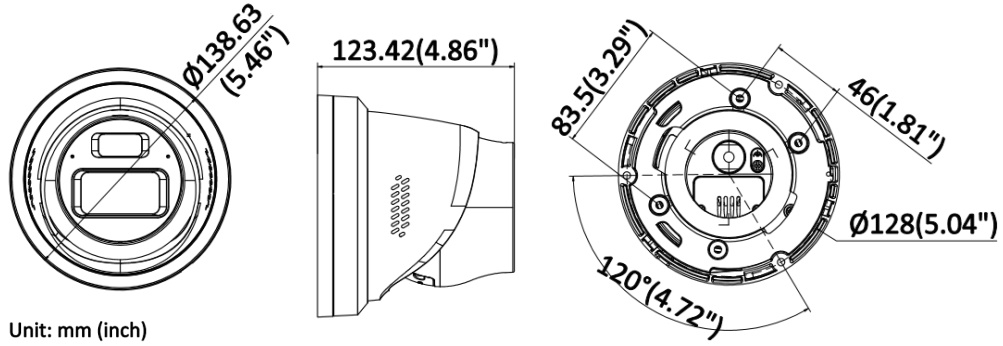

Dimensions:
