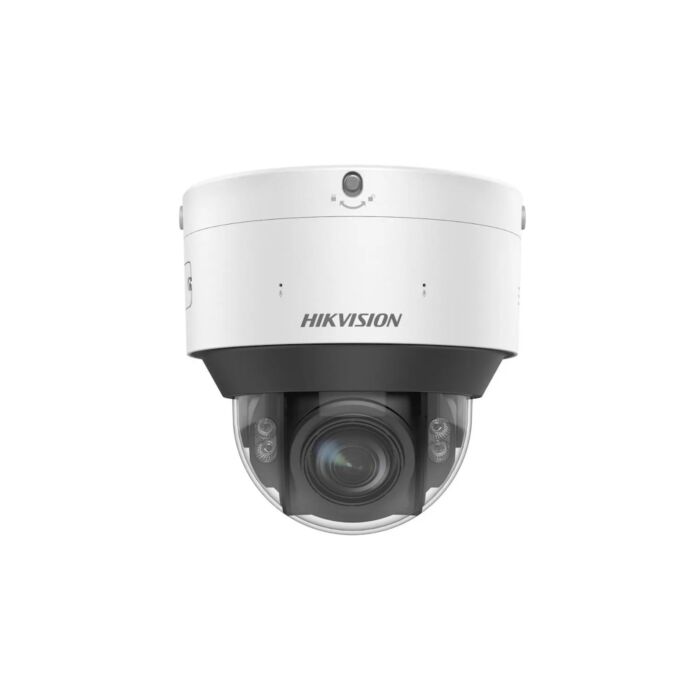

Hikvision iDS-2CD7587G0-XZHSY 8MP DarkFighterS DeepinView Outdoor Motorised Varifocal Dome Camera
SKU: iDS-2CD7587G0-XZHSY
Contact Us for Stock Levels
Key features:
- 8MP (3840x2160) Image Resolution, at up to 30fps
- Supports Scalable Video Coding (SVC) - H.264 and H.265
- 2.8~12mm P-Iris Lens, with support for Auto, Semi-Auto, and Manual Focus
- Angle Adjustment - 0° to 355° Pan / 0° to 85° Tilt / 0° to 355° Rotate
- Hybrid (IR and White Light) Illumination - up to 30m
- IR Wavelength - 850nm
- Image Enhancement - BLC, HLC, 3D DNR, Defog, EIS, 140dB WDR
- Day and Night, IR cut filter and Blue Glass module
- DeepinView | Features a range of Deep Learning functions
- AI Open Platform - up to 4 models | Model type - detection, classification, mixed
- Supports Target Cropping and 4 fixed Regions of Interest (ROI) per stream
- Simultaneous Live View for up to 20 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- Operating Conditions - Temperature: -40°c ~ 60°c | Humidity: 95% or less (non-condensing)
- Built-in Heater and support for Demist
- IP67 Ingress Protection for water and dust resistance
- IK10 Impact Rating for vandal resistance
This product is powered by 24V AC, 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The iDS-2CD7587G0-XZHSY is a 8MP resolution Dome camera, from Hikvision, designed as part of the DeepinView series, equipped with DarkFighterS technology and Deep Learning functions.
DarkFighterS - Is a Hikvision technology designed to improve a camera's low-light performace. With DarkFighterS the iDS-2CD7587G0-XZHS(Y) is capable of excellent visibility and image quality in scenes with challenging lighting conditions.
This is further improved by the camera's selection of supported image enhancement technologies. These include; BLC (backlight compensation), HLC (highlight compensation), 3D DNR (3D noise reduction), defog, WDR (wide dynamic range), and EIS (electronic image stabalisation)
Events and Alarm Linkage:
Basic Events - Motion detection, Video Tampering alarm, Exception detection (network disconnected, IP address conflict, Illegal login, Abnormal restart, HDD full, HDD error), Video Quality diagnosis, Vibration detection.
Smart Events - Line crossing detection, Intrusion detection, Region Entrance detection, Region Exiting detection, Audio exception detection, Scene change detection, Defocus detection.
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audiable warning.
Deep Learning Functions:
Multi-Target-Type Detection - Supports simultaneous detection and capture of human body, face, and vehicle. Can detect up to 7 face features, 13 human body features, and 2 vehicle features.
Face Capture - Detects up to 60 faces simultaneously.
Face Comparison - Supports up to 10 face libraries, with up to 30,000 faces per library. 150,000 faces in total. It also supports face library encryption.
People Counting - Supports crossline people counting, display, and exporting of people-flow data (entering and exiting - data stored in the flash). Real-time people flow data is displayed on screen.
Queue Management - Supports up to 8 detection regions, an independent arming schedule, linkage method, and 2 detection modes (regional queuing up and waiting time detection). It also generates reports to compare the efficiency of different queues, and displays a queue's changing status.
Heat Map - A graphic description of visits, calculating the amount of people or dwell time in a configured area. Supports 2 report types (Space heat map and Time heat map line chart).
Hard Hat Detection - Detects up to 30 human targets simultaneously, and supports up to 4 sheild regions.
Metadata - Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Face capture, Multi-target-type detection.
Regional People Counting - Supports up to 8 detection regions, 3 detection modes (people density detection, number of people exception detection, waiting time exception detection), and, parameter settings (alarm times per exception, alarm interval, first alarm delay).
On/Off Duty Detection - Supports up to 8 detection regions, 2 detection modes (absence detection, on/off duty detection), and, parameter settings (person on duty, absence duration)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Distance (Wide) | 63.4m | 25.2m | 12.7m | 6.3m |
| Distance (Tele) | 140.7m | 55.8m | 28.1m | 14.1m |

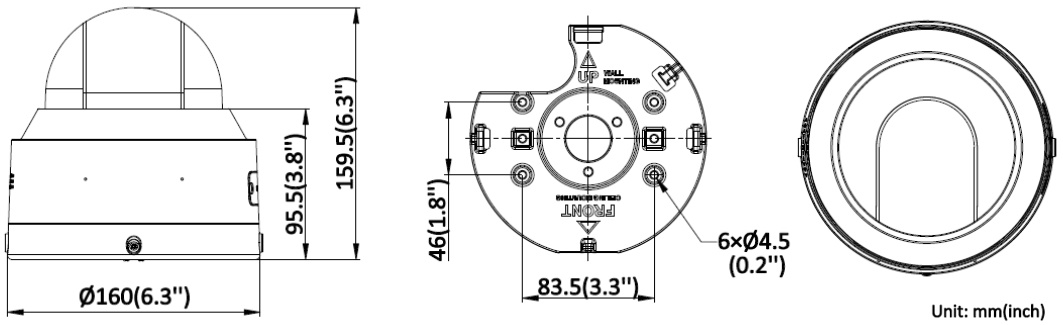

Dimensions:
