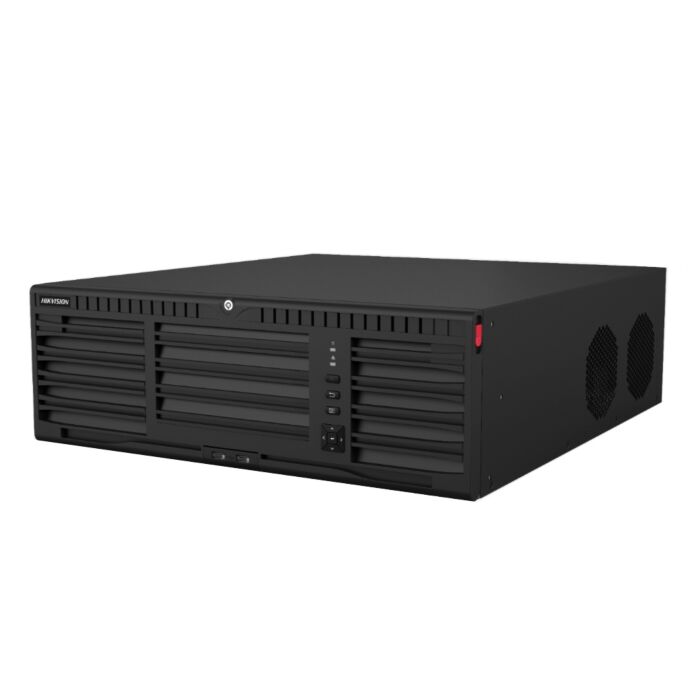

Hikvision DS-9664NI-M16 64-channel 3U 8K M-Series Network Video Recorder
SKU: DS-9664NI-M16
In stock
Key Features:
- 3U Chassis Design
- Up to 64-channels (IP Camera Inputs) with 16-ch synchronous playback
- Up to 32-ch@1080p Decoding Capacity
- HDMI Video Output, at up to 8K or Dual 4K Resolution
- Supports Advanced Streaming Technology - for smooth live view, even in poor network conditions
- H.265+ / H.265 / H.264+ / H.264 Video Formats
- Up to 400Mbps Incoming and Outgoing Bandwidth
- 16 SATA / 1 eSATA Interfaces for HDD connection, and 2 self-adaptive 10/100/1000 Mbps Ethernet Interfaces
- Support for a range of VCA (video content analysis) Events
- Power Consumption - < 50W (without HDD)
- Supports RAID 0, 1, 5, 6, 10, and N+M hot spare - for reliable data storage, avoiding data loss risks
- Working Temperature - -10°c ~ 55°c
- Power Supply - 100 to 240V AC

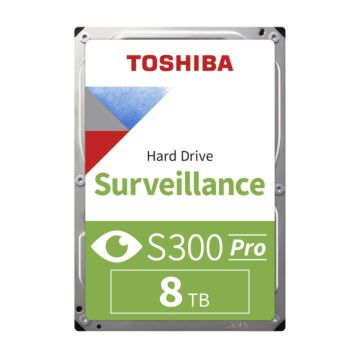

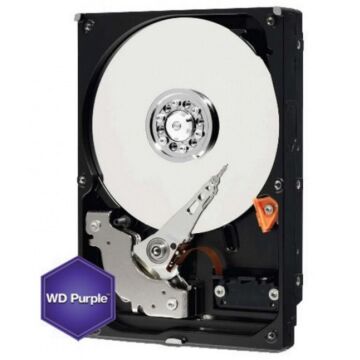

Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple Series HDD or Toshiba HDDs for this product.
January 2023 - WD Purple HDDs over 18TB are NOT compatible with Hikvision NVRs
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for current stock levels.
Hikvision M-Series NVRs User Manual
Hikvision M-Series NVRs Quick Start Guide
Details
The DS-9664NI-M16 is a 64-channel Network Video Recorder (NVR), from Hikvision, with a 3U chassis design, equipped with a wide selection of interfaces (for HDD connection and Ethernet), smart functions and impressive performance specs.
As a part of the M-Series of NVRs, the DS-9664NI-M16 is designed to offer users a reliable and effective network video recorder, making its a perfect addition to any Hikvision security setup.
Performance
Alongside its offer of up to 64-channels,16-ch syncronous playback, and use of smart functions (more information below) the DS-9664NI-M16 offers impressive performance and reliability, with a range of features designed to give users the best NVR experiance possible.
- H.265+ compression - to effectively reduce storage space (by up to 75%)
- Dual-stream recording - to save bandwith
- Stream over TLS Encryption technology - provides users with a secure stream transmission service
- Support for Double Verification (for playback and downloading)
- 2 self-adaptive 10/100/1000 Mbps Ethernet intefaces
- Up to 16 SATA Interfaces for HDD connection (with up to 14 TB capacity per HDD)
- Use of Hik-Connect and DDNS (Dynamic Domain Name System) - for easy Network management
- Smooth Streaming technology and support for Web-access, without plug-in
Smart Functions
The DS-9664NI-M16 also offers users a range of Smart functions, from support for multiple VCA (Video Content Analysis) events to POS (including; POS information overlay, on both live view and playback, and POS triggered recording and alarm) making it a highly effective inclusion to your security system setup.
Supported VCA Events:
- Motion, Line-crossing, and Intrusion Detection
- Heat-Map
- ANPR (Automatic Number-Plate Recognition)
- People Counting

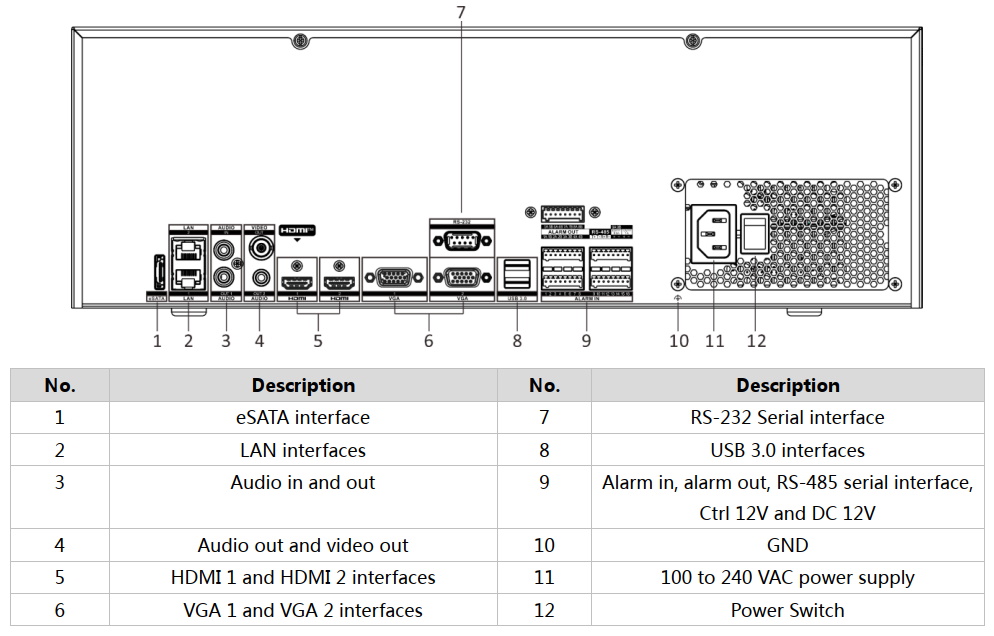

Interface:
Dimensions:
