Hikvision DS-KD-TDM Door Station - Touch Display module with Mifare Card Reader
SKU: DS-KD-TDM
In stock
Key Features:
- Modular Door Station - Touch and Display module
- Supports Surface or Flush mounting
- Features a 4-inch touch screen, and Mifare card reader
- Touch Screen | Type - IPS | Size - 4-inch | Resolution - 480 x 480 |
- Card Reader | Frequency - 13.56 MHz | Distance - 2 cm |
- 32MB ROM, 128 MB RAM
- Power Consumption - <10W
- Supports - Dial number display, Pin code, Card Unlock, Contact list, and Advertisement display
- Ingress Protection - IP65 for Water and Dust Resistance
- Impact Rating - IK8
- Working Temperature - -20°c ~ 60°c | Working Humidity - 10% ~ 95%
- Supports Multiple Languages
This Product is powered by 12V DC (supplied by the main module)
Please note: this product does not come with a power supply
Users should note that this Door Station does not come supplied with a mounting Bracket. This will need to be bought separately.
The DS-KD-TDM supports both Surface and Flush mounting.
Hikvision DS-KD-TDM Quick Start Guide
Hikvision DS-KD-TDM User Manual
Details
Hikvision's DS-KD-TDM is a modular Door Station, equipped with a 480 x 480 resolution 4-inch touch screen, and Mifare card reader. Equipped for use in outdoor applications, its design also features IP65 and IK8 rated protection (for water, dust and vandal resistance) as well as support for either Surface or Flush mounting brackets.
With support for both Card Reading and Pin Codes, the DS-KD-TDM offers users a choice of two main door entry security measures, alongside its other features (these include: Dial number display, Contact list, and Advertisement display). With its Touch and Display module design, the DS-KD-TDM is capable of a range of key features, and can add an additional, and impressive, layer of security to any intercom / video surveillance system.
Interface - Design Overview

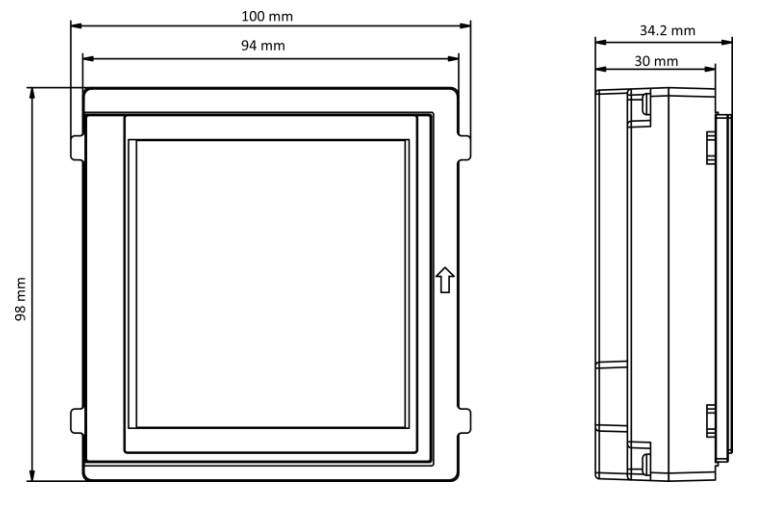

Dimensions - (w x h x d) 100mm x 100mm x 35mm
