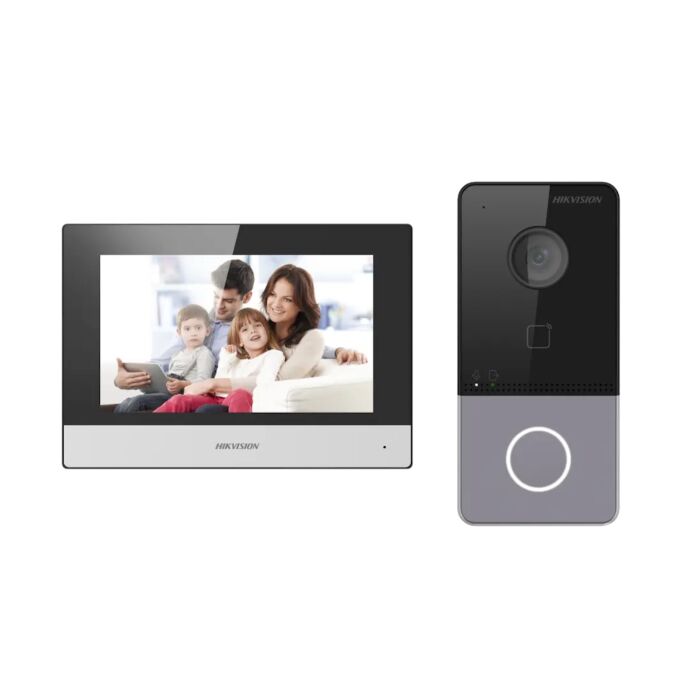

Hikvision DS-KIS603-P(C) IP Video Intercom Kit
SKU: DS-KIS603-P(C)
In stock
This Kit includes; x1 DS-KV6113-WPE1(C), x1 DS-KH6320-WTE1, and, x2 PSU
For more information on these individual products, please see their product pages - found on this page under 'Related Products'
Key Features:
- IP Video Intercom Kit - One Button for easier calls
- Designed for Easy and Cost-efficient Installation - WiFi and PoE supported
- Supports convenient Hik-Connect App mobile control
Door Station Features
- High Quality 2MP Image Resolution
- Night Vision - with Low Illumination IR supplement mode (up to 3m)
- Supports BLC, DNR, and TrueWDR
- Field of View - 131° horizontal, 78° vertical
- Features support for Motion Detection
- Installation - Surface mounting
- Supports configuration through WEB Interface
- Two-way Audio - built-in Omnidirectional Microphone and Loudspeaker
- IP65 Water Resistance - equipped for outdoor use
Indoor Station Features
- 7-inch Touch screen, with user-friendly Interface and Plug & Play design
- Receives Video Calls and Unlocks on mobile app
- Supports Live View of up to 16 IP Cameras
- Interfaces - x1 RS-485, x8ch Alarm Inputs, x2 Relay Outputs
- Supports TF Card (max. 32G, SD 2.0 or lower version)
Details
The DS-KIS603-P(C) Video Intercom Kit offers a selection of Hikvision products in a pre-prepared bundle, fit for an effective intercom / door entry system setup.
Indoor Station
The DS-KH6320-WTE1 Indoor Station offers a 7-inch clour TFT screen, with 1024 x 600 resolution and capacitive touch technology.
General Specs -
- Working Temperature - -10°c ~ 55°c
- Power Consumption - <6W
Audio Parameters -
- Audio Input - Built-in omnidirectional Microphone - Output - Built-in Loudspeaker
- Audio Quality - Noise Suppression and Echo Cancellation
- Audio Compression rate - 64 Kbps
Device Interfaces -
- x1 RS-485, x8 Alarm inputs, x2 Relay outputs
Door Station
The DS-KV6113-WPE1(C) Door Station offers a Surface Mount Installation design, fit for outdoor use, with IP65 water resistance, and support for both WiFi and PoE.
General Specs -
- Working Temperature - -40°c ~ 53°c
- Ingress Protection - IP65
- Power Supply - IEEE 802.3 af, Standard PoE, or, 12 VDC
- Power Consumption - <10W
Audio Parameters -
- Audio Input - Built-in omnidirectional Microphone - Output - Built-in Loudspeaker
- Audio Quality - Noise Suppression and Echo Cancellation
- Audio Compression rate - 64 Kbps
- Audio Intercom - Two-way Audio Communication
Device Interfaces -
- x1 RS-485, x4 Alarm inputs, x1 Debugging port, x1 Grounding, x1 TAMPER switch
Dimensions:
