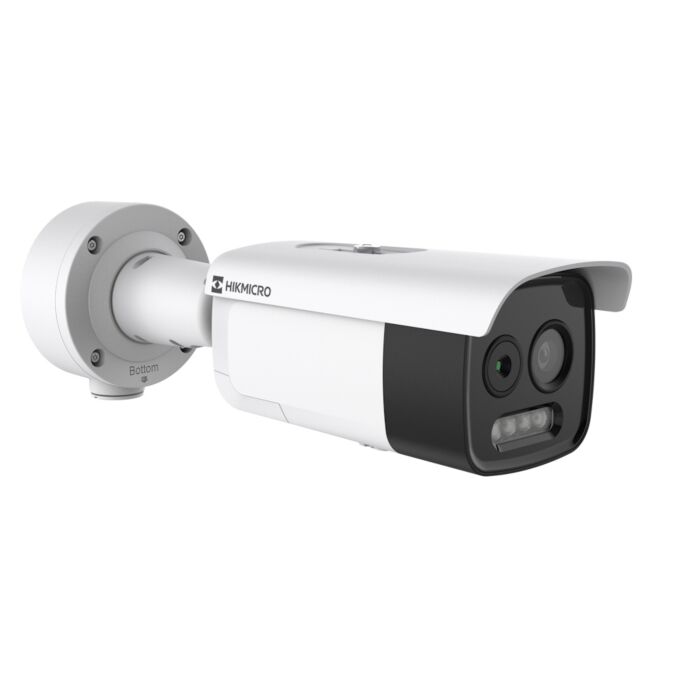

Hikvision HM-TD2628-7/G1/T3A Thermal & Optical Bi-Spectrum Network Bullet Camera
SKU: HM-TD2628-7/G1/T3A
Contact Us for Stock Levels
Key features:
- Thermal Module 256x192 resolution, Optical Module 2688x1944 resolution
- Video content analysis: vehicle/human classification
- Guanlan AI model for perimeter protection, reducing false alarms
- Smart Hybrid Light: Integrates IR and White Light; 3 Supplemental Lighting Modes
- Temperature exception alarm for fire prevention
- Supports smoking detection algorithm
- Supports fire point algorithm
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- High-quality detector with 10 years warranty
- Alarm Output - 2-ch Relay Output (with configurable alarm response actions)
- Alarm Actions - SD recording, Relay output, Smart capture, FTP upload, Email linkage
- Ingress Protection Rating - IP67
- Impact Rating - IK10
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision HIKMICRO Thermal & Optical Bi-Spectrum Network Camera User Manual
Hikvision HIKMICRO Thermal Bullet Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision HM-TD2628-7/G1/T3A Thermal & Optical Bi-Spectrum Bullet Camera supports video analysis based on the Guanlan Large Scale AI model for perimeter protection, and temperature exception alarm. With the deep learning algorithm, it can realise high-precision VCA detection and real-time alarm. This camera can be applied to villas, communities, car parks, warehouses, construction sites, and more.
Smart Hybrid Light allows users to select between IR, White Light, and Smart lighting modes to suit their best requirements. In Smart mode, the cameras maintain infrared illumination until an event triggers colour imaging to capture critical details.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 207m - Humans (1.8 x 0.5 m) - 84m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (1 x 1 m) - 116.7m - Object (0.2 x 0.2 m) - 23.3m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total.
Temperature Range - -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy - ± 8°C
- Fire Detection: Object (0.5 x 0.5 m) - 48m
Is equipped with dynamic fire detection, with up to 10 fire points detectable.
- Smoking Detection: - 10.35m
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 881m- Humans (1.8 x 0.5 m) 287m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 220m - Humans (1.8 x 0.5 m) 72m - In order to classify, the object (Animal, Human, Vehicle, etc) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 110m - Humans (1.8 x 0.5 m) 36m - In order to identify and describe it in detail, the object must be covered by 12, or more, pixels.

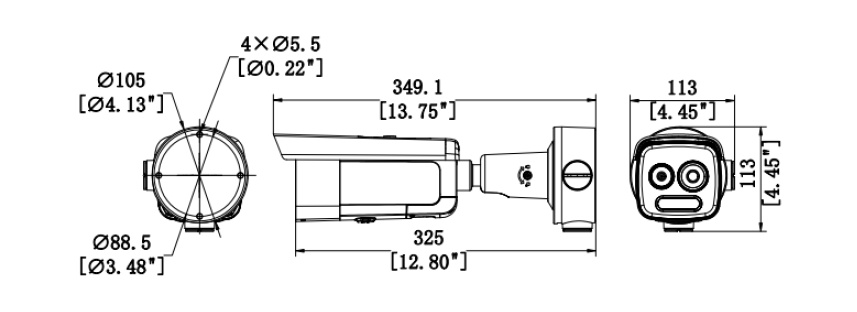

Dimensions:
