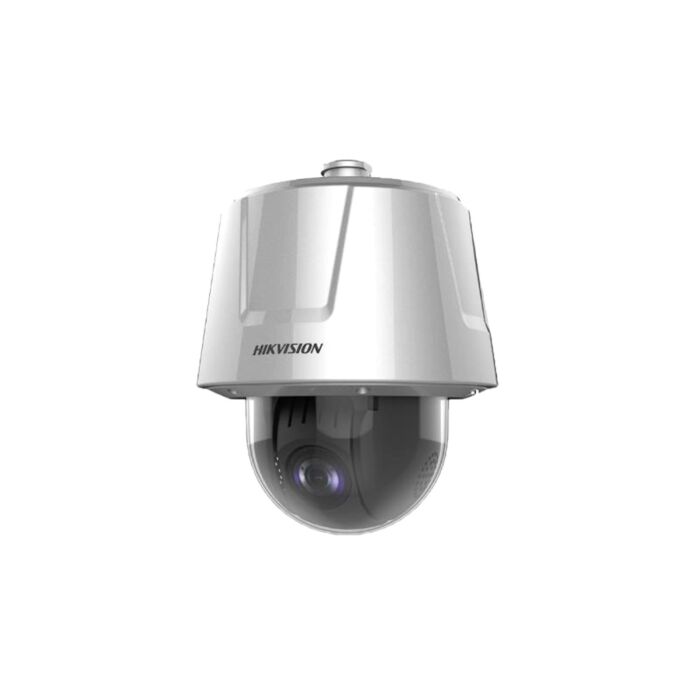

Hikvision DS-2DT6232X-AELY(T5) 6-inch 2MP 32x Anti-Corrosion Network Speed Dome
SKU: DS-2DT6232X-AELY(T5)
Contact Us for Stock Levels
Key features:
- 1/1.8" progressive scan CMOS
- 2MP and up to 1920x1080 resolution
- Close up views over large areas with 32x optical zoom and 16x digital zoom
- Lens focal length between 5.9mm to 188.8mm
- Image Enhancement - 140dB WDR, 3D DNR, HLC,
- Supports Rapid Focus
- Supports face capture to detect, capture, grade, and select faces in motion
- Operating conditions - Temperature: -40°C to 70°C, Humidity: ≤ 95%
- PTZ Capabilities - supports Power-off memory, Park Actions, 3D Positioning and more
- 360° Pan movement range and between -15° to 90° Tilt movement range
- Anti-Corrosion
- IP67 Ingress Protection
- IK10 Vandal Resistance

This Product is powered by 24V AC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Speed Dome User Manual
Hikvision Anti-Corrosion Speed Dome Quick Start Guide
Hikvision Product Catalogue

Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.



Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2DT6232X-AELY(T5) is an anti-corrosion PTZ camera that provides 2MP resolution and up to 32x optical zoom, offering more details over expansive areas. It supports rapid focus as well as image enhancements such as 140dB WDR.
It also can support detecting up to 30 faces at the same time. Furthermore, it has a built-in memory card slot that can support microSD cards up to 256GB. The PTZ capabilities include Power-off memory, Park Actions, 3D Positioning and more.
Events and Alarm Linkage
Users should also note that the DS-2DT6232X-AELY(T5) also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: Motion detection, video tampering alarm, alarm input, alarm output, and exception.
- Smart Events: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, vandal-proof alarm, and audio exception detection.
- Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (preset, patrol scan, pattern scan etc.)
- Deep Learning Function: Face Capture (can detect up to 30 faces simultaneously).
- Road Traffic: Vehicle detection (license plate number, vehicle model, and vehicle colour recognition)
- Smart Record: ANR, Dual-VCA
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 2604.1m | 1033.4m | 520.8m | 260.4m |

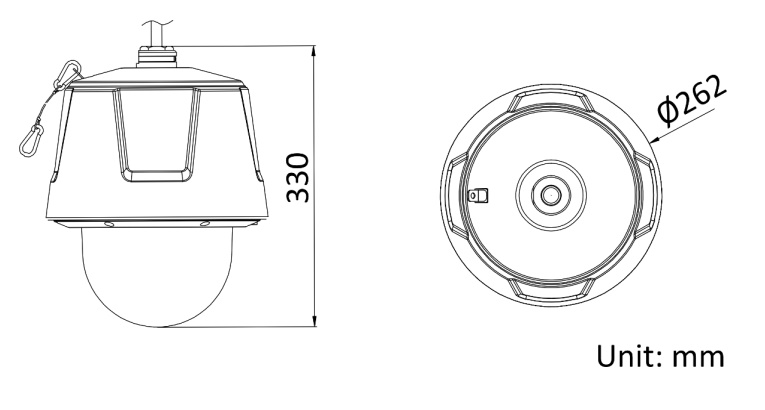

Dimensions:
