Hikvision DS-2TD2637T-7/QY Anti-Corrosion Thermographic Thermal and Optical Bi-spectrum Bullet Camera
SKU: DS-2TD2637T-7/QY
Contact Us for Stock Levels
Key features:
- Thermal Module 384x288 resolution; Optical Module 2688x1520 resolution
- Lens Focal Length - Thermal Module - 6.5mm; Optical Module - 4mm
- Temperature exception alarm for fire prevention
- Smoking detection algorithm
- Video content analysis: human/vehicle classification
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- Wide Dynamic Range (WDR) up to 120dB
- Alarm Input/Output - 2 Input (0 to 5 VDC) / 2 Output (with configurable alarm response actions)
- Alarm Actions - SD Recording, Relay output, Smart capture, FTP upload, Email linkage
- Ingress Protection Rating - IP67
- High quality detector with 10 years guarantee
This product can be powered by 12VDC, 24VDC, 24VAC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision DS-2TD2637T-7/QY User Manual
Hikvision DS-2TD2637T-7/QY Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details

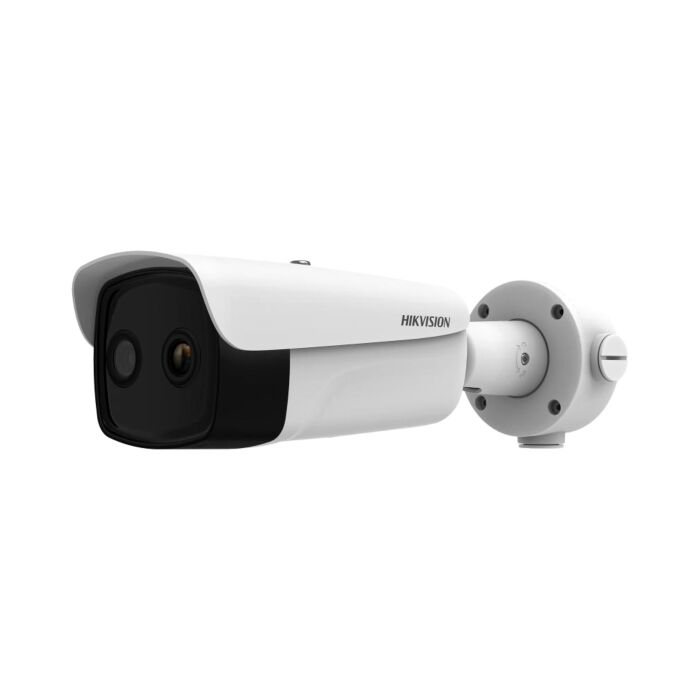

The Hikvision DS-2TD2637T-7/QY is a Thermographic Network Bullet Camera, offers an optical Bi-spectrum design (utilising both a Thermal module and an Optical module) and is equipped with a highly accurate temperature exception alarm.
The DS-2TD2637T-7/QY supports an intelligent perimeter protection algorithm and real-time alarm. It can also realise high-precision VCA detection. This is then all applied to perimeter protection and fire prevention purposes, helping users discover unexpected events quickly and preventing damage to property. With the vandium oxide uncooled focal plane sensor, the thermal image quality is enhanced.
With a deep learning algorithm, the DS-2TD2637T-7/QY also offers high precision VCA detection and real-time alarm, so users can always feel that their property is being kept as secure as possible, and know that they will be alerted to react to incidents as soon as possible.
The DS-2TD2637T-7/QY also adopts anti-corrosion coating to meet the requirements of usage in anti-corrosion environments. This along with its smart features and IP67 design means it can be applied to critical infrastructures such as airports, railways, prisons, power stations, 4S stores, and more.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 136.5m - Humans (1.8 x 0.5 m) - 45.5m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (0.2 x 0.2 m) - 82.4m - Object (1 x 1 m) - 412m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.
Temperature Range - -20°c ~ 150°c (-4°F to 302°F)
Temperature Accuracy - ± 8°C (± 14.4°F)
- Fire Detection: Object (0.2 x 0.2 m) - 65m
- Smoke Detection: Object (0.5 x 0.5 m) - 32.5m
- Smoking Detection: 6.5m
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 586m - Humans (1.8 x 0.5 m) 191m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 147m - Humans (1.8 x 0.5 m) 48m - In order to classify, the object (Animal, Human, Vehicle, ect) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 73m - Humans (1.8 x 0.5 m) 24m - In order to identify and describe it in details, the object must be covered by 12, or more, pixels.

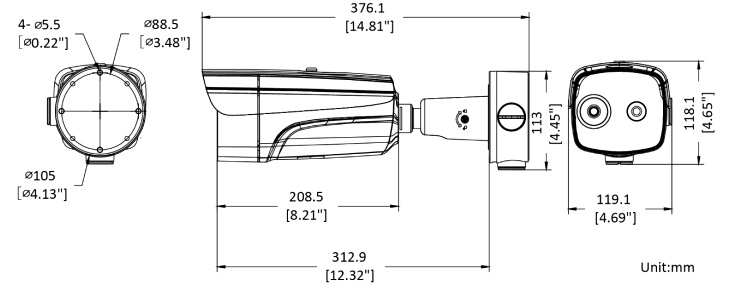

Dimensions:
