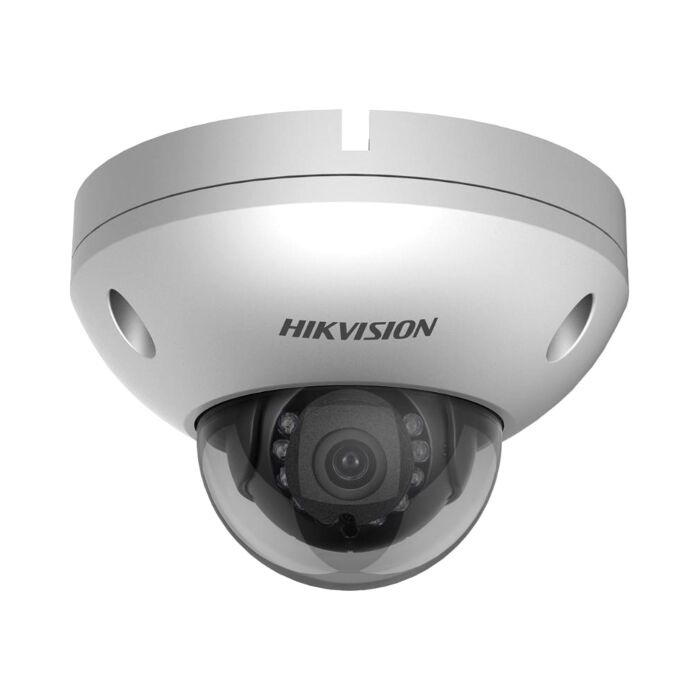

Hikvision DS-2XC6142FWD-IS(C) 4MP IR Fixed Mini Dome Anti-Corrosion Network Camera
SKU: DS-2XC6142FWD-IS(C)
Contact Us for Stock Levels
Key features:
- 4MP (2688x1520) Resolution, at up to 30fps
- Fixed-focal Lens - 2.8mm, 4mm or 6mm
- 316L Stainless Steel Anti-Corrosion Enclosure
- Angle Adjustment - -30° to 360° Pan / 0° to 75° Tilt / 0° to 360° Rotate
- Image Enhancement - BLC, HLC, 3D DNR, Defog, 120dB WDR
- IR Illumination - Up to 15m
- Simultaneous Live View for up to 6 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- Built-in Memory Card Slot - supports microSD/SDHC/SDXC, up to 128GB
- Operating Temperature: -30°c to 60°c
- Humidity: 95% or less (non-condensing)
- 1m Pigtail Lead
- DS-1284ZJ-M-AC3(OS) Junction Box required for installation
- IP67 Ingress Protection for water and dust resistance
This product is powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2XC6142FWD-IS(C) is a mini dome camera that is equipped with a 4MP resolution, fixed-focal lens, IR illumination up to 15m, and more. It has a 316L stainless steel enclosure, protecting it from corrosive environments and providing reliability compared to standard cameras. Furthermore, it has IP67-rated water and dust resistance, preventing water ingress for outdoor use. As well as this, the lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions, which is ideal for easy installation.
Choose from 3 lens focal lengths - 2.8mm, 4mm, or 6mm

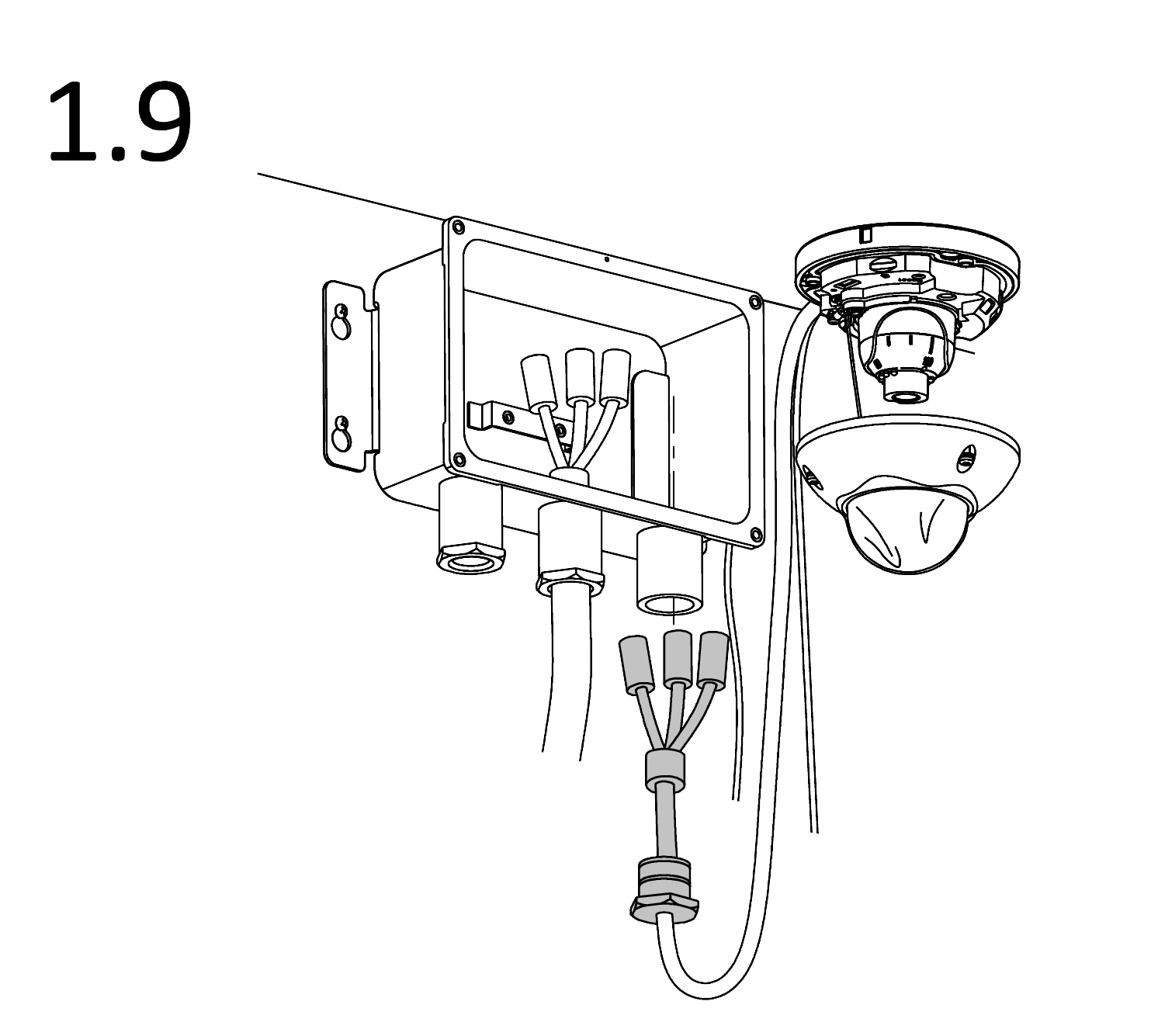

Please Note: The pigtail lead on this camera is 1m long. As illustrated in the diagram below, there is a G3/4 metal gland nut on the pigtail lead, which needs to be attached to the DS-1284ZJ-M-AC3(OS) Junction Box to protect the connections and ensure that the camera is IP67-rated.
Events:
Basic Events - Motion detection, Video Tampering alarm, Exception detection.
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Unattended baggage detection, Object removal detection
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Distance - 2.8mm | 54.6m | 21.7m | 10.9m | 5.5m |
| Distance - 4mm | 85.4m | 33.9m | 17.1m | 8.5m |
| Distance - 6mm | 128m | 50.8m | 25.6m | 12.8m |

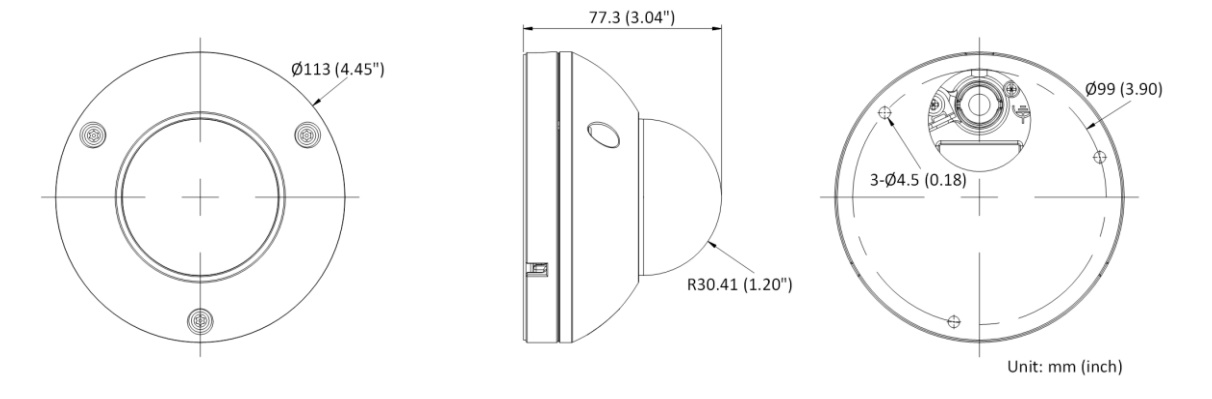

Dimensions:
