Hikvision HM-TD2168T-5/G0/T1Y Anti-Corrosion Thermographic Network Bullet Camera
SKU: HM-TD2168T-5/G0/T1Y
Contact Us for Stock Levels
Key features:
- 640x512 resolution, 12 μm, VOx UFPA, NETD < 25 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention
- Supports fire detection and smoking detection algorithm
- Supports forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function)
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- High-quality detector with 10 years warranty
- Built-in TPM2.0 encryption module for cybersecurity
- Alarm Output - 2-ch Relay Output (with configurable alarm response actions)
- Alarm Actions - SD recording, Relay output, Smart capture, FTP upload, Email linkage
- Ingress Protection Rating - IP67
- NEMA 4X Anti-Corrosion Housing
- DS-1260ZJ-AC Junction Box included
This product can be powered by 24V AC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision HIKMICRO Thermal Network Camera User Manual
Hikvision HIKMICRO Thermal Bullet Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision HM-TD2168T-5/G0/T1Y Anti-Corrosion Thermography Bullet Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, and more. The temperature measurement device sends temperature exception alarms for loss prevention.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 156m - Humans (1.8 x 0.5 m) - 52m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (0.2 x 0.2 m) - 15.6m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.
Temperature Range - -20°c ~ 650°c (-4°F to 1202°F)
Temperature Accuracy - Max ( ± 2°C ± 2%)
- Fire Detection: Object (0.2 x 0.2 m) - 62.4m
Is equipped with dynamic fire detection, with up to 10 fire points detectable.
- Smoking Detection: - 7.8m
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 664m- Humans (1.8 x 0.5 m) 217m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 166m - Humans (1.8 x 0.5 m) 54m - In order to classify, the object (Animal, Human, Vehicle, etc) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 83m - Humans (1.8 x 0.5 m) 27m - In order to identify and describe it in detail, the object must be covered by 12, or more, pixels.

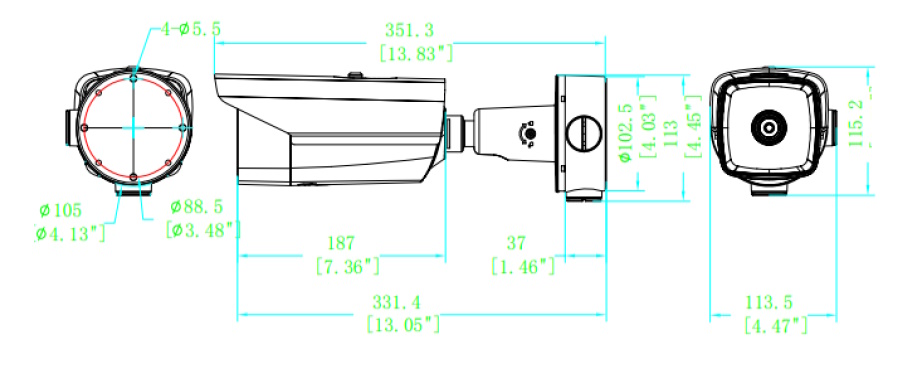

Dimensions:
