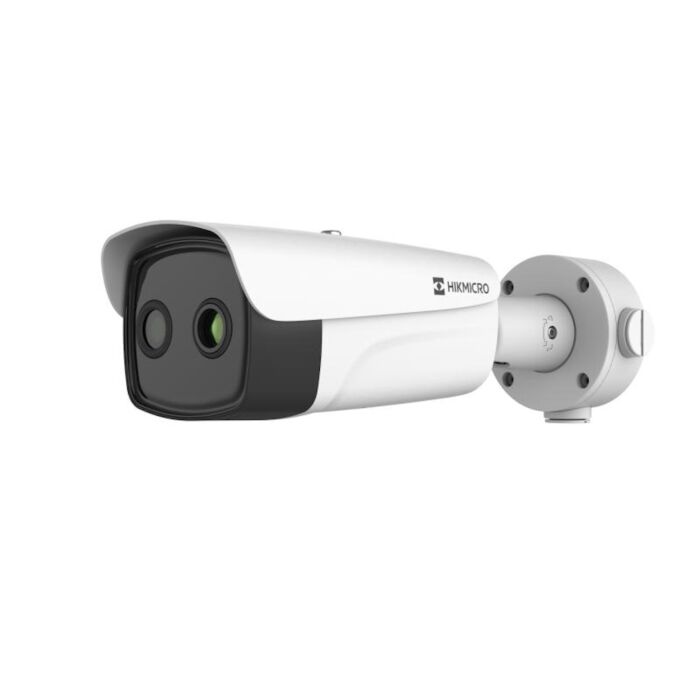

Hikvision HM-TD2638T-8/G0/T1Y Anti-Corrosion Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera
SKU: HM-TD2638T-8/G0/T1Y
Contact Us for Stock Levels
Key features:
- Thermal Module 384x288 resolution, Optical Module 2688x1520 resolution
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention
- Supports smoking detection algorithm
- Supports fire detection and smoke detection algorithm
- Supports sun-reflection filter and forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function)
- Image Processing Technology - Linear, Histogram, Self-adaptive Thermal AGC mode, DDE, 3D DNR
- High-quality detector with 10 years warranty
- Alarm Output - 2-ch Relay Output (with configurable alarm response actions)
- Alarm Actions - SD recording, Relay output, Smart capture, FTP upload, Email linkage
- Ingress Protection Rating - IP67
- NEMA 4X Anti-Corrosion Housing
- DS-1260ZJ-AC Junction Box included
This product can be powered by 24V AC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision HIKMICRO Thermal Network Camera User Manual
Hikvision HIKMICRO Thermal Bullet Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision HM-TD2638T-8/G0/T1Y Anti-Corrosion Thermographic Thermal & Optical Bi-Spectrum Bullet Camera can be applied to substations. hydropower stations, waste incineration plants, manufacturing workshops, and more. The temperature measurement device sends temperature exception alarms for loss prevention.
Smart Functions:
- VCA Range: Vehicles (1.4 x 4.0 m) - 228m - Humans (1.8 x 0.5 m) - 76m
Is equipped with 4 VCA rule types, with 8 rules in total. The rule types include; line crossing, intrusion, region entrance, and region exiting.
- Temperature Measurement: Object (0.2 x 0.2 m) - 22.8m
Is equipped with 3 Temp Measurement rule types, with 21 rules in total. The rule types include; 10 points, 10 areas, and 1 line.
Temperature Range - -20°c ~ 650°c (-4°F to 1202°F)
Temperature Accuracy - Max ( ± 2°C ± 2%)
- Fire Detection: Object (0.2 x 0.2 m) - 91.2m
Is equipped with dynamic fire detection, with up to 10 fire points detectable.
- Smoke Detection: Object (0.5 x 0.5 m) - 12.9m
- Smoking Detection: - 12m
DRI (Detection, Recognition, Identification) Range:
- Detection Range: Vehicles (1.4 x 4.0 m) 971m- Humans (1.8 x 0.5 m) 317m - In order to distinguish from the background, the object must be covered by 1.5, or more, pixels.
- Recognition Range: Vehicles (1.4 x 4.0 m) 243m - Humans (1.8 x 0.5 m) 79m - In order to classify, the object (Animal, Human, Vehicle, etc) must be covered by 6, or more, pixels.
- Identification Range: Vehicles (1.4 x 4.0 m) 121m - Humans (1.8 x 0.5 m) 40m - In order to identify and describe it in detail, the object must be covered by 12, or more, pixels.
Dimensions:
