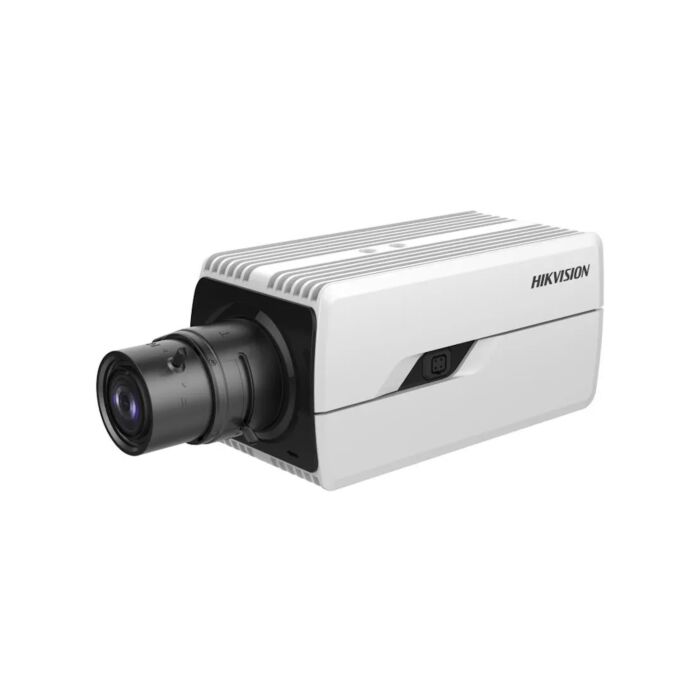

Hikvision iDS-2CD7046G0(-AP)(/F11) 4MP DeepinView Box Network Camera
SKU: iDS-2CD7046G0(-AP)(/F11)
Contact Us for Stock Levels
Key features:
- 4MP (2560x1440) Image Resolution, at up to 60fps
- CS Lens Mount - requires lens
- AI Open Platform - supports up to 4 models (Model types: detection, classification, mixed)
- Image Enhancement features - BLC, HLC, 3D DNR, Defog, 140dB WDR, EIS
- Alarm I/O - 2 inputs, 2 outputs
- Interfaces - includes; x1 RS-485, Reset key, x1 RJ45 self-adaptive ethernet port
- DeepinView | Supports a selection of Deep Learning functions
- Supports simultaneous Live View for up to 20 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- Operating Conditions - Temperature: -30°c to 60°c | Humidity: 95% or less (non-condensing)
- On-Board Storage - Memory card slot, supports microSD/SDHC/SDXC up to 1TB
This product is powered by 12 VDC, 24 VAC, or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The iDS-2CD7046G0(-AP)(/F11) is a 4MP Box camera, from Hikvision, released as a part of the DeepinView series, meaning it comes equipped with an impressive selection of deep learning surveillance functions.
Events and Alarm Linkage:
Basic Events - Motion detection, Video Tampering alarm, Exception detection (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), Video quality diagnosis.
Smart Events - Line Crossing detection, Intrusion detection, Region Entrance detection, Region Exiting detection, Audio Exception detection, Scene change detection, Defocus detection.
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture, Audible warning.
DeepinView - Deep Learning Functions:
Multi-Target Type Detection - supports the simultaneous detection and capture of up to 7 human facial features, 13 human body features, and 2 vehicle features.
Face Capture and Face Comparison - detects up to 60 faces simultaneously, and up to 10 face libraries (up to 30,000 faces in each, and 150,000 faces in total). Also supports face library encryption.
Perimeter Protection - supports Line crossing, Intrusion, Region entrance, and Region exiting detection, as well as alarm triggering by specified target types (human and vehicle).
People Counting - supports crossline people counting, display and exporting of people flow data, displays real-time people flow data on screen, uploads face wth background and close-up face picture.
Queue Management - supports up to 8 detection regions, 2 detection modes (regional people queuing-up and waiting time detection), an independent arming schedule and linkage method. It also generates reports to compare the efficiency of different queues.
Heat Map - offers a graphic description of visits in a configured area (calculating the amount of people or amount of dwell time), and supports 2 report types (space heat map and time heat line chart).
Hard Hat Detection - detects up to 30 human targets simultaneously, and supports up to 4 shield regions.
Metadata - supports Intrusion, Line crossing, Region entrance, Region exiting, Face capture, and Multi-target-type detection.
Regional People Counting - supports up to 8 detection regions, 3 detection modes (people density detection, number of people exception detection, and waiting time exception detection), real-time search of number of people, people density detection, and independent arming schedule / linkage method.
On/Off Duty Detection - supports up to 8 detection regions, 2 detection modes (absence detection and on/off duty detection), and parameter settings (person on duty and absence detection).

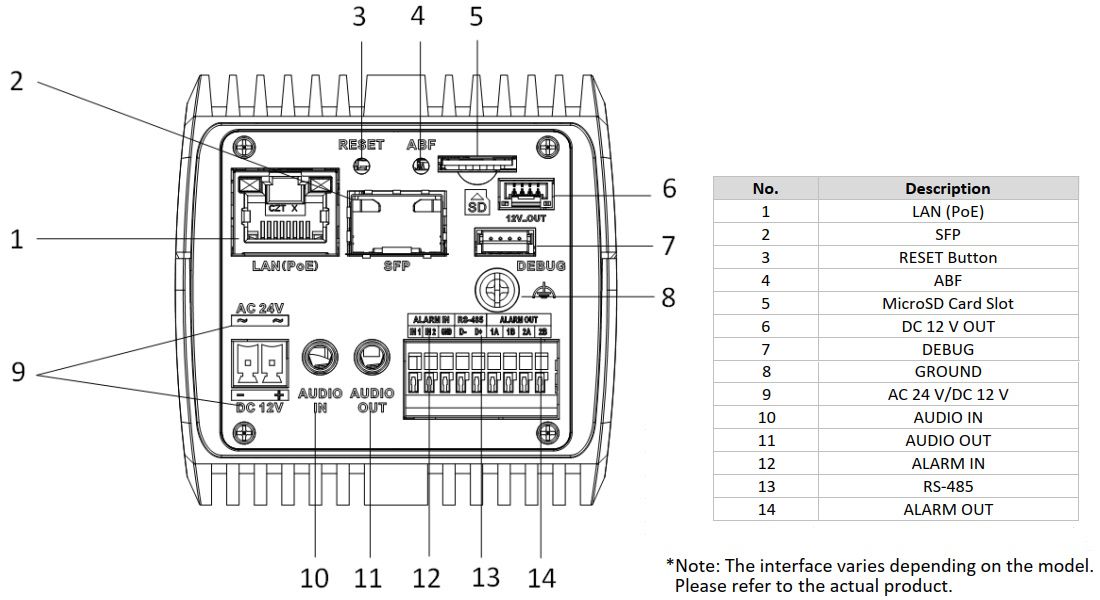

Interfaces:

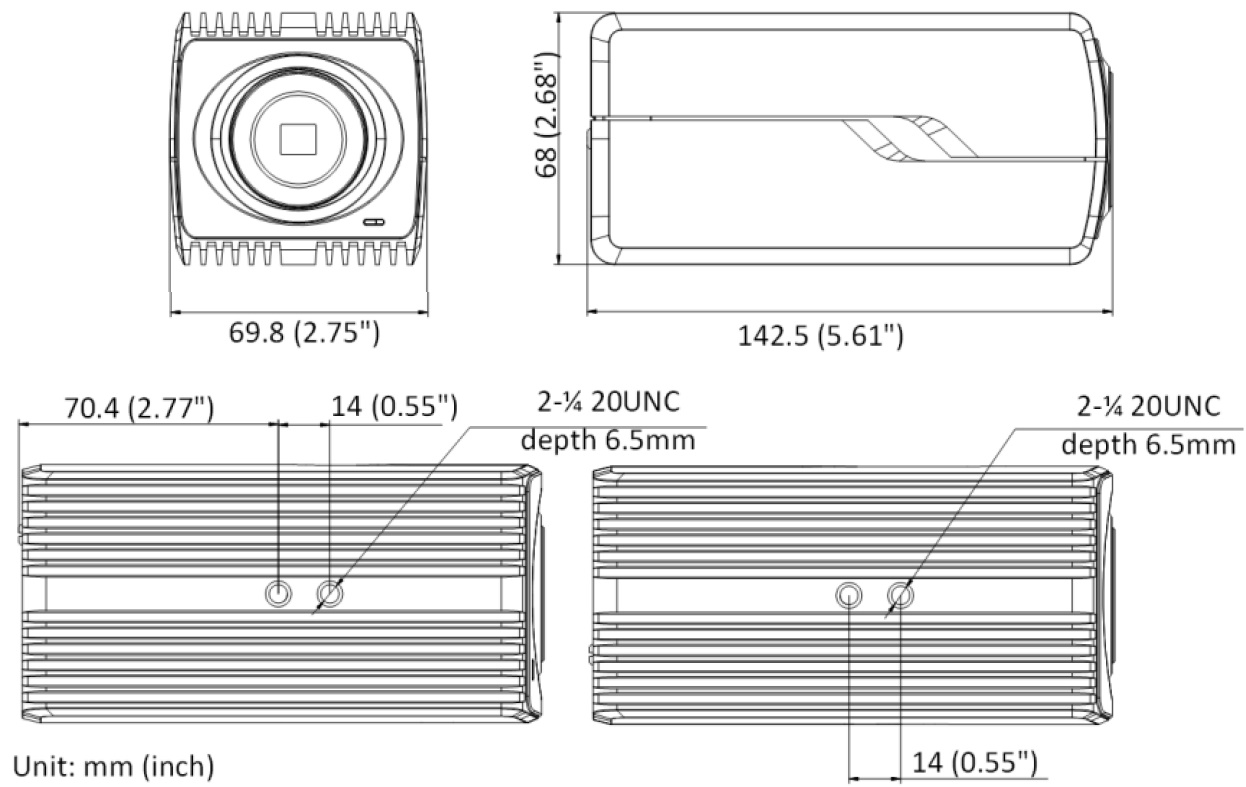

Dimensions:
