Hikvision iDS-2CD7547G2-ZHS/RC 4MP DarkFighter DeepinView PTRZ Dome Camera
SKU: iDS-2CD7547G2-ZHS/RC
Contact Us for Stock Levels
Key features:
- 4MP (2688x1520) Image Resolution, up to 60fps
- 2.8-12mm, 8-32mm, or 10-50mm focal length
- Excellent low-light performance with DarkFighter 2.0 technology
- Motorised Pan, Tilt, Rotate and Zoom
- Support for Auto, Semi-Auto, and Manual Focus
- Supports Image Enhancement - BLC, HLC, 3D DNR, Distortion Correction, Defog, ≥ 52 dB SNR, EIS
- Wide Dynamic Range (WDR) up to 150dB
- DeepinView | Features a range of Deep Learning functions
- Built-in G sensor for vibration detection
- Built-in power meter for historical power statistics
- Simultaneous Live View for up to 20 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- 5 streams to meet a wide variety of applications
- AI Open Platform
- Built-in Heater
- IP67 and IK10 certified - Weather and Vandal Resistant
- Specially designed for Recessed Inceiling Mount
- Startup and Operating Conditions - Temperature: -40°c ~ 65°c | Humidity: 95% or less (non-condensing)
This product can be powered by 12 VDC, 24 VAC, or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details

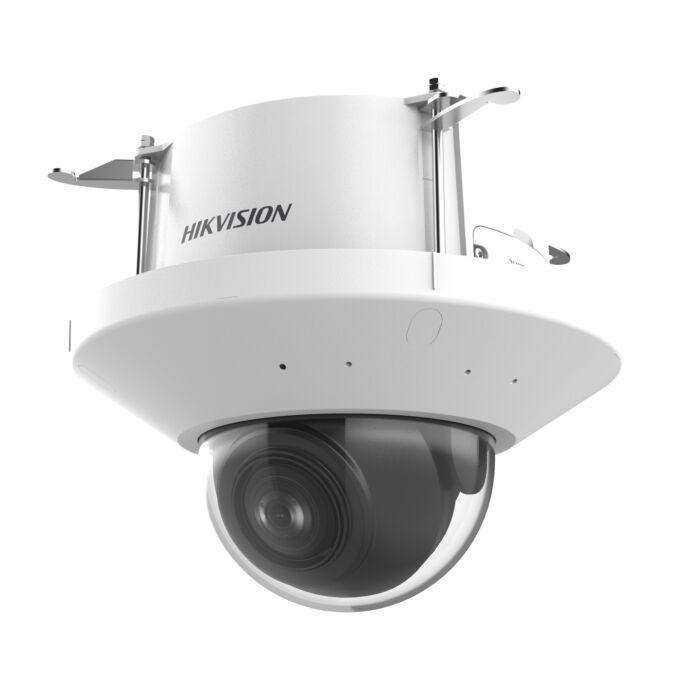

The Hikvision iDS-2CD7547G2-ZHS/RC is a PTRZ camera that delivers 4MP resolution at a high frame rate of 60fps. It has a G-sensor for vibration detection, a built-in power meter for historical power statistics, and is specially designed for recessed inceiling mount. With IK10 and IP67 ratings along with a built-in heater, it is suitable for outdoor use.
Choose from three focal lengths: 2.8-12mm, 8-32mm, or 10-50mm
DarkFighter 2.0 uses advanced camera sensors, large apertures, and AI-driven technology to provide high-quality images with lifelike colours in ultra low-light. It ensures that critical details are not compromised, no matter the lighting conditions.
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8 ~ 12mm | 63.4m / 140.7m | 25.2m / 55.8m | 12.7m / 28.1m | 6.3m / 14.1m |
| 8 ~ 32mm | 158.6m / 372.4m | 62.9m / 147.8m | 31.7m / 74.5m | 15.9m / 37.2m |
| 10 ~ 50mm | 150.3m / 635.9m | 59.7m / 252.3m | 30.1m / 127.2m | 15m / 63.6m |
Events, Alarm Linkage, and AI Open Platform:
Basic Events - Motion detection (support alarm triggering by specified target types (human and vehicle)), Video tampering alarm, Exception detection (network disconnected, IP address conflict, illegal login, HDD full, HDD error), Glass break detection, Scream detection, Gunshot and explosion sound detection, Crying sound detection.
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection.
Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send Email, Trigger Alarm output, Trigger recording, Trigger capture, Audible warning.
AI Open Platform - Up to 4 models. Model type: detection model, classification model, mixed model.
DeepinView - Deep Learning Functions:
Multi-Target Type Detection - supports the simultaneous detection and capture of up to 7 human facial features, 13 human body features, and 2 vehicle features.
Face Capture and Face Comparison - detects up to 120 faces simultaneously, and up to 10 face libraries (up to 30,000 faces in each, and 150,000 faces in total). Also supports face library encryption.
Metadata - supports intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, and multi-target-type detection.
Perimeter Protection - supports Line crossing, Intrusion, Region entrance, and Region exiting detection, as well as alarm triggering by specified target types and combined event alarm triggering.
People Counting - supports crossline people counting, display and exporting of people flow data, displays real-time people flow data on screen, uploads face with background and close-up face picture.
Queue Management - supports up to 8 detection regions, 2 detection modes (regional people queuing-up and waiting time detection), an independent arming schedule, and linkage method. It also generates reports to compare the efficiency of different queues.
Heat Map - offers a graphic description of visits in a configured area (calculating the amount of people or amount of dwell time), and supports 2 report types (space heat map and time heat line chart).
Hard Hat Detection - detects up to 30 human targets simultaneously, and supports up to 4 shield regions.
Regional People Counting - supports up to 8 detection regions, 3 detection modes (people density detection, number of people exception detection, and waiting time exception detection), real-time search of number of people, people density detection, and independent arming schedule / linkage method.
On/Off Duty Detection - supports up to 8 detection regions, 2 detection modes (absence detection and on/off duty detection), and parameter settings (person on duty and absence detection).

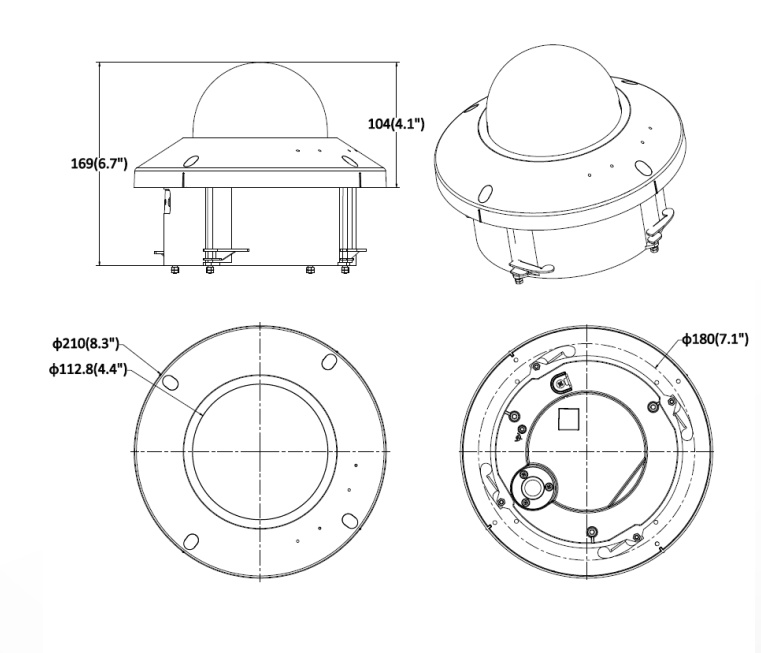

Dimensions:
