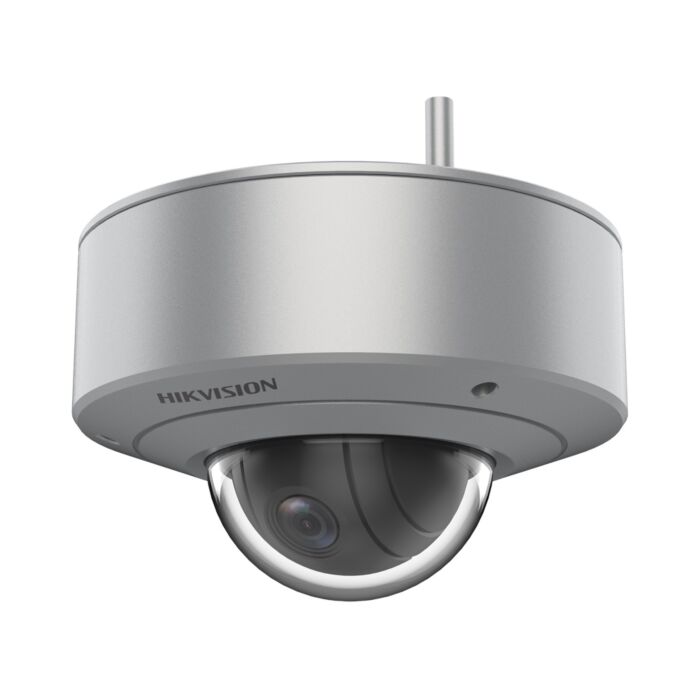

Hikvision DS-2XE6146F-HS(C) 4MP Explosion-Proof Fixed Dome Network Camera
SKU: DS-2XE6146F-HS(C)
Contact Us for Stock Levels
Key features:
- 4MP (2688x1520) Resolution
- 1/3" progressive scan CMOS
- Fixed-focal Lens - 2.8mm or 4mm
- M12 Lens Mount, F1.0 Aperture
- Supports H.265+/H.265/H.264+/H.264 Video Compression
- Image Enhancement - 120dB WDR, 3D DNR, HLC, BLC, Defog
- Simultaneous Live View for up to 6 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- 316L Stainless Steel
- Explosion-Proof Protection - ATEX & IECEx certified
- IP68 Ingress Protection
- NEMA 4X Protection
- Built-in Heater
- Operating Temperature: -40 °C to 60 °C
- DS-2701ZJ-AC(OS) Pendant Mount Included
This Product is powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Explosion-Proof Dome Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2XE6146F-HS(C) provides 4MP resolution at up to 30fps. It is IP68-rated against water, and its built-in heater allows for start-up in ultra-low temperatures up to -40 °C.
The DS-2XE6146F-HS(C) is part of Hikvision's explosion-proof cameras series, meaning it uses 3.5mm stainless steel housing and a specifically designed joint to survive external explosions and continue providing continuous services in the event of fire and explosions. The remote monitoring features allow users to simplify and secure surveillance without having people present in hazardous areas. They are ideal for applications such as factories, chemical plants, oil stations, and more.
Choose from two lens focal lengths: 2.8mm or 4mm
Events and Alarm Linkage
- Basic Events: Motion detection, video tampering alarm, and exception.
- Smart Events: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection, and scene change detection.
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| 2.8mm | 54.6m | 21.7m | 10.9m | 5.5m |
| 4mm | 85.4m | 33.9m | 17.1m | 8.5m |

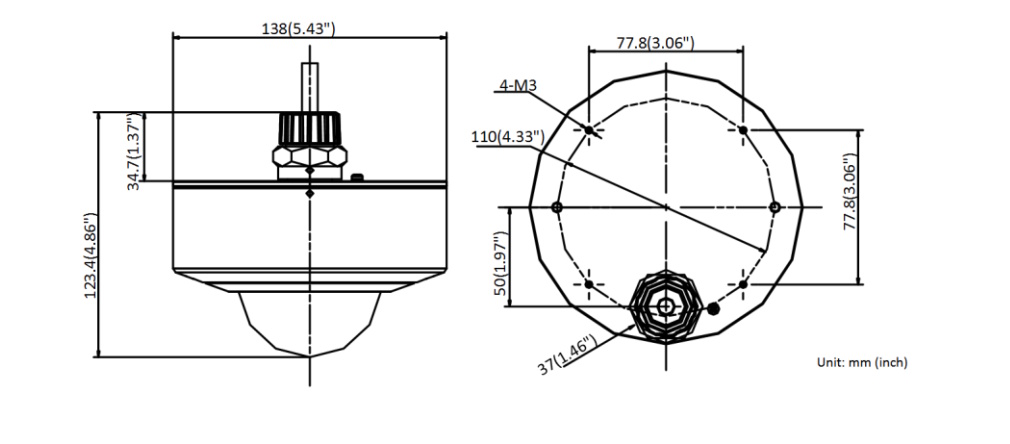

Dimensions:
