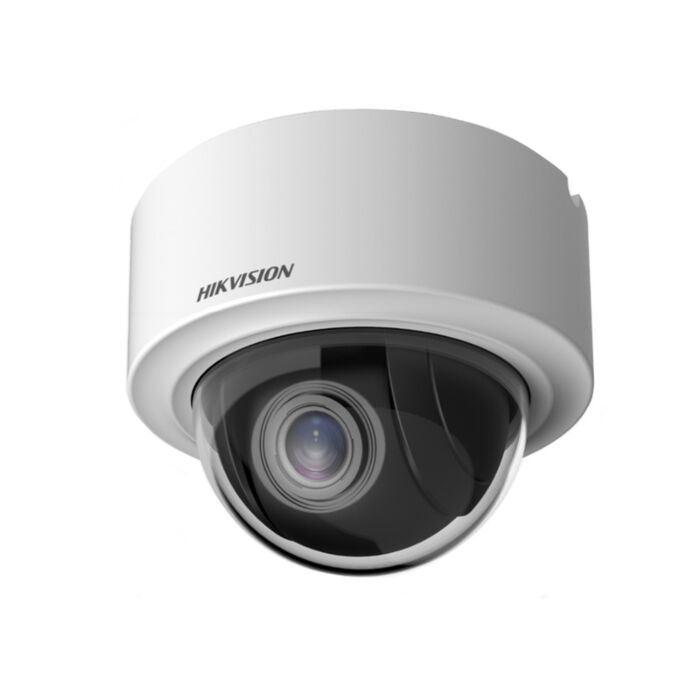

Hikvision DS-2DE3404W-DE(T5) 3-Inch 4MP Mini PT Dome Camera
SKU: DS-2DE3404W-DE(T5)
Contact Us for Stock Levels
Key features:
- 4MP (2560x1440) Image Resolution
- 4x Optical Zoom, 16x Digital Zoom
- Pan and Tilt capabilities | Pan range - 350° | Tilt range - 0° ~ 90°
- Supports Patrol Scan (with up to 32 presets for each patrol) and Scheduled Tasks (preset, patrol scan, dome reboot, dome adjust, and, aux output)
- 2.8mm ~ 12mm Vari-focal Lens, with support for Auto, Semi-Auto, and Manual Focus
- 120dB WDR (Wide Dynamic Range) - for clear imaging against strong backlight
- Image Enhancement technologies - supports BLC (backlight compensation), HLC (highlight compensation), and 3DNR (3D noise reduction)
- Supports Basic and Smart Events, for improved video surveillance capabilities
- Supports Simultaneous Live View for up to 20 channels
- Includes Built-in Memory Card slot - supports microSD/SDHC/SDXC, up to 256GB
- Water and Dust Resistant - IP66
- Operating Conditions | Temperature - -30°c ~ 65°c | Humidity - 90% or less
- Equipped for use in Outdoor environments
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Speed Dome User Manual
Hikvision Network PTZ Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2DE3404W-DE(T5) is a 3-inch 4MP PT Mini Dome, designed for use in outdoor applications (with IP66 Ingress protection), featuring intuitive Pan and Tilt capabilities, ideal for wide area coverage.
PTZ Specs / Capabilites
The DS-2DE3404W-DE(T5) offers users PTZ capabilties and a selection of supported PTZ features. With Pan/Tilt manoeuvrability, Hikvision's PT domes are capable of expansive views, working alongside 4x optical and 16x digital zoom, allowing for detailed close ups of objects / areas of interest.
Pan - Movement range - 350° | Speed - configurable from 0.1°/s ~ 60°/s
Tilt - Movement range - 0° ~ 90° | Speed - configurable from 0.1°/s ~ 50°/s
Zoom - 4x Optical, 16x Digital
Supported PTZ features - Proportional zoom, Presets (up to 300), Preset freezing, 3D positioning, PTZ status display, Patrol scan (up to 32 presets for each patrol), Scheduled tasks (preset, patrol scan, dome reboot, dome adjust, and aux output)
Image Quality
Equipped with 4MP resolution, up to 2560x1440, with 16:9 aspect ratio, the DS-2DE3404W-DE(T5) offers impressive image quality, supported by select image enhancement technologies for improved performance in challenging lighting conditions.
These features include:
120dB WDR (Wide Dynamic Range) - used to improve image detail in scenes with areas of dim lighting / darkness and harsh bright lighting, to keep surveillance footage as clear as possible in challenging lighting conditions
BLC (Backlight Compensation) and HLC (Highlight Compensation) - used to compensate for strong backlight (BLC) and areas of brightness (HLC) to help keep images clear and detailed at all times
3DNR (3D Noise Reduction) - helps to reduce interference from incoming signals ('noise') that would usually disrupt image quality, to maintain image quality.
Events and Alarm Linkage
Basic Events - Motion detection, Video tampering alarm, Exception, Alarm Input, and Alarm Output
Smart Events - Line-crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, and Object removal detection
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance centre, send Email, Trigger alarm output, Trigger recording, and PTZ actions (preset / patrol scan)
DORI - Detect, Observe, Recognise & Identify
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 130.9m | 51.9m | 26.2m | 13.1m |

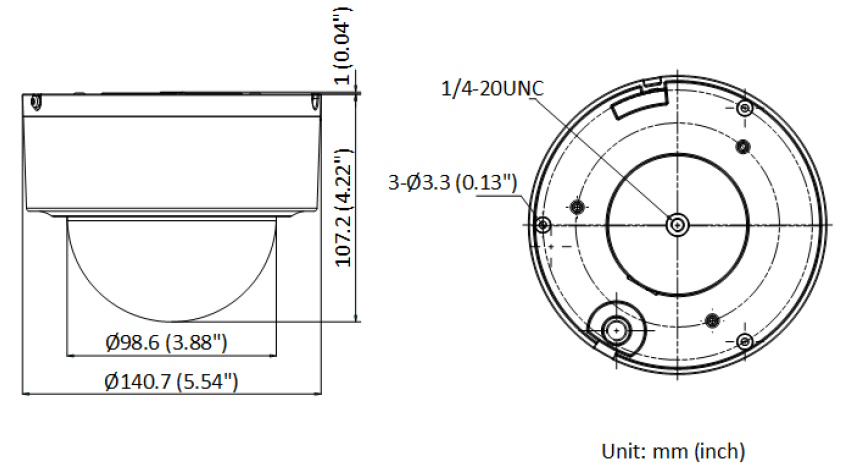

Dimensions:
