Hikvision DS-2CD2543G2-IWS 4MP AcuSense Wi-Fi Fixed Mini Dome Network Camera
SKU: DS-2CD2543G2-IWS
Contact Us for Stock Levels
Key features:
- 4MP (2688x1520) Image Resolution, at up to 30fps
- Fixed-focal Lens - 2.8mm or 4mm focal length
- Depth of Field - 2.8mm: 1.4m to ∞ | 4mm: 1.6m to ∞
- IR Illumination, with 850nm wavelength - up to 30m
- Image Enhancement features - BLC, HLC, 3D DNR, 120dB WDR, >52dB SNR
- Features Perimeter Protection (deep learning function)
- Alarm I/O - 1 input, 1 output
- Built-in Microphone
- Realising Wi-Fi connection and easy installation
- Supports simultaneous Live View for up to 6 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- On-Board Storage - built-in Memory card slot, supports microSD up to 512GB
- Operating Conditions - Temperature: -30°c to 60°c | Humidity: 95% or less (non-condensing)
- IP67 Ingress Protection, for water and dust resistance
- IK08 Impact rating, for vandal resistance
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD2543G2-IWS is a 4MP mini dome camera that is equipped with a fixed-focal lens, built-in microphone and AcuSense technology for improved video surveillance analytics and accuracy.
Choose from 2 lens focal lengths - 2.8mm, or 4mm.

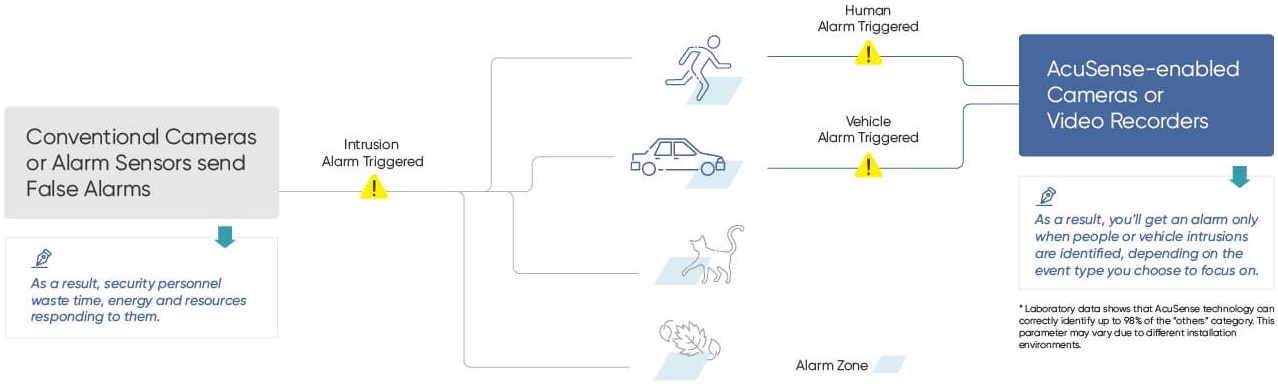

AcuSense Technology:
AcuSense is a Hikvision technology designed to improve surveillance analytics and detection accuracy, and features both Classified Object Detection and Self-Learning Analytics.
Classified Object Detection
Deep-learning algorithms are trained to classify objects detected in surveillance footage into 3 categories (Humans, Vehicles, and Other). Users can configure these algorithms to automatically detect humans, vehicles, or both, based on their specific requirements.
Self-Learning Analytics
Designed with the Learn-by-Example approach, Self-Learning Analytics help users to continuously improve the accuracy of deep-learning algorithms in specific application scenarios. Users can note frequent false alarms, and algortihms will learn from the examples given to help minimise similar errors in the future.
This keeps your surveillance system working as effectively as possible.
Events, Alarm Linkage, and Deep Learning functions:
Basic Events - Motion detection, Video Tampering alarm, Exception detection.
Smart Events - Line Crossing detection, Intrusion detection, Face detection
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger recording, Trigger capture.
Deep Learning Function - Perimeter Protection
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Distance - 2.8mm | 64m | 25m | 13m | 6m |
| Distance - 4mm | 85m | 34m | 17m | 9m |

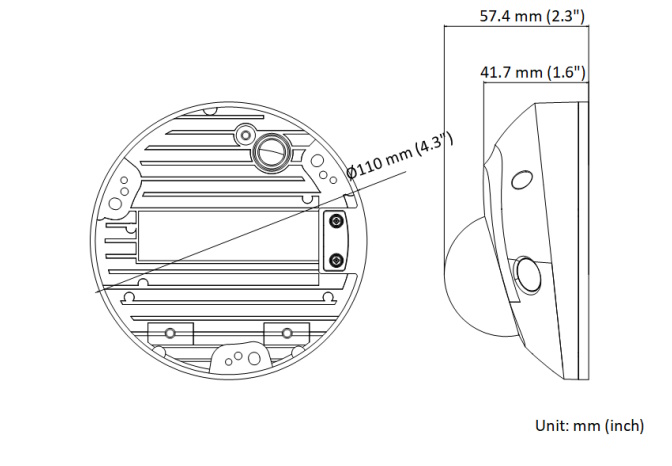

Dimensions:
