Hikvision DS-7716NI-M4 16-channel 8K 1.5U M-Series Network Video Recorder
SKU: DS-7716NI-M4
In stock
Key Features:
- HDMI Video Output, at up to 8K Resolution
- Dual-Stream Recording
- H.265+ / H.265 / H.264+ / H.264 Video Formats
- Up to 16-channels (IP Camera Inputs)
- Up to 16-ch@4MP Decoding Capacity
- Up to 256Mbps Incoming Bandwith
- Support for a range of VCA (video content analysis) Events
- non-PoE
- Alarm I/O - 16/9
- Power Consumption - < 15W (without HDD and PoE off)
- Working Temperature - -10°c ~ 55°c
- 12V DC, 1 A Power Output
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple Series HDD or Toshiba HDDs for this product.
January 2023 - WD Purple HDDs over 18TB are NOT compatible with Hikvision NVRs

Hikvision M-Series NVRs User Manual
Hikvision M-Series NVRs Quick Start Guide

Details
The DS-7716NI-M4, from Hikvision, is a part of the M-Series of NVRs, designed to offer users a reliable and effective network video recorder. With various features, Hikvision's M-series NVRs are a perfect addition to any Hikvision security setup.
This is a non-PoE model. For more information about the version with PoE ports, please see here.
Performance
Alongside its 16-channel syncronous playback, and use of smart functions (more information below) the DS-7716NI-M4 offers impressive performance and reliability, with a range of features designed to give users the best NVR experiance possible.
- H.265+ compression - to effectively reduce storage space (by up to 75%)
- Dual-stream recording - to save bandwith
- Stream over TLS Encryption technology - provides users with a secure stream transmission service
-Support for Double Verification (for playback and downloading)
- Use of Hik-Connect and DDNS (Dynamic Domain Name System) - for easy Network management
- Smooth Streaming technology and support for Web-access, without plug-in
Alongwith its impressive performance and network access, the DS-7716NI-M4 also offers impressive HDMI video output, at up to 8K Resolution (with Dual 4K Output), and provides independant HDMI and VGA outputs.
Smart Functions
The DS-7716NI-M4 also offers users a range of Smart functions, from support for multiple VCA (Video Content Analysis) events to POS (including; POS information overlay, on both live view and playback, and POS triggered recording and alarm) making it a highly effective inclusion to your security system setup.
Supported VCA Events:
- Motion, Line-crossing, and Intrusion Detection
- Heat-Map
- ANPR (Automatic Number-Plate Recognition)
- People Counting

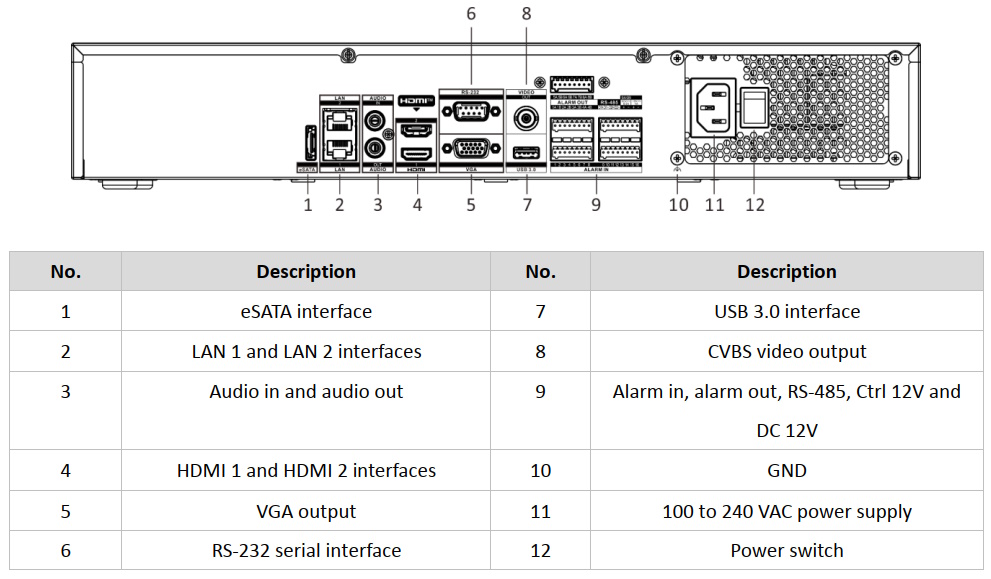

Interface:

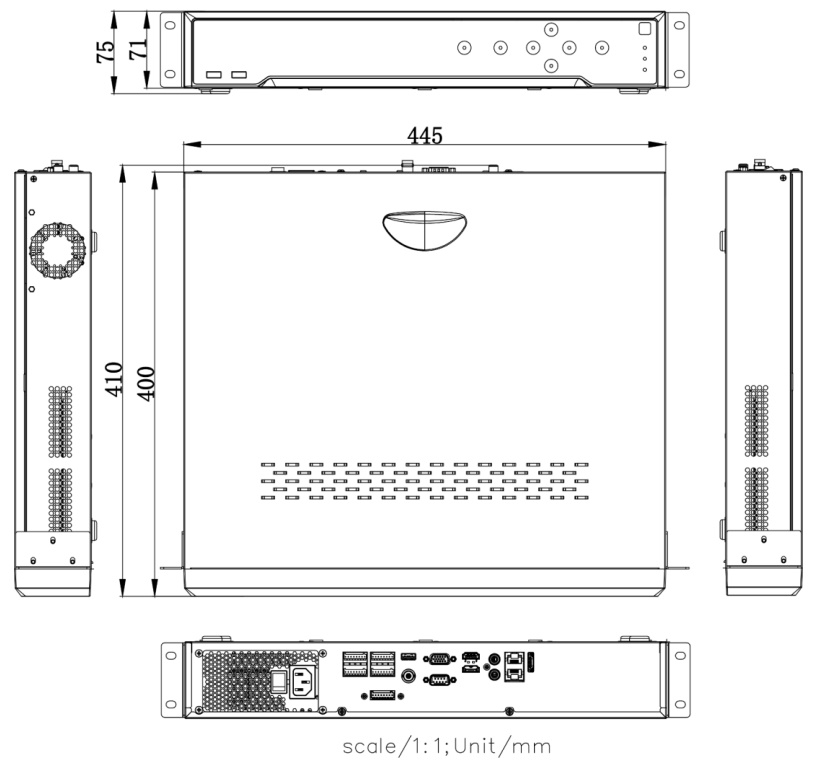

Dimensions:

Specs
Reviews
Datasheets
