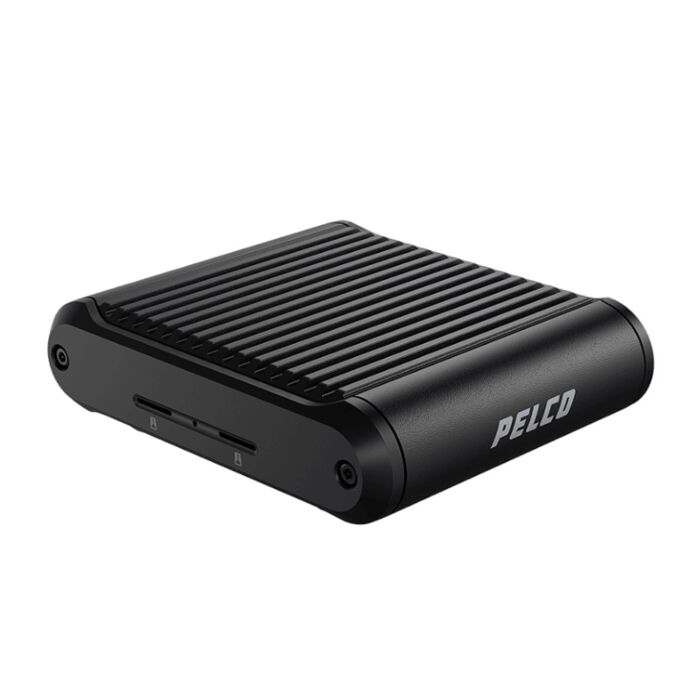

Pelco Sarix Modular IDL0-PU2 2-Port Main Processor Unit
SKU: IDL0-PU2
Contact Us for Stock Levels
Key features:
- Image Resolution and Lens depend on the equipped Imager module
- Support for up to 10MP resolution (combined resolution of 2 imagers) at 24 fps
- Onboard Storage - x2 microSD / microSDHC / microSDXC slots
- Customizable design - With the Main Processor unit, users can choose and equip up to 2 different imager modules of their choice (connected using detachable cables)
- Low-profile and Compact, useful for tight spaces / discreet applications
- Easy to Install
- 120dB WDR (Wide Dynamic Range) - for improved performance in challenging lighting conditions
- Automatic / Manual White Balance, and adjustable Backlight Compensation
- Supports for a selection of Pelco Smart Analytics
- Supports a range of robust security features - includes Password protection and Encryption
- Operating Temperature - -10°c ~ +60°c
- Power Consumption -13W Max. | Power Connector - 2-pin terminal block | RTC Battery Backup - 3V manganese lithium
- ONVIF (Profile S, G, and T) Complaint
- NDAA Compliant
- 5 Year Warranty
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Please Note: The Sarix Modular IDL0-PU2 Main Processor unit requires supported Imager modules - more information on these can be found on this page under 'Related Products' and in the 'Details' section
Pelco Sarix Modular Operations Manual
Pelco Sarix Modular Installation Manual
Pelco IDL0-PU2 Quick Guide
Please note: this product may not be immediately available from UK stock. Please contact us before purchasing.
Details
The IDL0-PU2 is the Main Processor Unit for the Sarix Modular Camera system. With a 2-port design, users can choose and equip up to 2 of the supported Imager modules, to build a customized, compact camera system.
Available Imager modules - IDL303-PHI 3MP Right-Angle imager with fixed Pinhole lens, or, IDL302-FXI / IDL502-FXI fixed lens Micro-Bullet (available as either 3MP or 5MP)
With its interchangeable form factors, the Sarix Modular series also allows for easy installation, with light-weight Imager modules, and detachable cables, ideal for mounting in tight spaces and for discreet applications.
Some example applications include:
 |
 |
 |
|
Law Enforcement An ideal choice for use in police investigations, the Sarix Modular camera offers a compact and easy to disguise solution, to keep an eye on both the suspect and surrounding environment at all times. This also includes applications behind false walls or ceilings - or, in the case of law enforcement applications, behind features like one-way glass (as pictured above) |
Retail With support for up to 2 imager modules, the Sarix Modular Camera can keep an eye on two points-of-view at once. This can allow for the capture of both the event, and the suspects face at once, helping to compile strong evidence in the case of robberies. Its compact design also allows for applications in small spaces - ideal for use in retail (as pictured above) |
Casino / Gaming Capable of delivering sharp, clear 24/7 footage, from up to 2 point-of-view, a single Sarix Modular system can keep watch of environments and people of interest, in a discreet manner. In the case of Casino / Gaming applications, it can help to prevent card cheating - as the camera is less noticeable than average models, so able to catch cheaters off guard. |
Sarix Modular Camera
The Sarix Modular Camera series offers users a compact and discreet video surveillance solution, made up of 3 main parts - the Sarix Modular Main Processor Unit, Up to 2 of the 3 available Imager modules, and a cable for each imager.
This allows for users to build their Sarix Modular camera how they want, with a design fit for maximum versatility and optimal installation.
Pelco Smart Analytics
The Sarix Modular series also features support for a selection of Pelco Smart Analytics, powered by Motorola solutions, each equipped to detect critical events with impressive accuracy, enabling fast and tactical responses to any possible security threat.
Supported Analytics:
Objects in Area - Triggers an event when a selected object type enters the region of interest
Object Loitering - Event is triggered when the selected object type stays in the region of interest for an extended amount of time.
Objects Crossing Beam - Triggers an event once a specified number of objects have crossed the configured directional beam (across the camera's FOV - can be uni- or bi-directional)
Object Appears or Enters Area - An event is triggered by each object that enters the region of interest (can be used for counting)
Object Not Present in Area - An event is triggered when there are no objects present in the region of interest
Objects Enter Area - Triggers an event once a specified number of objects have entered the region of interest
Objects Leave Area - Triggers an event once a specified number of objects have left the region of interest
Object Stops in Area - Event is triggered when an object is detected moving into the region of interest, and stops moving for a specified threshold time
Direction Violated - An event is triggered when an object moves in the prohibited direction of travel
Tamper Detection - An event is triggered when the scene unexpectedly changes (detects unauthorised camera repositioning, or if the lens becomes obstructed)
With this selection of analytics, and ONVIF compliance (allowing for easy integration with VideoXpert - Pelco's Video Management System) users are offered a wide range of Video Surveillance capabilities, to keep their site as secure as possible.
For more information on Pelco VideoXpert, and Camera Licences, please see the linked product page - VideoXpert Professional
Dimensions:
Processor Unit Only - 105mm x 123mm x 34mm
Including HD BNC connector - 114mm x 123mm x 34mm

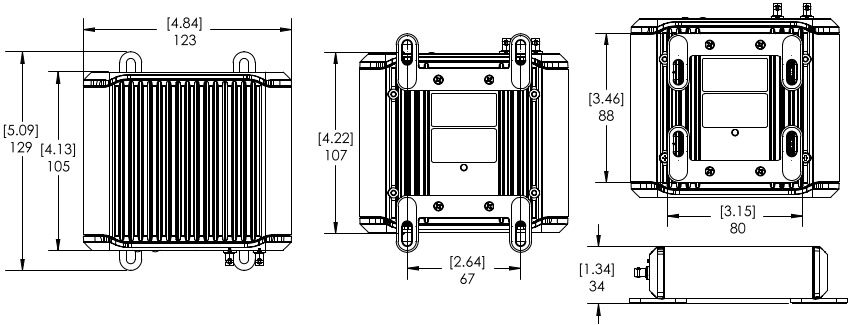

IDL0-PU2 with Bracket

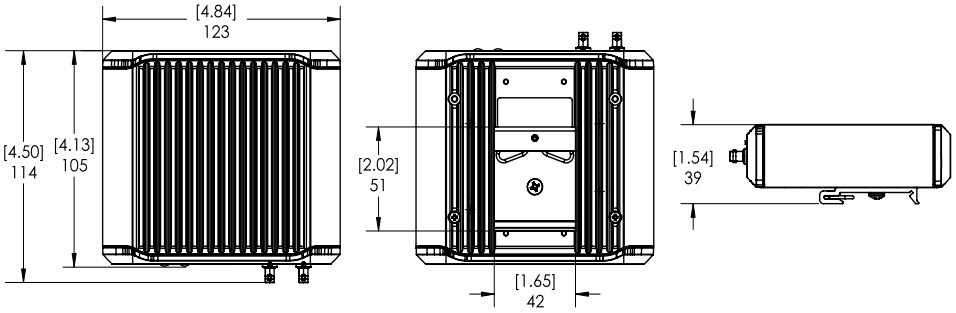

IDL0-PU2 with Din-Rail mount
