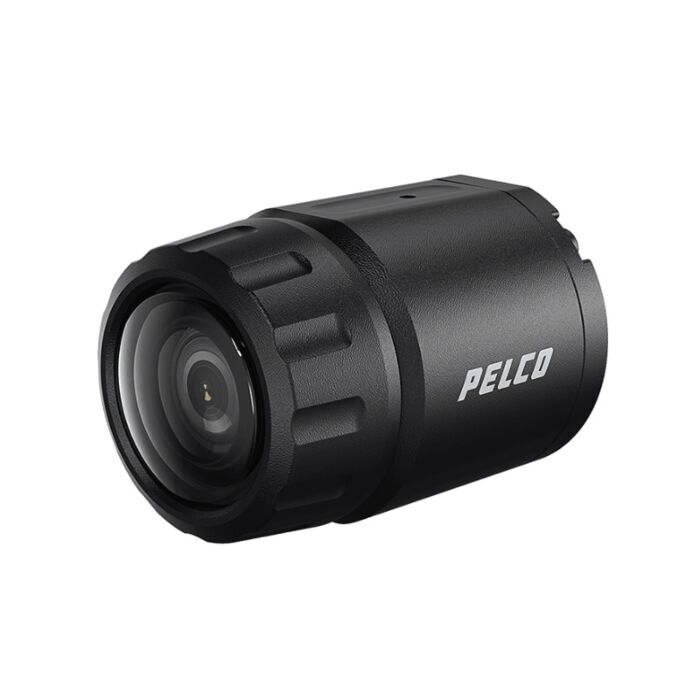

Pelco Sarix Modular IDL302-FXI 3MP Fixed Lens Micro-Bullet Imager
SKU: IDL302-FXI
Contact Us for Stock Levels
Key features:
- 3MP (2128 x 1536) Image Resolution
- 2.8mm Fixed Lens
- Customizable design - Imager modules require the IDL0-PU2 main processor unit
- Low-profile and Compact, useful for tight spaces / discreet applications
- Easy to Install
- Equipped with Weather Protection - IP66
- 120dB WDR (Wide Dynamic Range) - for improved performance in challenging lighting conditions
- Equipped with 3D Noise Reduction Filter, to improve image quality
- Supports for a selection of Pelco Smart Analytics
- Angle of View | Horizontal FOV - 110° | Vertical FOV - 80° |
- Automatic / Manual White Balance, and adjustable Backlight Compensation
- Supported Cable type and Connector - Coaxial cable, with a HD BNC connector
- ONVIF (Profile S, G, and T) Complaint
- NDAA Compliant
- 5 Year Warranty
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Please Note: Sarix Modular Camera Imagers are required for use with the IDL0-PU2 Main Processor unit - more information on this product can be found on this page under 'Related Products' and more information on how the Sarix Modular series works can be found in the 'Details' section
Pelco Sarix Modular Operations Manual
Pelco Sarix Modular Installation Manual
Pelco IDL302-FXI Quick Guide
Please note: this product may not be immediately available from UK stock. Please contact us before purchasing.
Details
The IDL302-FXI is a Micro-Bullet Imager module, with a fixed 2.8mm lens, for use in Pelco Sarix Modular Camera setups - working as a compact IP Camera when used with the Sarix Modular Main Processor unit
Equipped with 3MP resolution, and an imaging area of 5.4mm x 3.9mm (H x V), the IDL302-FXI offers a bullet style design with impressive image quality, at a max. image rate of 30 fps.
Sarix Modular Camera
The Sarix Modular Camera series offers users a compact and discreet video surveillance solution, made up of 3 main parts - the Sarix Modular Main Processor Unit, Up to 2 of the 3 available Imager modules, and a cable for each imager.
This allows for users to build their Sarix Modular camera how they want, with a design fit for maximum versatility and optimal installation.
Pelco Smart Analytics
The Sarix Modular series also features support for a selection of Pelco Smart Analytics, powered by Motorola solutions, each equipped to detect critical events with impressive accuracy, enabling fast and tactical responses to any possible security threat.
Supported Analytics:
Objects in Area - Triggers an event when a selected object type enters the region of interest
Object Loitering - Event is triggered when the selected object type stays in the region of interest for an extended amount of time.
Objects Crossing Beam - Triggers an event once a specified number of objects have crossed the configured directional beam (across the camera's FOV - can be uni- or bi-directional)
Object Appears or Enters Area - An event is triggered by each object that enters the region of interest (can be used for counting)
Object Not Present in Area - An event is triggered when there are no objects present in the region of interest
Objects Enter Area - Triggers an event once a specified number of objects have entered the region of interest
Objects Leave Area - Triggers an event once a specified number of objects have left the region of interest
Object Stops in Area - Event is triggered when an object is detected moving into the region of interest, and stops moving for a specified threshold time
Direction Violated - An event is triggered when an object moves in the prohibited direction of travel
Tamper Detection - An event is triggered when the scene unexpectedly changes (detects unauthorised camera repositioning, or if the lens becomes obstructed)
With this selection of analytics, and ONVIF compliance (allowing for easy integration with VideoXpert - Pelco's Video Management System) users are offered a wide range of Video Surveillance capabilities, to keep their site as secure as possible.
For more information on Pelco VideoXpert, and Camera Licences, please see the linked product page - VideoXpert Professional
Dimensions:
Imager Module Only - 42mm x 30mm (diameter)
Including HD BNC connector - 50mm x 30mm (diameter)
