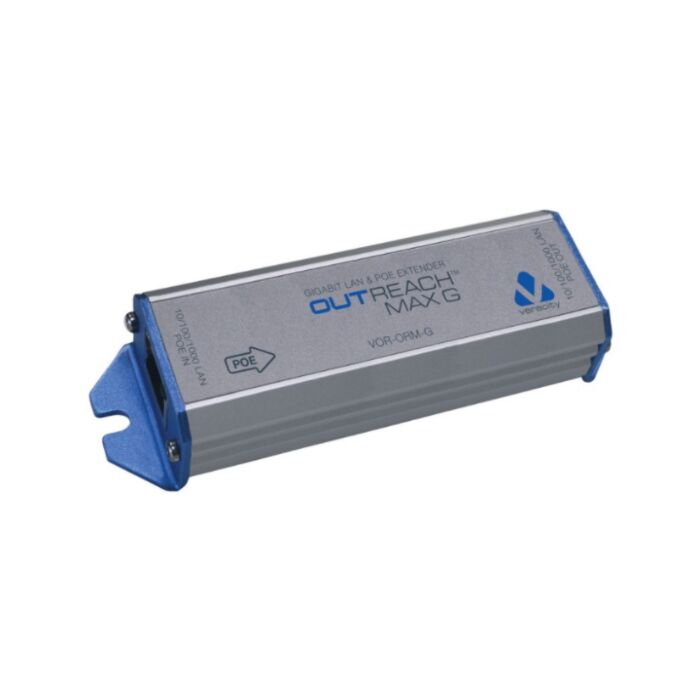

Veracity OUTREACH Max VOR-ORM-G G Gigabit Ethernet and POE Extender
SKU: VOR-ORM-G
Available for delivery in 2~3 working days
Key Features:
- Instantly Doubles Cable Range To 200m
- No Local Power Required
- Full Gigabit Ethernet
- Universal 10/100/1000 Compatibility
- Extends POE and POE Plus Up To 90 Watts
- Integrated Mounting Holes
- Two 5mm Diameter Mounting Holes
- Mounting Holes 11mm Apart
- LED Statius Indicators
- Dimensions: 119mm(L) x 36mm(W) x 25.4mm(H)
Please note that the VOR-ORM-G may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Details
The OUTREACH Max G extends gigabit Ethernet at twice the normal distance, instantly doubling the network range to 200 metres (656 ft) It is also able to provide full POE pass-through, ideal for deployment of wireless access points and IP Cameras.
If required, it is possible to daisy-chain further OUTREACH devices to achieve distances up to 700m or even beyond. However, it is recommended that the Veracity LONGSPAN long distance range should be used for this applications.
Diagram 1 - A single OUTREACH Max G doubles the cable range to a PoE IP Camera. Each cable segment can be up to 100 metres.

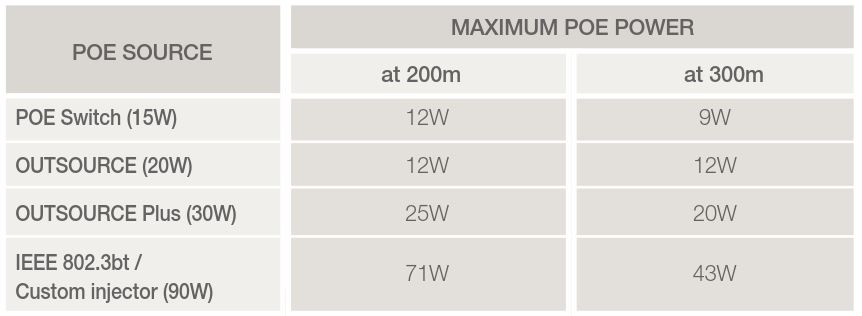

Diagram 2 - Veracity's OUTSOURCE Plus provides enough power to allow 300 metres (984 ft) of extension to a PoE Plus gigabit wireless access point, using two OUTREACH Max G units located at 100 metre intervals.

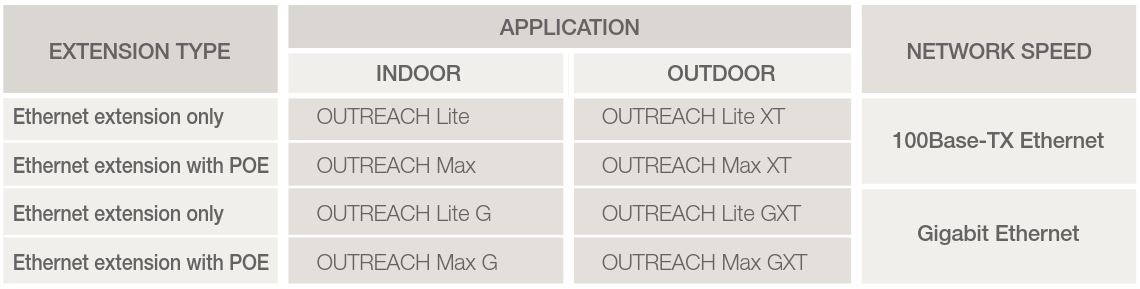

Choosing between OUTREACH models is straightforward, see the below guide for more information.
Ethernet Only - When only an Ethernet extension is required, the OUTREACH Lite models extend Ethernet only and do not forward POE.
POE Forwarding - If POE Forwarding is required as well as an Ethernet extension the it is recommended to use the OUTREACH Max models. These support all standards of POE forwarding.
External Units - If you require Ethernet extension suitable for outdoor use then the OUTREACH XT models are most suited. With IP67/Nema4X/6P standard enclosures and connections, this range will be well protected from the elements.
Gigabit Option - When a Gigabit Ethernet extensions is required, users will need to use the OUTREACH G models as these support full Gigabit data rates.
