Vigitron NetMux Vi00103 Ethernet and PoE Port Multiplexer
SKU: Vi00103
In Stock
- Buy 2 for £48.60 (Ex VAT: £40.50) each and save 10%
- Buy 3 for £45.90 (Ex VAT: £38.25) each and save 15%
- Buy 5 for £43.20 (Ex VAT: £36.00) each and save 20%
Key features:
- Designed to connect two IP/PoE devices to a PoE switch using a single Cat5/6 cable
- Reduces Installation Costs and Time
- Provides up to 37W to each of the 2 connected devices
- Indicates PoE presence on the Camera side (TX module)
- Compatible with IEEE 802.3af and IEEE 802.3at
- Connections - Vi00103RX: 2x male RJ45, 1x female RJ45 | Vi00103TX: 3x female RJ45
- Status LEDs - Vi00103RX: N/A | Vi00103TX: Port 1 PoE output, Green LED
- No external Power Source required
- Housing - ABS plastic, 94V-0 UL rating
- 10BASE-T and 100BASE-T Ethernet Interfaces
- Operating Conditions - Temperature: -40°c to +75°c | Humidity: 0 to 95% (non-condensing)
Applications:
- Adding a new IP Camera to an existing installation without extra wiring
- Home Security and Communication applications
- Cost-effective solution for powering two IP devices using a single cable
For more information on how the NetMux Vi00103 works please refer to this online guide
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details

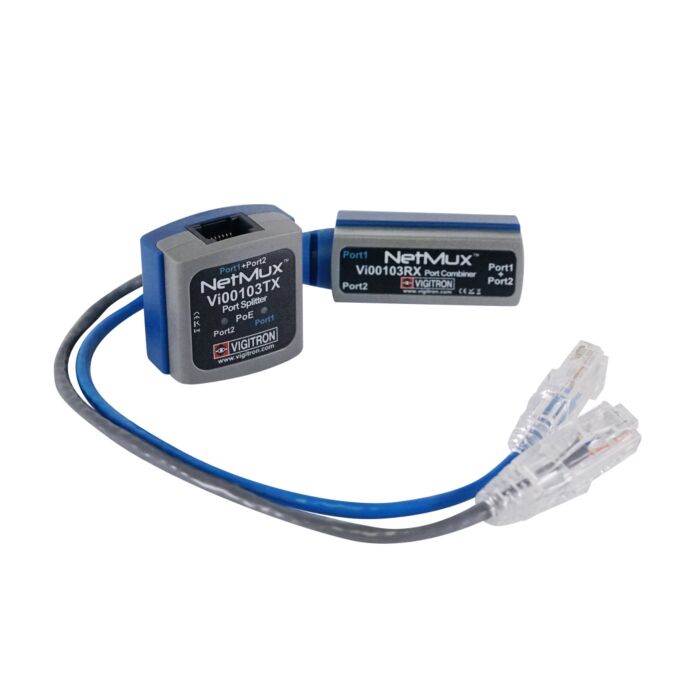

The NetMux Vi00103 is a Ethernet and PoE port multiplexer, from Vigitron, designed for an easy to use solution for connecting two IP / PoE devices using a single cable.
This product includes a Port Combiner (Vi00103RX) and a Port Splitter (Vi00103TX)
Vi00103RX:

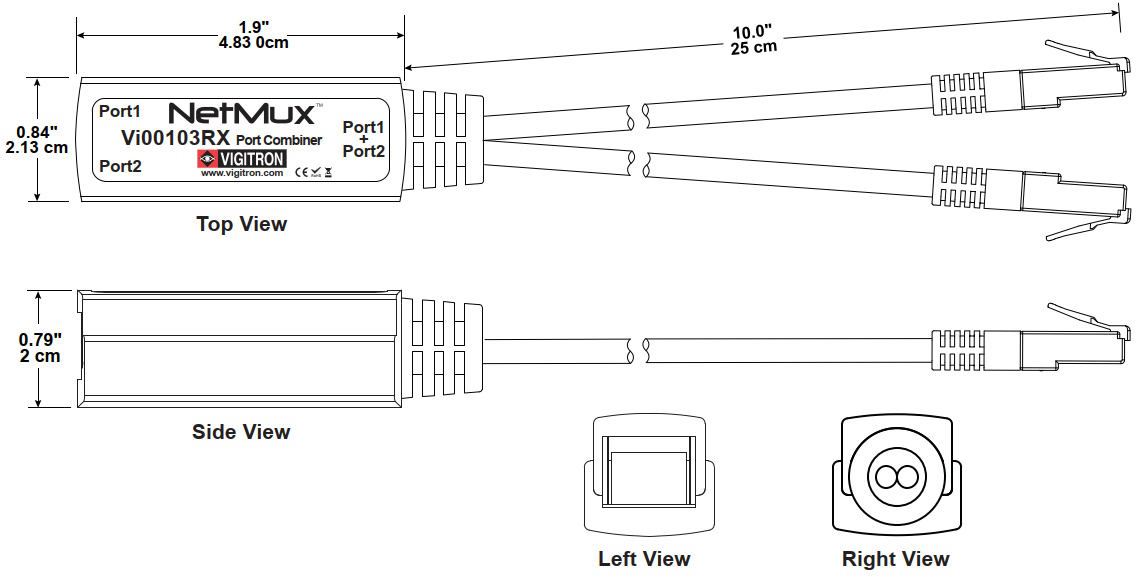

The RX combines two IP/PoE signals and transmits them through through a single cat5/6 cable. It is designed with two built-in cat 5 pigtail cables to connect to the PoE switch.
Vi00103RX:

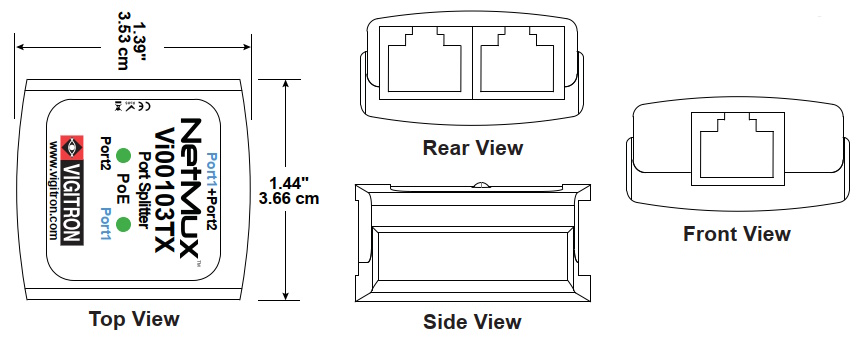

The TX seperates combined signals and connects them to two PoE switch ports. It is designed with two integrated LEDs to provide an indication of the PoE status for each port.
Applications:
