Vivotek MA9322-EHTV 20MP Extended Temperature Multi-Sensor Adjustable Dome Camera

Availability: Available for delivery in 7~10 days

£1,572.00 Incl VAT Excl VAT. £1,310.00

Vivotek MA9322-EHTV

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

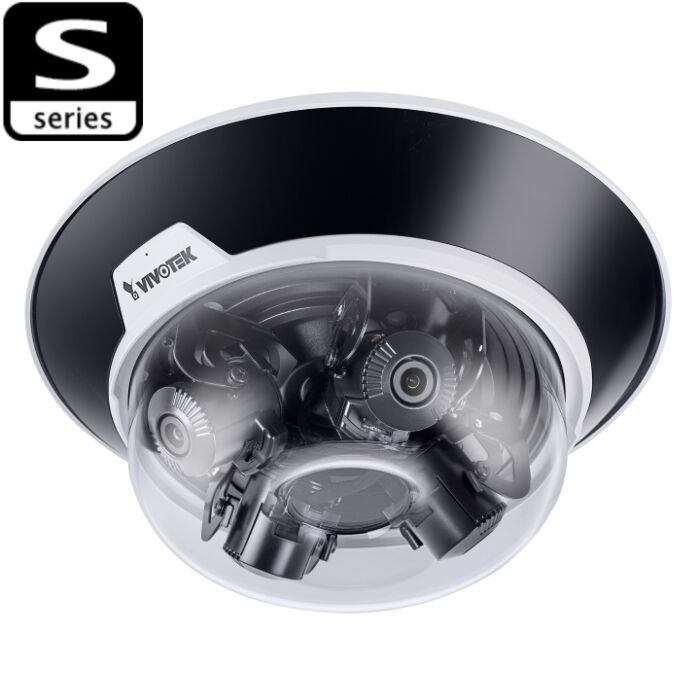

The Vivotek MA9322-EHTV is a 20 megapixel total resolution multi-sensor, multi-directional dome camera equipped with four independent 5MP CMOS sensors and IR illuminators effective 30m.

Each sensor fitted in the MA9322-EHTV features a 3.7~7.7mm motorised focus lens and 3-axis design that runs along a circular track to allows for 360° coverage.

This camera is able to capture every angle from a singular camera and IP address to help reduce the amount of cameras needed saving on both installation time and cost.

Featuring Vivotek's Smart Stream III technology and H.265 codec support, bandwidth can be reduced by up to 90% all while maintaining its high quality image.


Smart Stream III

Included Accessories:
- Quick installation guide
- Warranty card
- Alignment sticker
- Desiccant bag
- Screw driver
- Screws pack


Trend Micro
3 year free trial version from manufacturing time (click for more info)

Extend License here


Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.


Vivotek MA9322-EHTV User Manual
Vivotek MA9322-EHTV Quick Installation Guide
Vivotek 180°, 360° and Multi-Sensor Flyer
Vivotek Product Brochure 2020

Product Datasheets

Vivotek MA9322-EHTV 20MP Extended Temperature Multi-Sensor Adjustable Dome Camera Datasheet (0.62MB)

Key Features

- H.265 compression technology
- 4 x 5MP independent sensors, adjustable views
- 30fps @ 2688 x 1920 per sensor
- Smart Stream III to optimise bandwidth efficiency
- WDR Pro (120dB) for unparalleled visibility in extremely bright and dark environments
- SNV (Supreme Night Visibility) for low light conditions
- Trend Micro IoT Security
- Built-in IR illluminators, effective up to 30 meters
- Weather resistant IP66 and vandal resistant IK10 rated housing
- Built-in microphone


MA9322-EHTV Dimensions

Vivotek Naming Rule

Additional Information

Weight 2700.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.265,H.264,MJPEG
Audio Two way, built in microphone
Indoor / Outdoor Outdoor
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 2688 x 1920
Min. low-light lux 0.005
Supply Volts 24V AC, PoE
Lens Mount N/A
Lens Focal Length 3.7~7.7mm
Viewing Angle 40° ~ 84.4° Horizontal Field of View
Aspect ratio 4:3
Megapixels 4 x 5MP
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max. 30W
Warranty 3 Years
Launch Date Summer 2020
