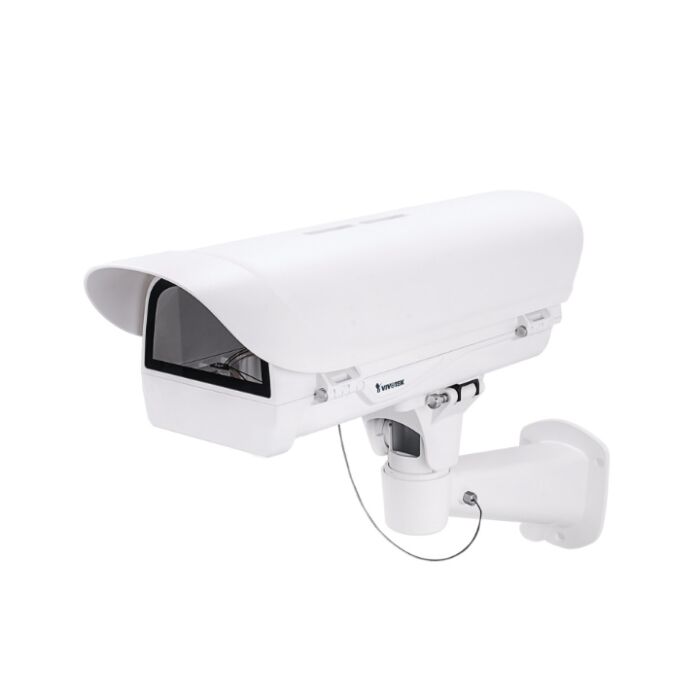

Vivotek AE-23E-v2 Box Camera Enclosure
SKU: AE-23E-v2
Out of stock
Key Features:
- Weather-proof Enclosure - Rated IP68
- Vandal-proof - IK10
- Cast Aluminium Housing
- IEEE 802.3bt PoE Compliant
- Window Demister Heater and Fan
- Adjustable Sunsield
- Side-opening Alarm Switch
- VAIR Illuminators (Optional)
- Operating Temperature - -20°c ~ 65°c (~50°c with IR on)
- Max. Output Power Budget - | 25W (through 30W PoE PSE) | 48W (through 60W PoE PSE) | 72W (through 95W PoE PSE) |
- Power Consumption - | Window Heater - 10W | Fan - 2W | Others - 2W |
This enclosure is compatible with all Vivotek Box Cameras
To see compatible cameras please look here, or on this page under 'Related Products'
Please Note: The AE-23E-v2 has an Input Voltage of IEEE 802.3 bt, or, PoE 50~57VDC
Vivotek AE-23E-v2 Installation Guide
Vivotek Product Brochure
This Product currently has Limited Stock - Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The AE-23E-v2 is a Supreme Series outdoor enclosure, from Vivotek, desiged for use with any Vivotek Box Camera.
With an IK10 and IP68 rated cast aluminim design, equipped with demisting windows heater / fan, support for side-opening alarm switch, adjustable sunshield, and optional VAIR (Vari-Angle IR) Illuminator, the AE-23E-v2 will allow your box camera to work effictively in outdoor applications.
Included Accessories:
- Installation Guide
- Screw Kit
- Wall Mount Bracket (AM-21E)
- Sunshield (AE-2S1)

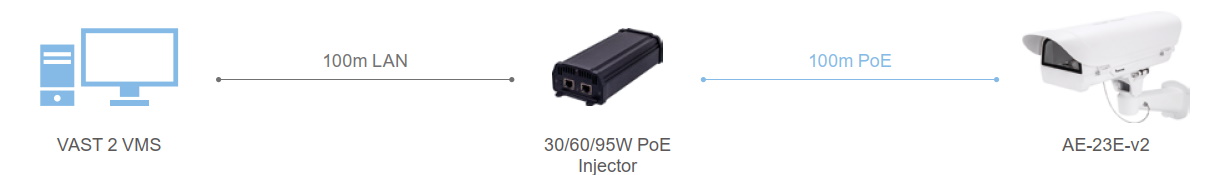

Application:

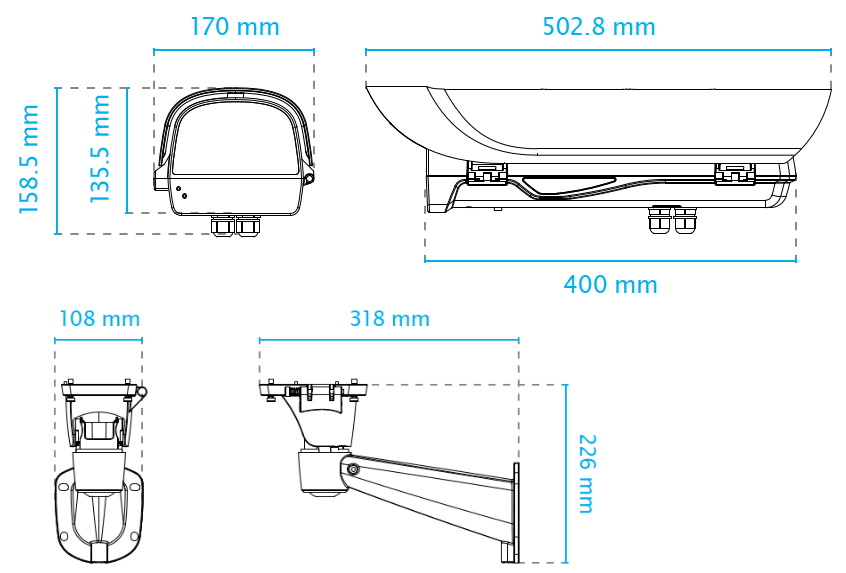

Dimensions:
Enclosure -

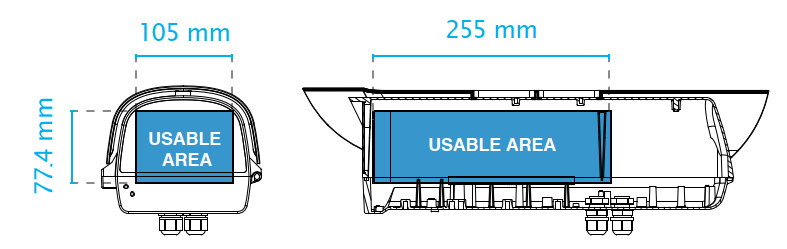

Usable Area -
