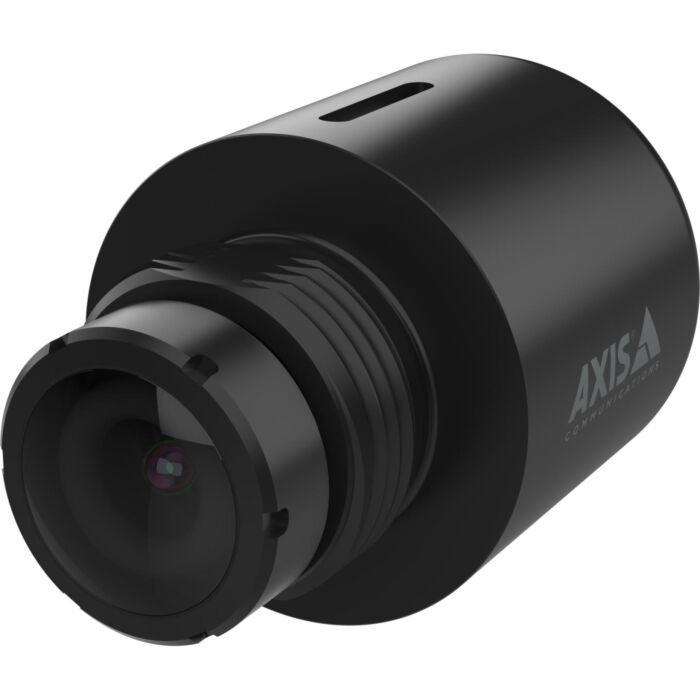

Axis F2135-RE Fisheye Sensor 02641-001
SKU: 02641-001
Out of stock
Key Features:
- 2nd generation
- Up to 60fps at 1080p and up to 180fps at 720p
- 1.98mm focal length
- 185° horizontal field of view
- Rugged sensor unit
- IP66/IP67/IP6K9K weather-resistant rating
Please note: this product is only compatible with 2nd generation main units and cables.
Please see the frequently bought-together section for compatible units.
Please note: the F2135-RE is just the sensor and the main unit and cable needs to be purchased separately.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F2135-RE has been designed for use with 2nd generation main units and cables with SMA-FAKRA connectors to withstand vibration and ensure a ruggedised installation.
The F2135-RE has been designed for both indoor and outdoor applications in machines, buses, and other vehicles. This sensor can be installed almost anywhere, in tight spaces, behind glass, metal or even plastic sheeting.
The sensor is able to deliver high-quality video even in challenging and low-light conditions thanks to features such as ForensicWDR and Lightfinder technology. ForensicWDR provides clarity in scenes where there are both dark and light areas and Lightfinder technology captures sharp, colour images in low light. With a 185° horizontal field of view, the unit is ideal when a wide area of coverage is needed.
Discreet installation is guaranteed with only the small sensor visible externally. The F2135-RE design is based on a divided network camera concept which allows for maximum flexibility. Cable type and length (up to 30 m/ 98 ft) are chosen based on your specific needs. Furthermore, there’s a variety of accessories available for mounting options and flexible installation.
| F2115-RE | |
| Image Sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | 1.98mm, F2.0 For 1080p: 185° horizontal field of view For 720p: 120° horizontal field of view |
| Minimum Illumination | Colour: 0.1lux |
| Day and Night | Fixed IR-cut filter |
| Shutter Speed | With AXIS F9111: 1080p, 25/30 fps: 1/20000 s to 1.5 s 1080p, 50/60 fps: 1/27000 s to 1 s HDTV 720p, 175/180 fps: 1/32500 s to 0.5 s With AXIS F9104-B, F9114 and F9114-B: 1080p, 25/30 fps: 1/20000 s to 1.5 s HDTV 720p, 50/60 fps: 1/32500 s to 0.5 s |
| Casing | IP67-, IP69-, IP6K9K-, NEMA 4X-rated Aluminum Color: black NCS S 9000-N |
| Power | Typical 1W, max. 1.7W |
| Operating Conditions | -40°C to 60 °C (-40°F to 140 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (-40°F) Humidity 10–100% RH (condensing) |
| Dimensions | 46 mm (1.9 in) ø 29.8 mm (1.2 in) |
| Included Accessories | Installation guide |
| Required Hardware | AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit (Must be purchased separately) |
