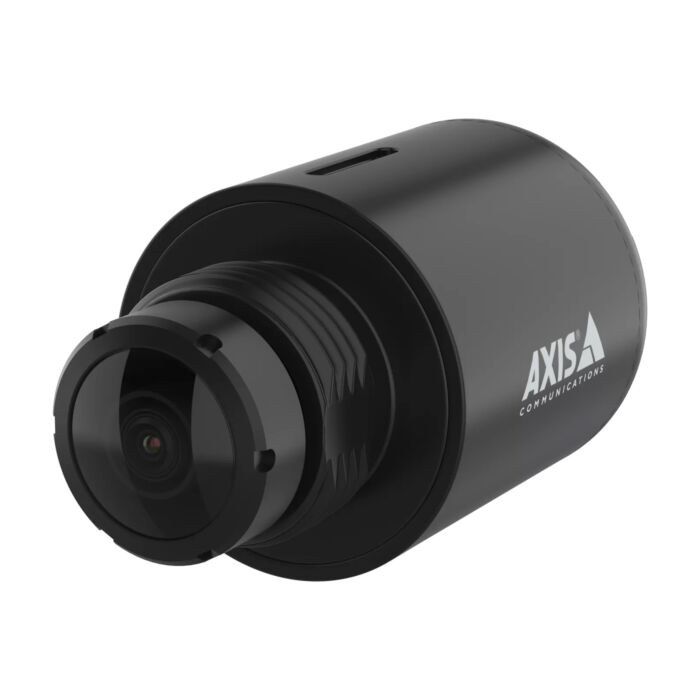

Axis F2137-RE Fisheye Sensor
SKU: 02869-001
Contact Us for Stock Levels
Key Features:
- 5MP resolution
- 1.98mm focal length
- 185° horizontal field of view
- Rugged sensor unit with SMA connector
- Can be installed in vehicles and machinery
- IP66/IP67/IP6K9K rated weather-resistance
- 5 year warranty
Please note: the F2137-RE is just the sensor; the main unit and cable must be purchased separately.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F2137-RE Sensor Unit delivers 5MP resolution and 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Designed to work with Axis F91 Main Units, it can be combined with up to three other sensor units for maximum flexibility. Reliable under rough conditions, it has an operating temperature range from up to -40°C to 60°C. It's compatible with the same accessories as other F21 sensors to simplify procurement, installation, and upgrade. Furthermore, this rugged sensor features SMA connectors and can withstand shock and vibration.
| F2137-RE | |
| Image Sensor | 1/2.78" progressive scan RGB CMOS |
| Lens | 1.98mm, F2.0 185° horizontal field of view |
| Minimum Illumination | Colour: 0.25lux |
| Day and Night | Fixed IR-cut filter |
| Casing | IP66-, IP67-, IP6K9K-, NEMA 4X-rated Aluminum Colour: black NCS S 9000-N |
| Power | Typical 1W, max. 1.8W |
| Operating Conditions | -40°C to 60 °C (-40°F to 140 °F) Humidity 10–100% RH (condensing) |

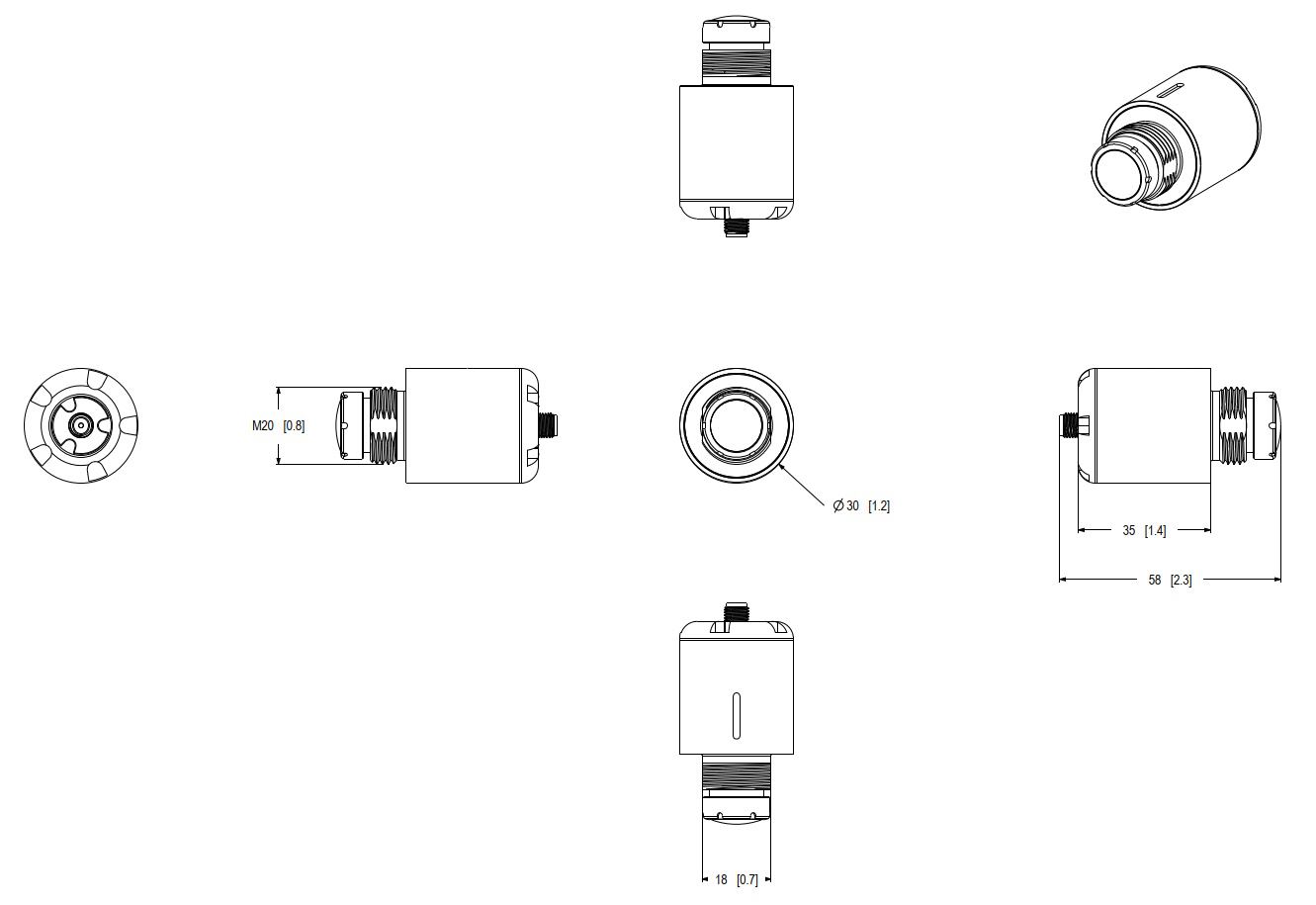

| Dimensions | 58 mm (2.28 in) ø 29.8 mm (1.2 in) |
| Box Content | Sensor, Installation guide |
| Required Hardware | AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit, AXIS TU6007-E Cable (Must be purchased separately) |
