Axis F7225-RE Pinhole Sensor 02363-001
SKU: 02363-001
Out of stock
Key Features:
- 2nd generation
- Up to 60fps at 1080p and up to 180fps at 720p
- 3.7mm focal length
- 97° horizontal field of view
- Extremely discreet design
- IP66/IP67 weather-resistant rating
Please note: this product is only compatible with 2nd generation main units and cables.
Please see the frequently bought-together section for compatible units.
Please note: the F7225-RE is just the sensor and the main unit and cable needs to be purchased separately.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F7225-RE has been designed for use with 2nd generation main units and cables with SMA-FAKRA connectors to withstand vibration and ensure a ruggedised installation.
The F7225-RE has been designed for both indoor and outdoor applications and can operate in temperatures from -30°C ~ 55°C.
Designed for extremely discreet surveillance, only the sensor is visible. Based on a divided network camera concept, the lens is designed for use with Axis F91 main units to ensure maximum flexibility. Not only this but the F4105-RE can be installed in tight places, behind metal, glass or plastic sheets.
The F7225-RE is able to deliver high-quality video even in challenging and low-light conditions thanks to features such as ForensicWDR. ForensicWDR provides clarity in scenes where there are both dark and light areas. With a 97° horizontal field of view, the unit is ideal when a wide area of coverage is needed.
| F2115-RE | |
| Image Sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | 3.7mm, F2.5 For 1080p: 97° horizontal field of view For 720p: 58° horizontal field of view |
| Day and Night | Fixed IR-cut filter |
| Minimum Illumination | Colour: 0.3lux at 50 IRE, F2.5 |
| Shutter Speed | With AXIS F9111: 1080p, 25/30 fps: 1/20000 s to 1.5 s 1080p, 50/60 fps: 1/27000 s to 1 s HDTV 720p, 175/180 fps: 1/32500 s to 0.5 s With AXIS F9104-B, F9114 and F9114-B: 1080p, 25/30 fps: 1/20000 s to 1.5 s HDTV 720p, 50/60 fps: 1/32500 s to 0.5 s |
| Resolution | Maximum 1920x1080 HDTV 1080p |
| Casing | IP66/67-rated aluminum front casing and plastic rear cover |
| Power | Typical 0.9 W, max 1.9 W |
| Operating Conditions | -30 °C to 55 °C (-22 °F to 131 °F) Humidity 10-85% RH (non-condensing) |

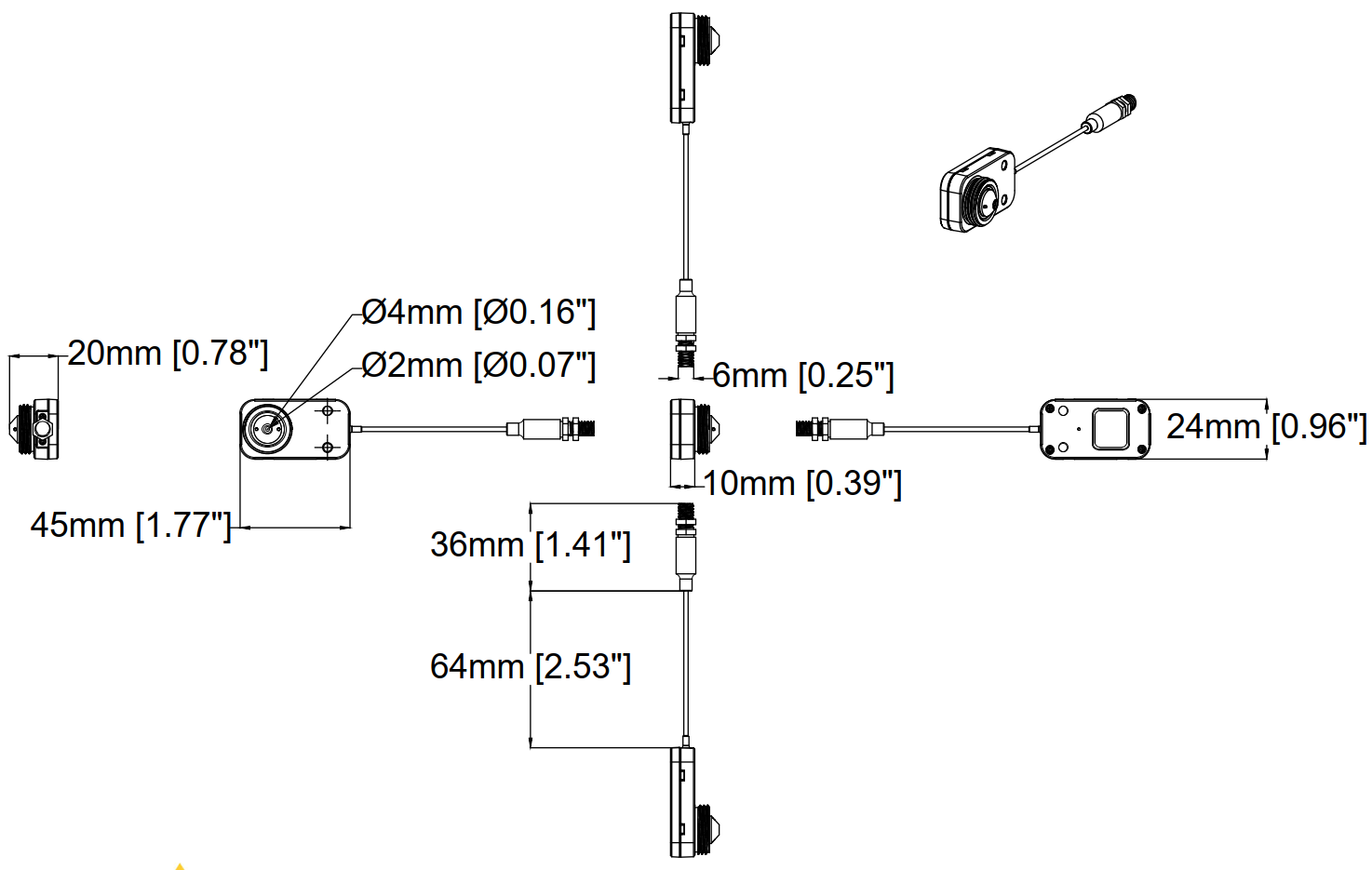

| Dimensions | 45 x 25 x 20 mm (1.8 x 0.98 x 0.79 in) |
| Included Accessories | Installation guide AXIS F8202 Straight Mounting Bracket |
| Required Hardware | AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit (Must be purchased separately) |
