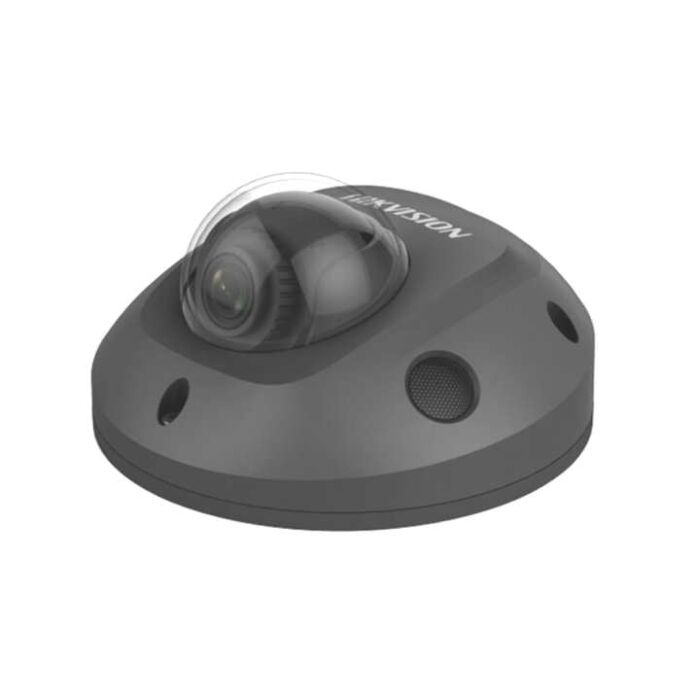

Hikvision DS-2CD2545FWD-IS/G 4MP IR Fixed Grey Mini Dome Network Camera 2.8mm

In Stock
Only 1 left

- 4MP Mini Dome Camera

- Grey Camera Casing

- Powered by Darkfighter.

- 2688 × 1520@ 25 fps.


- H.265+, H.265, H.264+, H.264.

- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB.

- 2.8, 4, 6 mm fixed lens.

- 1/2.5" Progressive Scan CMOS.

- Color: 0.008 Lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR.

- IP66 Rating (Weather Resistant)

- 2 audio inputs, 1 audio output.


Hikvision Product CatalogueHikvision Quick Guide Hikvision Network Camera User Manual Mini Dome Quick Start Manual

Product Datasheets

Hikvision DS-2CD2545FWD-IS/G 4MP IR Fixed Grey Mini Dome Network Camera 2.8mm Datasheet (2.32MB)

G1 Family Badge

For information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2CD2545FWD-IS/G 4MP IR Fixed Grey Mini Dome Network Camera 2.8mm
  2. +
  3. Samsung EVO Plus 128GB MicroSDXC Card with Adapter MB-MC128HA/EU
  4. +
  5. HIKV12VDC 12V DC PSU for Hikvision Cameras
  6. +
  7. Level One POI-2002 Single Port POE Injector
Total price: £0.00INCL VAT
Ex Vat: £0.00

The Hikvision DS-2CD2545FWD-IS/G is a 4MP IR mini dome camera with a 1/2.5" progressive scan CMOS chip, and a fixed focal length of either 2.8mm. Users can access their camera via web browsers or smart phone due to Hik-Connect.

Armed with H.265+/H.265 compression, this camera gives users a huge saving on storage and bandwidth usage compared to previous H.264 compression used. This is then supported by an on-board Micro SD/SDHC/SDXC card slot, which allows up to 128gb extra storage.

Powered by Darkfighter, the DS-2CD2545FWD-IS/G comes with image enhancing features such as 120dB wide dynamic range (WDR), 3D digital noise reduction (3D DNR), high light compensation (HLC), back light compensation (BLC) which allows detailed, high quality image in low light environment.

It also comes with face detection, scene change detection, line crossing detection and intrusion detection which can send a notification to users when it detects an alarm.

With IP66 weather-proof housing, IK8 vandal-proof housing, a working temperature of -30 °C to +60 °C and an IR range of up to 10m, it makes this camera perfect for either indoor or outdoor use. Supported by a panoramic movement of -30° to 30°, a rotation of 0° to 360° and a tilt of 0° to 75°.

This is powered by PoE or with a 12V DC power supply. PSU sold separately.

2.8mm - Horizontal field of view: 109° 4mm - Horizontal field of view: 88° 6mm - Horizontal field of view: 53° 12mm - N/A°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Image chip size 1/2.5"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 2688 X 1520
Supply Volts 12V DC or PoE
Lens Mount M12 mount
Lens Focal Length 2.8mm
Viewing Angle Horizontal Field of View: 109°, Vertical Field of View: 60°, Diagonal Field of View: 131°
Aspect ratio N/A
Megapixels 4 MP
Supplied with lens Yes
Accepts auto-iris lens No
IR Range Up to 10m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 10W
Warranty 3 Years
Launch Date Spring 2019
