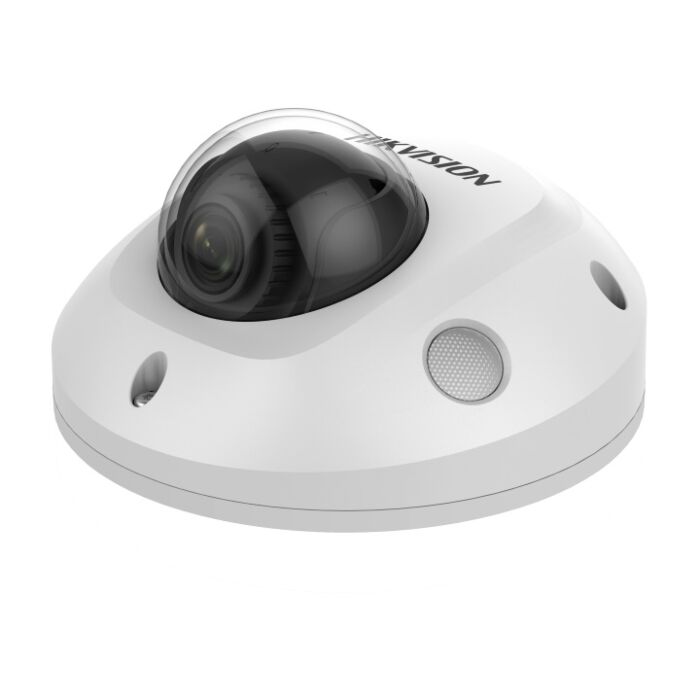

Hikvision DS-2CD2545FWD-IS 4MP IR Fixed Mini Dome Network Camera

In Stock

The Hikvision DS-2CD2545FWD-IS is a 4MP IR mini dome camera with a 1/2.5" progressive scan CMOS chip, and a fixed focal length of either 2.8mm or 4mm.

Powered by Darkfighter, the DS-2CD2545FWD-IS comes with image enhancing features such as 120dB wide dynamic range (WDR), 3D digital noise reduction (3D DNR), high light compensation (HLC), back light compensation (BLC) which allows detailed, high quality image in low light environments.

Smart Feature Set: - Line crossing detection - Intrusion detection - Object removal detection - Unattended baggage detection - Scene change detection - Face detection

With an IP66 weather-proof housing, IK8 vandal-proof housing, a working temperature of -30 °C to +60 °C and an IR range of up to 10m, it makes this camera perfect for either indoor or outdoor use. We particularly like this camera for use at front doors.


Please note, this camera does not come with a power supply.

Hikvision Network Camera User Manual Hikvision Product Catalogue Hikvision Product Guide

Product Datasheets

Hikvision DS-2CD2545FWD-IS 4MP IR Fixed Mini Dome Network Camera Datasheet (1.17MB)

G1 Family Badge

For information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2CD2545FWD-IS 4MP IR Fixed Mini Dome Network Camera
  2. +
  3. Level One POI-2002 Single Port POE Injector
  4. +
  5. Samsung EVO Plus 128GB MicroSDXC Card with Adapter MB-MC128HA/EU
  6. +
  7. HIKV12VDC 12V DC PSU for Hikvision Cameras
  8. +
  9. Hikvision DS-1280ZJ-DM46 Junction Box
Total price: £0.00INCL VAT
Ex Vat: £0.00
  • This item: Hikvision DS-2CD2545FWD-IS 4MP IR Fixed Mini Dome Network Camera £156.00

- Powered by Darkfighter - 2688 × 1520@25fps - 120dB WDR/BLC/3D DNR/ROI/HLC - H.265+, H.265, H.264+, H.264 - Built-in micro SD/SDHC/SDXC card slot, up to 128GB - 1/2.5" Progressive Scan CMOS - Color: 0.008 Lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR - IP66 - 2 audio inputs, 1 audio output

2.8mm - Horizontal field of view: 109° 4mm - Horizontal field of view: 88° 6mm - Horizontal field of view: 53° 12mm - N/A°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Lux Levels - For more information on Lux Levels please look here.

Lux levels

Image chip size 1/2.5"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 2688 X 1520
Supply Volts 12V DC or PoE
Lens Mount M12 mount
Aspect ratio N/A
Megapixels 4 MP
Supplied with lens Yes
Accepts auto-iris lens No
IR Range Up to 10m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 10W
Warranty 3 Years
Launch Date Spring 2019
