477.30

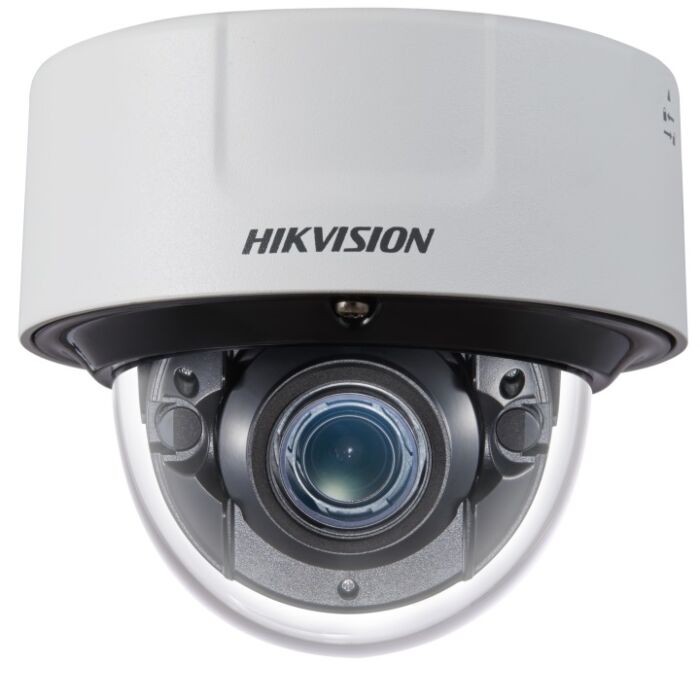

Hikvision DS-2CD5146G0-IZS 4MP Vari-focal Dome Network Camera

Availability: Contact Us for Stock Levels

Hikvision DS-2CD5146G0-IZS

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2CD5146G0-IZS is a 4MP (2560 × 1440) vari-focal dome camera with a motor-driven lens. It has a focal length of 2.8mm - 12mm and a 1/1.8" progressive scan CMOS chip.

With H.265+ compression, users get a huge saving on bandwidth and storage usage compared to previous H.264 compression. This is supported by the on-board Micro SD/SDHC/SDXC allowing up to an extra 256GB of storage.

Armed with 6 behavior analyses including intrusion detection, object removal detection, line crossing detection, unattended baggage detection and region entrance & exiting detection, this camera also comes with face detection, audio exception detection, scene change detection and defocus detection.

Powered by Darkfighter, the DS-2CD5146G0-IZS comes with enhancing features such as 140dB wide dynamic range (WDR), high light compensation (HLC), back light compensation (BLC), and 3D digital noise reduction (3D DNR), which gives users a detailed, high quality image in low-light environments.

This camera comes with IK10 vandal-proof housing, an IR range of up to 30m and a working temperature of -30°C to 60°C, making it perfect for outdoor environments. Although, it can be for either indoor or outdoor use. It also has an angle adjustment, panoramic - 0° to 355°, tilt - 0° to 75° and rotate - 0° to 355°.

PSU NOT INCLUDED. It is powered by either a 12VDC power supply or PoE.


Hikvision Product Catalogue Hikvision 5 Series Catalogue Hikvision Quick Guide Hikvision DS-2CD5146G0-IZS User Manual Hikvision DS-2CD5146G0-IZS Quick Start Guide Hikvision DS-2CD5146G0-IZS Security Guide

Product Datasheets

Hikvision DS-2CD5146G0-IZS 4MP Vari-focal Dome Network Camera Datasheet (0.98MB)



5line badge


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

+
+
+

Key Features

- 1.8” Progressive Scan CMOS.
- Powered by Darkfighter.
- 6 behavior analyses, 3 exception detection's, face detection.
- H.265, H.265+, H.264+, H.264.
- 2560 × 1440 @ 30fps.
- 5 defined streams and up to 5 custom streams supported.
- 140dB WDR / 3D DNR.
- IK10.
- On-board storage up to 256 GB.
- Color: 0.002 Lux @ (F1.2, AGC ON).

Additional Information

Weight 900.0000
Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2560 X 1440
Supply Volts 12V DC or PoE
Lens Mount Integrated
Lens Focal Length 2.8~12mm
Viewing Angle Horizontal Field of View: 109.2° to 38.9°, Vertical Field of View: 56.2° to 21.9°, Diagonal Field of View: 134.5° to 45°.
Aspect ratio N/A
Megapixels 4 MP
Supplied with lens Yes
IR Range Up to 30m
ONVIF Compatible Yes
Power Consumption max. 7.6W
Warranty 3 Years
Launch Date Spring 2019

Product Questions (0)

No questions yet. Be the first to ask the question!

Shipping and Returns

We offer free delivery via courier throughout the mainland UK. You will receive a confirmation email from us as soon as your goods are dispatched, and this will confirm your carrier and tracking number so you can monitor your order's progress. Any items sent via our standard free delivery will typically be with you within three business days.

For those requiring their order urgently, we offer a range of next working day and Saturday delivery options which you can select at checkout. Please note we must receive your order by 3.30pm, Mon-Fri in order to guarantee your order is with you by the next working day.

We are also able to offer shipping to any country in the world. We charge a flat fee of £15 + VAT for any country within Europe, which will be available to you at checkout if your country is listed on our International Shipping page.

If you're based outside the EU, please contact us at sales@use-ip.co.uk with your order details and full delivery address, and we'll get back to you quickly with a quotation including shipping costs.

Please note we can only accept payment and provide quotations in GBP £ Sterling, and that we must receive full payment before we are able to ship out any goods.
