Hikvision DS-2CD6924G0-IHS 180° 8MP PanoVu Network Camera

Contact Us for Stock Levels
SKU
DS-2CD6924G0-IHS

Key Features

180° PanoVu

Splicing Image

4 x 2.8mm Lens

Built-in Heater

Ultra-Low Temperature Start Ip (to -40°)

3D DNR, BLC, HLC, Defog

Smart Human Density Counting

Public Behaviour Analysis

IP67 Weather and Dust Resistant Rating

IK10 Vandal Resistant Rating

Four IR LEDs Up To 20m

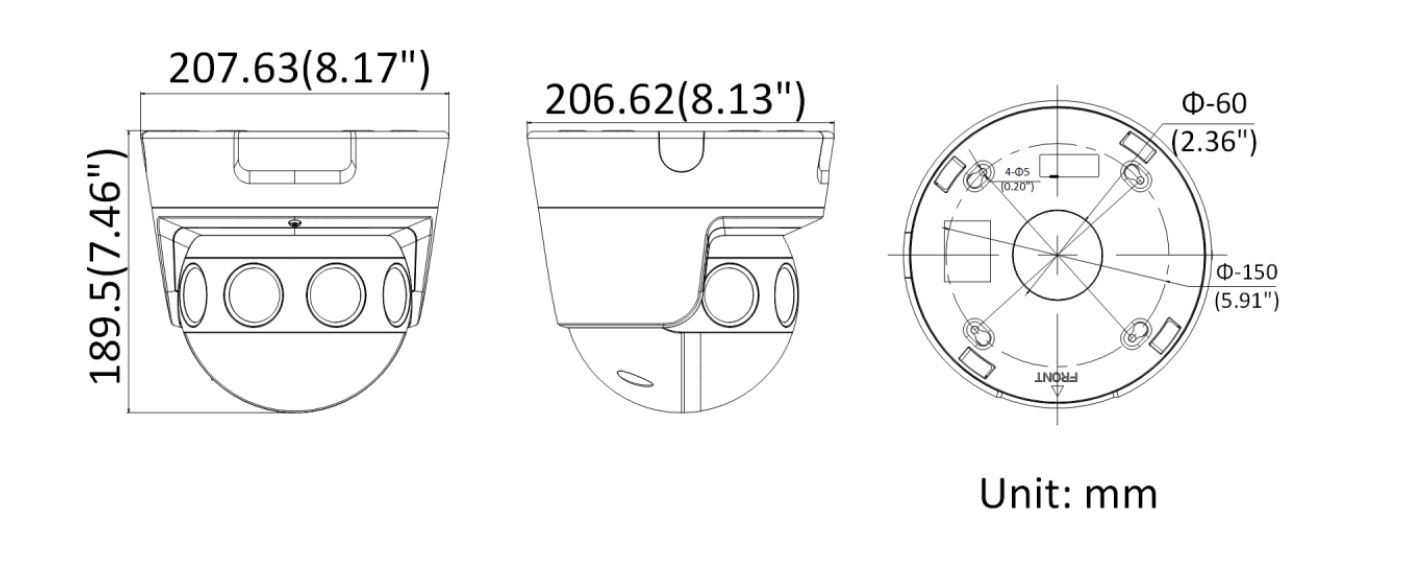

Camera Dimensions: 189.5mm x 207.63mm x 206.62mm

Powered by PoE or 12v DC

Audio I/O

2 x Alarm I/O

Built-in Micro SD/SDHC/SDXC Slot


Hikvision Product Catalogue

Hikvision Network Camera User Manual

Product Datasheets

Hikvision DS-2CD6924G0-IHS 180° 8MP PanoVu Network Camera Datasheet (1.15MB)

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera



Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

  1. Hikvision DS-2CD6924G0-IHS 180° 8mp PanoVu Network Camera
  2. +
  3. Hikvision DS-1602ZJ Wall Mount Bracket
  4. +
  5. Tenda PoE30G-AT 30W PoE Injector
Total price: £0.00INCL VAT
Ex Vat: £0.00

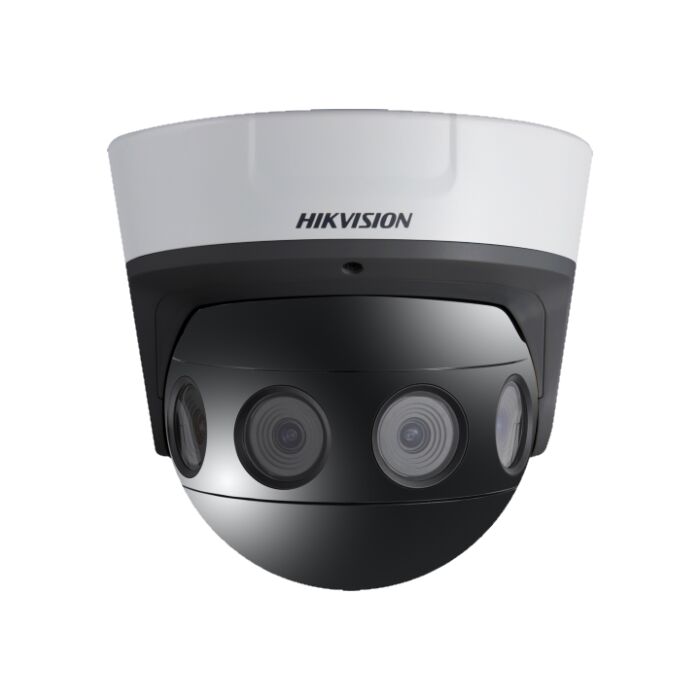

The Hikvision DS-2CD6924G0-IHS is a PanoVu camera made up of 4 x 2.8mm lenses providing a 180° horizontal field of view, and 8MP resolution.

Using smart human density counting and public behavior analysis, the DS-2CD6924G0-IHS has been designed to increase the safety and surveillance of large spaces, particularly those open to the public such as parks and city centers.

The DORI Distance (Detect, Observe, Recognise, Identify) suggests the cameras ability to distinguish people or objects within its field of view. The DORI distance is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015. Please see below for the DS-2CD6924G0-IHS DORI.

Detect Observe Recognise Identify
63.2m 25.1m 12.6m 6.3m

Featuring a built in heater which enables the DS-2CD6924G0-IHS to defog the lenses, the camera is suitable for use in challenging conditions, it can even work in temperatures as low as -40°, The DS-2CD6924G0-IHS has also been given a weather and dust resistant rating of IP67 and a vandal resistant rating of IK10 adding to it's suitability for use indoors, outdoors and in public spaces. It also features four IR LED lights which can reach up to 20 metres, this will support the camera in it's low light capabilities.

Onboard the camera is a slot suitable for a MicroSD/SDHC/SDXC enabling users to record on board the device. The DS-2CD6924G0-IHS also features both Audio Input and Output connections, as well as two Alarm Input and Output connections, providing users with the option of connecting 3rd party devices such as speakers, microphones, PIR lighting and smoke detectors.

Finally, the camera does not come supplied with a power supply. Whilst the DS-2CD6924G0-IHS can be powered via a 12v DC PSU we recommend using PoE (Power over Ethernet) where possible. This minimizes the need for multiple cables and simplifies the installation. Please note that a standard PoE connection will not provide enough power to support this camera so a PoE Injector is required, our recommended option is listed above in the Frequently Brought Together section.

DS-2CD6924G0-IHS

Specs
Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Focus Assist
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 3840 X 2160
Min. low-light lux 0.003
Supply Volts 12V DC or PoE
Lens Mount M16
Lens Focal Length 2.8mm
Viewing Angle 180° Horizontal Field of View
Aspect ratio 16:9
Megapixels 8 MP
Supplied with lens Yes
IR Range Up to 20m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max 24W
Warranty 3 Years
Launch Date August 2021
