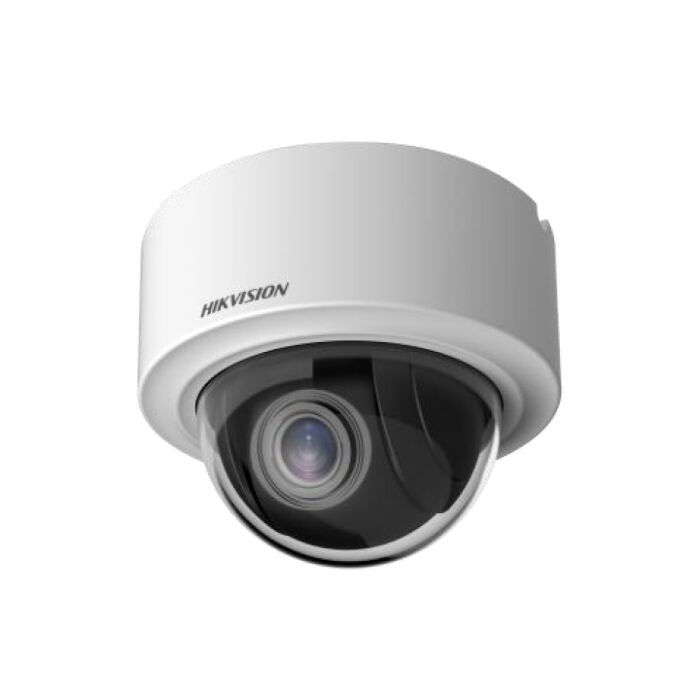

Hikvision DS-2DE3204W-DE(T5) 2MP Mini PTZ Network Dome Camera
SKU: DS-2DE3204W-DE(T5)
Contact Us for Stock Levels
Key Features:
- 2MP Mini PTZ Dome Camera
- 4 x Optical Zoom
- 16 x Digital Zoom
- 2.8mm - 12mm Varifocal Lens
- 103.4° - 33° Horizontal Field of View
- Approximately 2s Zoom Speed
- 120 dB WDR Technology
- Built-In Micro SD Card Slot
- IP66 Ingress Protection Against Water and Dust
- IK10 Vandal Resistant Rating
- Digital Defog
- Audio and Alarm I/O

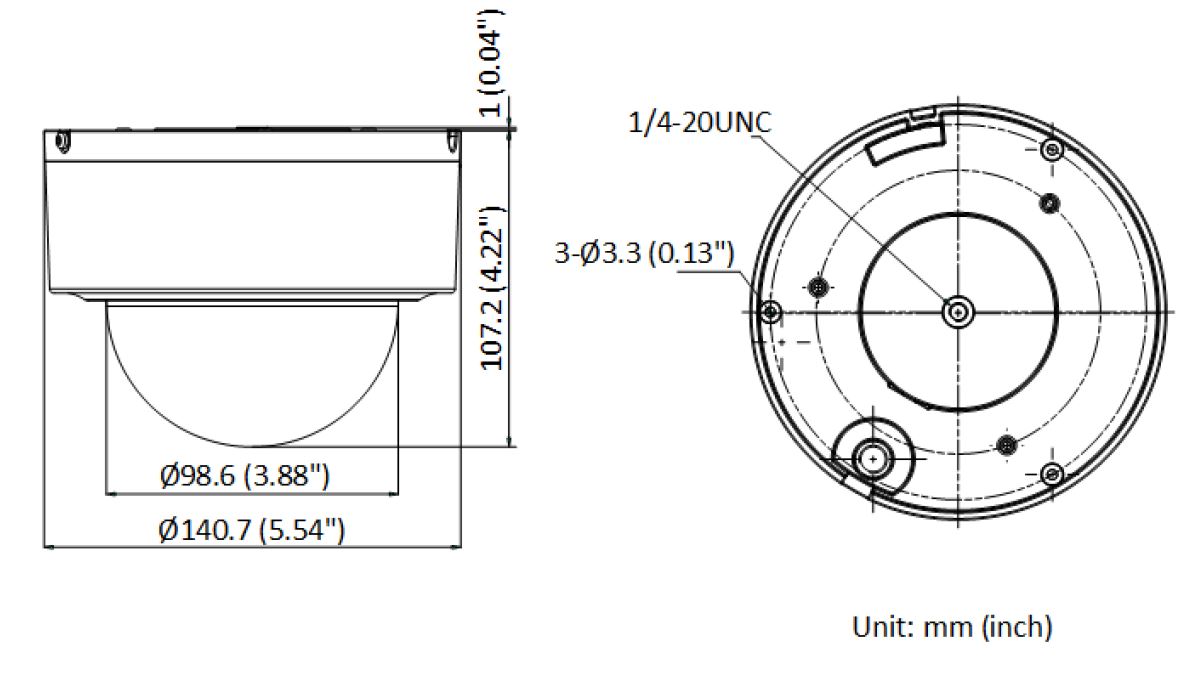

- Dimensions: Ø 140.7 mm × 107.2 mm
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision DS-2DE3204W-DE(T5) Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock and so could incur a lead time.
Please contact us before purchasing for current stock levels.
Useful Hikvision Tools
SADP Download
IE Tab Download
Hik-Connect
Details
The Hikvision DS-2DE3204W-DE(T5) is a 2 megapixel compact, 3" mini dome PTZ network camera. It offers simple and easy installation, adjustment and maintenance making it a practical and cost-effective PTZ option.
With 4x Optical Zoom technology users can zoom in closer to objects of interest within an expansive area. This allows for tailored and monitored security surveillance. With regards to movement range, the DS-2DE3204W-DE(T5) can tilt between 0° and 90° whilst being able to pan up to 350°. The 2.8mm-12mm varifocal lens, provides a horizontal field of view of 103.4° to 33°, a vertical field of view of 53.8° to 18.9° and a diagonal field of view of 122.6° to 37.8°.
DORI represents 'Detect', 'Observe', 'Recognise' and 'Identify'.
The DORI distance gives the general idea of the cameras ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 130.9m | 51.9m | 26.2m | 13.1m |
Users can install the DS-2DE3204W-DE(T5) safely outdoors thanks to its IP66 rating, making it sufficiently resistant to water, dust and dirt ingress. For installation in areas where it could be subject to wear and tear or vandalism attempts, the DS-2DE3204W-DE(T5) has been rated IK10, the highest possible Vandal Resistant rating.
On-Board the DS-2DE3204W-DE(T5) is a built-in memory card slot that supports microSD/microSDHC/microSDXC card up to 256GB for onboard storage. The DS-2DE3204W-DE(T5) PTZ also features one alarm input and one alarm output as well as one audio line in and one audio line out, this enables users to connect third-party devices such as microphones, speakers and security lights.
Please note that the DS-2DE3204W-DE(T5) mini PTZ can be powered via POE or 12V DC mains supply, although no power supply is provided with the purchase. At use-IP, we recommend powering via POE (Power Over Ethernet) for ease of installation as only one network cable is required. This can be done directly from an NVR that offers POE or via a POE Switch/Injector.
