600.00

Hikvision DS-2DE7232IW-AE 2MP 32x PTZ Camera

Availability: Contact Us for Stock Levels

£600.00 Incl VAT Excl VAT. £500.00

Hikvision DS-2DE7232IW-AE

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The DS-2DE7232IW-AE is a 2MP PTZ camera from Hikvision with a 4.8mm-153mm lens providing 32x optical zoom. This camera is a great choice for external applications with an audio/alarm I/O, IP66 rated weatherproof housing and infra-red LEDs that are effective up to 150m.

The DS-2DE7232IW-AE also performs really well in low light environments by using a range of image enhancing features such as wide dynamic range (WDR), highlight/back light compensation (HLC/BLC), 3D digital noise reduction (3D DNR), defog, electronic image stabilization (EIS) and regional exposure/focus.

Along with image enhancing, the DS-2DE7232IW-AE also features improved security by using smart features such as motion detection, intrusion detection, line crossing detection object removal detection and more. This camera also supports a range of PTZ functions such as 300 presets, 8 patrols and 4 pattern scans.

The DS-2DE7232IW-AE uses H.265+ video compression which dramatically reduces bandwidth and storage usage. This camera supports on board storage and can be powered by either a 24V AC power supply or by a 40W hi-poe injector. Remote access is possible through a browser or via the Hik-Connect app.
PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

Hikvision E Series Network Speed Dome User ManualHikvision Product CatalogueHikvision Quick Guide

Product Datasheets

Hikvision DS-2DE7232IW-AE 2MP 32x PTZ Camera Datasheet (0.91MB)


7232in-ae banner


R7 Family Badge

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Key Features

- 2MP
- Audio/alarm I/O
- 32x optical zoom
- 16x digital zoom
- 150m IR range
- IP66 rated weatherproof housing
- H.265+/H.265
- Ultra low light
- Can be powered by 24V AC power supply or by Hi-PoE injector
- WDR
- HLC
- 3D DNR
- Defog
- EIS
- Regional exposure/regional focus

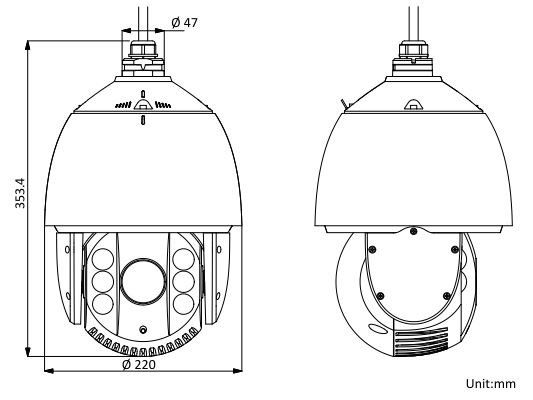

7232iw-ae dimensions


4.8mm - 153mm: Horizontal field of view: 55.6° to 2.04°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


PTZ Camera Codes

PTZ naming rule

Additional Information

Weight 4500.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount remote focus & zoom
Lens Focal Length 4.8mm~153mm
Viewing Angle Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 150m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max 40W
Warranty 3 Years
Launch Date Spring 2018
