1,612.80

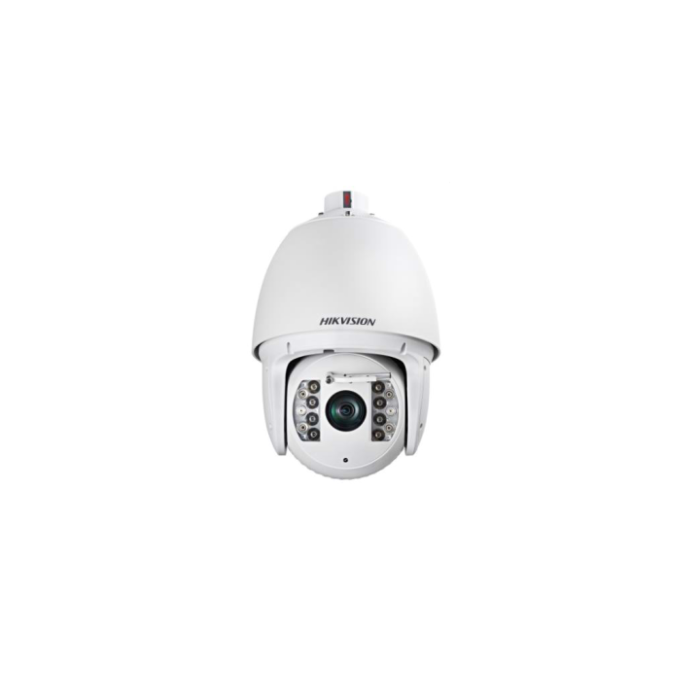

Hikvision DS-2DF7232IX-AELW Darkfighter 2MP Speed Dome Camera

Availability: Contact Us for Stock Levels

Hikvision DS-2DF7232IX-AELW

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2DF7232IX-AELW is a 2MP speed dome camera with 1/2.8" progressive scan CMOS chip and a focal length of 4.5 - 144mm. Users also get free remote access via Hikvision's iVMS-4200 Video Management Software.

With an on-board MicroSD card slot (giving users up to 256GB of storage) and the use of H.265+/H.265 compression, it gives users a saving on storage and bandwidth usage compared to H.264 compression previously used.

The DS-2DF7232IX-AELW is part of the Darkfighter series, which due to enhancing features such as, wide dynamic range (WDR), high light compensation (HLC), 3D digital noise reduction (DNR) and auto tracking 2.0, allows high quality images in low light environments.

This camera has a 32x optical zoom & 16x digital zoom lens, and an IR distance of 150m which allows users a detailed image over expansive areas. Supported by a panoramic movement of 360° and a tilt from -10° to 90°, it allows a full range of view.

Armed with IP66 weather-proof housing, a working temperature of -40°C to 65°C and a silicone wiper. It wipes away water and dirt that have congregated on the surface of the lens, making cleaning easier. This makes the camera perfect for outdoor use but it can also be for indoor use.


Please note, this camera does not come with a power supply.


Hikvision Product Catalogue Hikvision Darkfighter Catalogue Hikvision Quick Guide Hikvision DS-2DF7232IX-AEL(W) User Manual Hikvision DS-2DF7232IX-AEL(W) Quick Start Guide

Product Datasheets

Hikvision DS-2DF7232IX-AELW Darkfighter 2MP Speed Dome Camera Datasheet (0.68MB)


H3 Banner



Lux Levels - For more information on Lux Levels please look here.


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

+
+
+
+
+
+

Key Features

- 1/2.8" progressive scan CMOS
- 120dB WDR, 3D DNR, HLC, Smart IR
- Up to 1920 × 1080 resolution
- 32× optical zoom, 16× digital zoom
- Support H.265+/H.265 video compression
- Up to 150 m IR distance
- Wiper
- Min. Illumination:
Color: 0.05 Lux @(F1.6, AGC ON)
B/W: 0.01 Lux @(F1.6, AGC ON)
0 Lux with IR



4.5mm - 144mm: Horizontal field of view: 61.4° to 2.1°

Focal Length VF Diagram

For help on figuring out which focal length is best for you please see here.

Additional Information

Weight 6000.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 1920 X 1080
Supply Volts 24V DC or PoE+
Lens Mount auto-focus zoom lens
Lens Focal Length 4.5~135mm
Viewing Angle Horizontal Field of View 61.4° to 2.1°, Vertical field of view: 40.7° to 1.3°, Diagonal field of view: 70.0° to 2.5°.
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 150m
ONVIF Compatible Yes
Power Consumption max 60W
Warranty 3 Years
Launch Date March 2019
