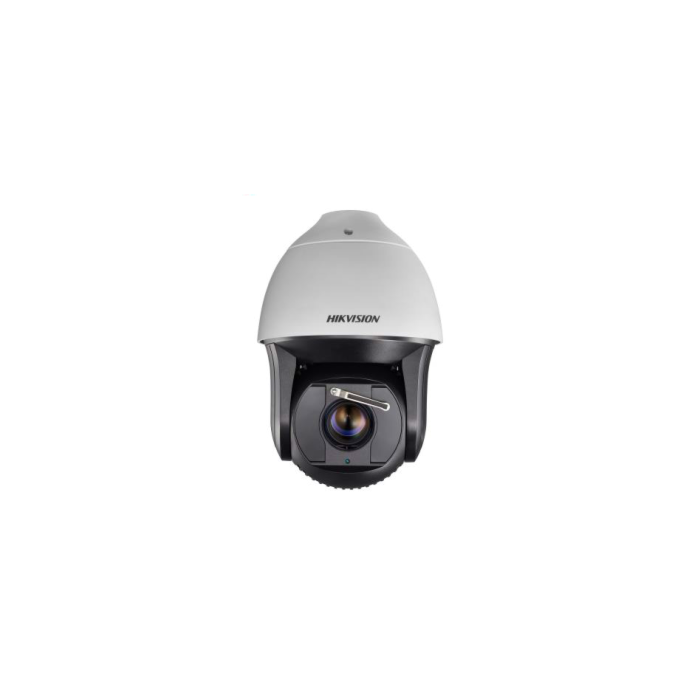

Hikvision DS-2DF8236IX-AELW Darkfighter 2MP Speed Dome Camera

Contact Us for Stock Levels

The Hikvision DS-2DF8236IX-AELW is a 2MP auto focus speed dome camera with 1/1.9" progressive scan CMOS chip and a focal length of 5.7 - 205.2mm. Users also get free remote access via Hikvision's iVMS-4200 Video Management Software.

This camera is part of the Darkfighter series which provides high quality images in low light environments. This is due to features such as high light compression (HLC), 120dB wide dynamic range, 3D digital noise reduction (3D DNR) and auto tracking 2.0. It also comes with true day/night recording, which provides monitoring 24 hours a day, 7 days a week.

Armed with 36x optical zoom & 16x digital zoom lens, the DS-2DF8236IX-AELW gives users a high detailed image over a large area. This is supported by a panoramic movement of 360° and a tilt from -20° to 90° with IP66 weather-proof housing and a working temperature of -40°C to 65°C.

It also comes with a silicone wiper on the surface of the lens. This allows for quick easy cleaning due to it wiping away any dirt or water that is congregating on the lens.

The DS-2DF8236IX-AELW comes with a built in memory card slot, compatible with Micro SD/SDHC/SDXC, allowing up to 256GB of storage. This works togehter with H.265+/H.265 compression which offers users huge savings on bandwidth and storage compared to the previous H.264 compression used.


Please note, this camera does not come with a power supply.

Hikvision Product Catalogue Hikvision Darkfighter Catalogue Hikvision Quick Guide Hikvision DS-2DF8232IX-AEL(W) User Manual Hikvision DS-2DF8232IX-AEL(W) Quick Start Guide

Product Datasheets

Hikvision DS-2DF8236IX-AELW Darkfighter 2MP Speed Dome Camera Datasheet (0.72MB)

H3 Banner

Lux Levels - For more information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2DF8236IX-AEL(W)
  2. +
  3. Hikvision DS-1604ZJ-Corner Mounting bracket
  4. +
  5. Hikvision DS-1663ZJ Ceiling Mount Bracket
  6. +
  7. DS-1604ZJ-Box-Pole
  8. +
  9. DS-1604ZJ-Pole
  10. +
  11. Hikvision DS-POE-60W PoE Injector for Hikvision PTZ
  12. +
  13. Hikvision DS-1604ZJ Wall Mounting Bracket
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 36× optical zoom, 16× digital zoom - Up to 200 m IR distance - 1/1.9" progressive scan CMOS - Up to 1920 × 1080 resolution - Wiper - 120dB WDR, 3D DNR, HLC, Smart IR - Support H.265+/H.265 video compression - Min. Illumination: Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR

5.7mm - 205.2mm: Horizontal field of view: 59.8° to 2.0°
Focal Length VF Diagram

For help on figuring out which focal length is best for you please see here.

Image chip size 1/1.9"
Image chip type Progressive Scan CMOS
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 1920 X 1080
Supply Volts HPoE or 24V AC
Lens Mount auto-focus zoom lens
Lens Focal Length 5.7mm~205.2 mm
Viewing Angle Horizontal Field of View: 59.8° to 2.0°, Vertical field of view: 33.6° to 1.1°, Diagonal field of view: 68.6° to 2.3°.
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 200m
PSU included No
ONVIF Compatible Yes
Power Consumption max. 60W
Warranty 3 Years
Launch Date March 2019
