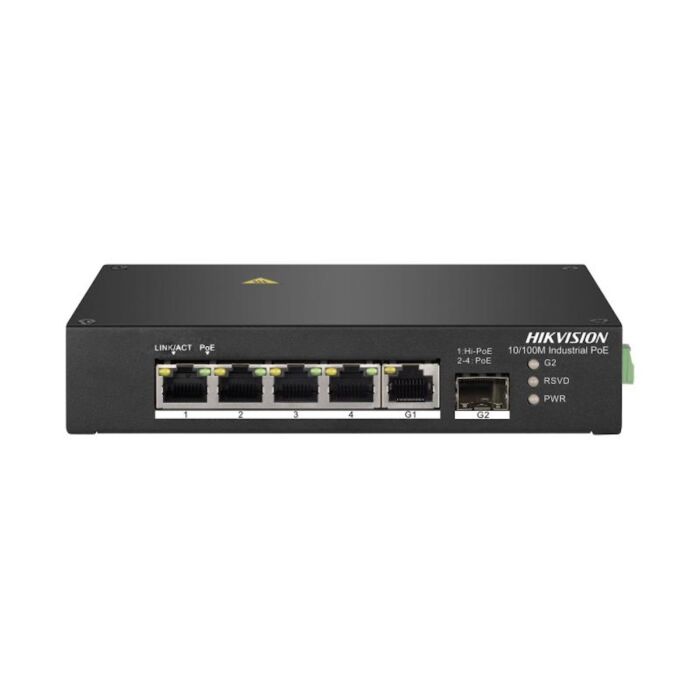

Hikvision DS-3T0306HP 4-Port Fast Ethernet Unmanaged Industrial Hi-PoE Switch
SKU: DS-3T0306HP
Contact Us for Stock Levels
Key Features:
- 4x 10/100 Mbps PoE ports, 1x Gigabit RJ45 port and 1x Gigabit SFP Fiber Optical port
- Up to 90W Hi-PoE Output for Port 1
- Total PoE Power Budget - 110W
- Max. Port Power - 30W
- IEEE 802.3 af/at/bt Compliant
- PD Power Intelligent Detection with System-Level Overload Protection
- Up to 300m Long Range PoE Transmission
- 6kV Surge Protection
- 4.8 Gbps Switching Capacity
- 4K MAC Address Entries
- Max. Power Consumption - 120W
- Power Supply - 48~54V DC, 2.5A
- DIN Rail Design
- Operating Temperature - -40°c to 75°c
- Operating Humidity - 5-95% (non-condensing)
Please note: this product is not immediately available from UK stock, and currently has a Lead Time between 10 days and 2 ~ 5 weeks
Please contact us before purchasing.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-3T0306HP can support four 10/100 Mbps PoE port, one Gigabit RJ45 port, and one Gigabit fiber optical port. It is designed for harsh industrial environments, supports centralised power supply, and each port provides 30W power. It features a rugged aluminium alloy housing and an option for fiber connection.

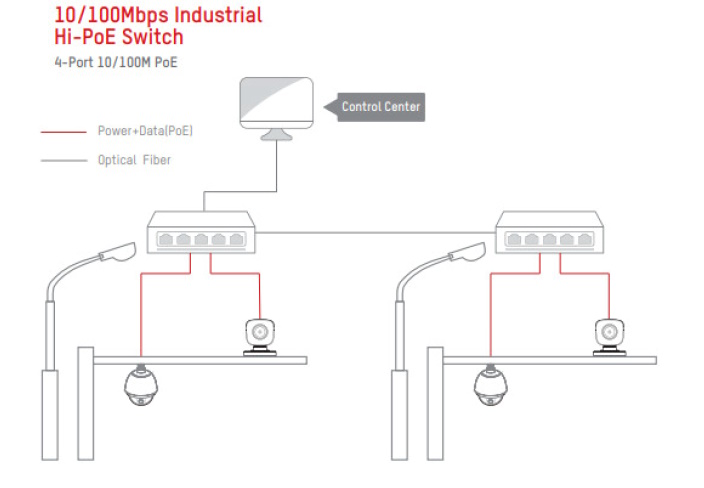

Typical Application:

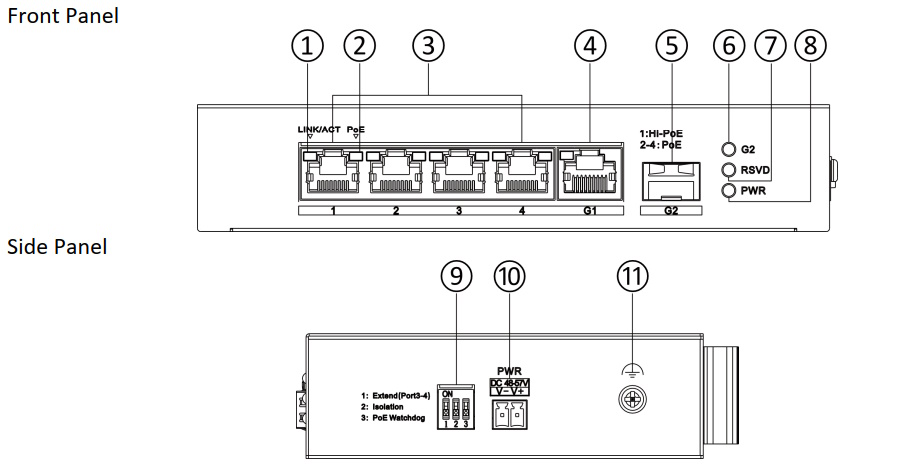

Physical Interface:

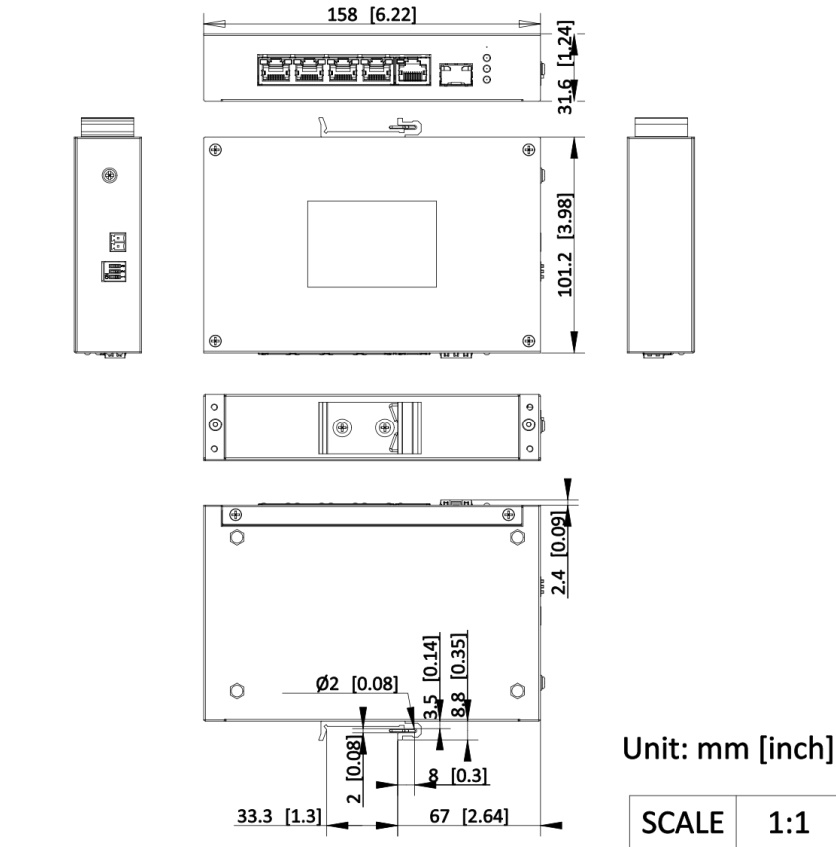

Dimensions:
