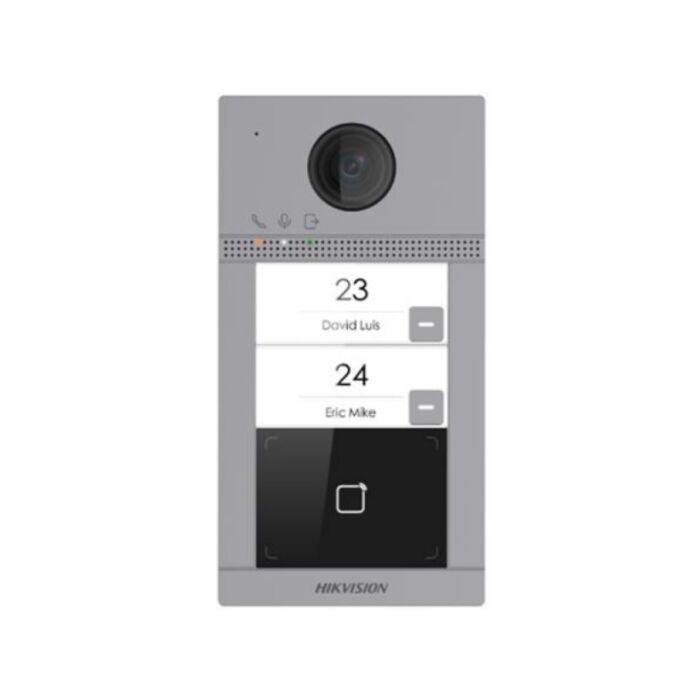

Hikvision DS-KV8213-WME1(C) Villa Door Station
SKU: DS-KV8213-WME1(C)
In stock
Key Features:
- Aluminium Alloy design
- IP65, IK08 - Suited for Outdoor Application
- Installation - Surface Mounting
- 3 Indicators Integrated
- Internal Mifare Card Reader
- 2-channel Indoor Station access control
- Built-in Loudspeaker and Omnidirectional Microphone
- Noise Suppression and Echo Cancellation
- 2MP HD Camera with IR Suppliment
- Standard PoE / 12 VDC
- Supports WiFi connection - Convenient setup, no wiring required
- Supports Web Configuration
- Power Consumption - <10W
Please note: this product does not come equipped with a Mounting Bracket. This will need to be purchased separately (items required are listed below, under Related Products)
Please note: this product is not immediately avaliable from UK stock, and currently has a Lead Time of 3 ~ 7 days.
Please contact us before purchasing.

Details
The DS-KV8213-WME1(C) is a Hikvision Door Station designed with an IP65, IK08 Aluminium alloy shell, fit for Outdoor application. This new (C) model also features a selection of design improvements, along with the Door station's additional features and functionality, making the DS-KV8213-WME1(C) an ideal addition to any Hikvision door entry / Intercom system set-up.
Features
System Parameters - Embedded Linux operation system, Embedded MCU processor, 32 M ROM, and, 256 M RAM.
Video Parameters - The DS-KV8213-WME1(C) offers a 2MP HD Camera, with a max. resolution of 1920 x 1080 (640 x 480 for its sub-stream), WDR (Wide Dynamic Range) support, and a Field of View (FOV) of 124° / 75° (horizontal / vertical).
IR Suppliment Lights are also included.
Audio Parameters - The DS-KV8213-WME1(C) also offers impressive audio quality, with a compression bitrate of 64 Kbps, and the inclusion of Noise suppression and Echo cancellation, keeping audio as clear as possible.
Audio Input - Built-in omnidirectional Microphone - Output - Built-in Loudspeaker (with more than 80 dB within 30cm)
Device Interfaces - These include:
- 4 Alarm Inputs, 1 Network Interface, 1 TAMPER Interface, 2 Exit Buttons (Maximum), 2 Lock Control Interfaces, 2 Door Contact Inputs, 1 Power Interface, and, the inclusion of an Internal Mifare Card Reader (and 1 TF card)
When compared to its previous model -
| DS-KV8213-WME1(C) | Previous (Non-C) Model | |
| Audio Compression | G.711 U , G.711 A | G.711 U |
| Capacity (User / Card) | 2000 / 10,000 | / |
| WiFi Standard | WiFi 802.11 b/g/n | / |
| Card Reader Frequency | 13.56 MHz | / |
| TF Card | 1 (reserved) | 0 |
The DS-KV8213-WME1(C) is designed for Surface Mounting Installation

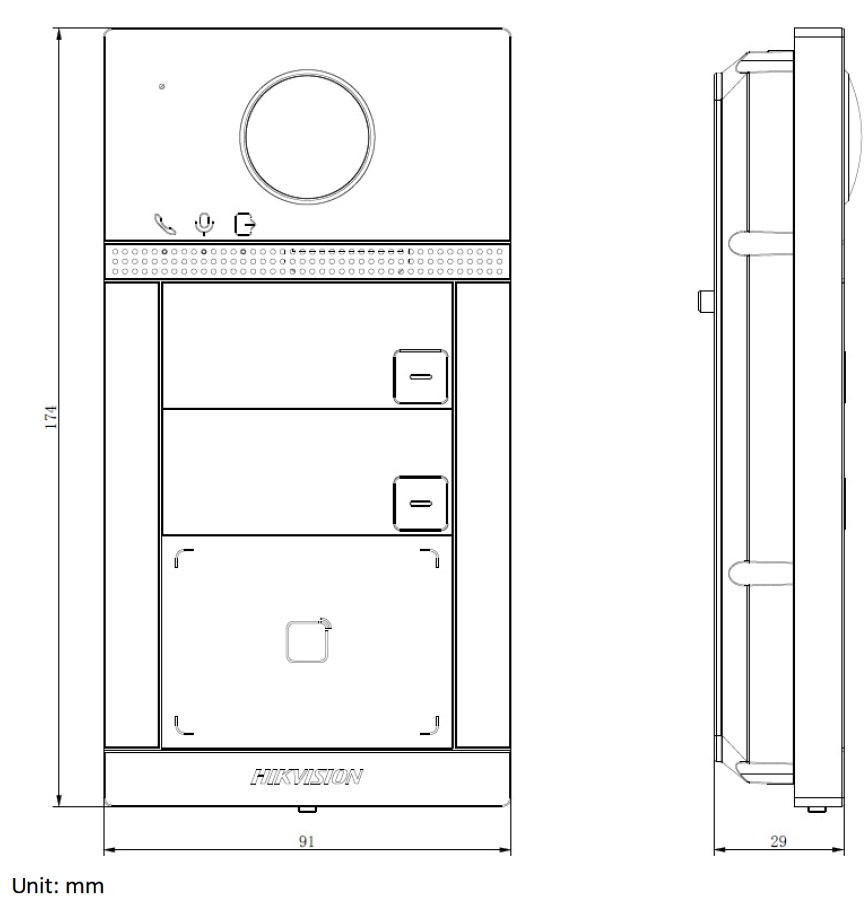

Dimensions
