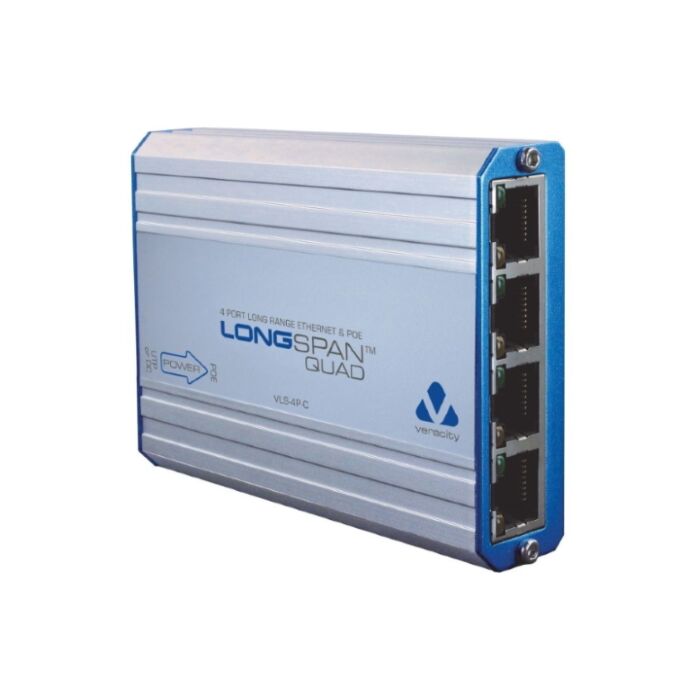

Veracity LONGSPAN Quad VLS-4P-C Long Range Ethernet and PoE Adaptor
SKU: VLS-4P-C ~ EOL
Out of stock
The VLS-4P-C is now End of Life!
May we recommend the VLS-LSM-C4 as a replacement.
Key Features
Long range point-to-point Ethernet over normal network cable
Full-performance 100Base-TX with PoE at over 820 metres
Provides four PoE ports to connect four IP devices over one cable
Optional local PSU can deliver 25W per port at device end
Ruggedised for high performance over wide temperature range
Compatible with LONGSPAN Base units
Fully automatic, simple to install and maintenance free
5 Year warranty
LONGSPAN Duo (2 port) Option Available - VLS-2P-C
Dimensions: 103mm(L) x 75mm(W) x 22mm(H)
Please note that the VLS-4P-C may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Details
The Veracity LONGSPAN QUAD VLS-4P-C delivers PoE to four devices over a single regular network cable at long distances.
This device is compatible with any other LONGSPAN device and would normally be used with a LONGSPAN Base unit. This supplies PoE over the network cable, providing a total LONGSPAN Quad PoE output budget of up to 25W at 600 metres and 15W at 800 metres.
Such high speed connections are essential as LONGSPAN Quad is designed to work with any LONGSPAN Base unit to provide high-speed connections (with POE) or four IP cameras at up to 820 metres over a single network cable, supporting the full 200Mbps required.

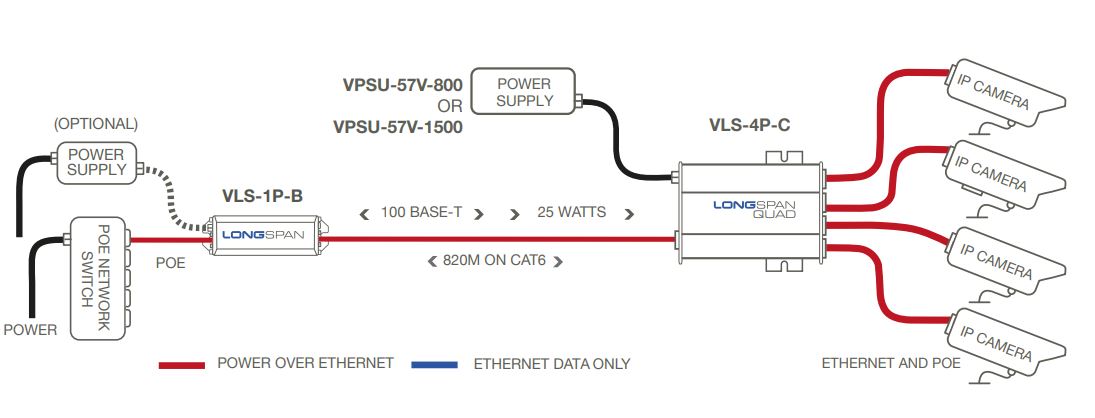

POE Over Cat6 or Cat5e Application Diagram
The above diagram shows the VLS-4P-C LONSPAN Quad being applied within a system. The range is for typical 24AWG Cat5e or 23AWG Cat6, 4-pair UTP. Distances my be increased by connecting multiple links in series. Data rate at full range stated: 100Base-TX = 200Mbps, (100Mbps up plus 100Mbps down. 10Base-T = 20Mbs. LONGSPAN adapters deliver full-bandwidth Ethernet and optional full-power POE over greatly extended distances of regular network cable or UTP.
LONGSPAN and LONGSPAN Quad combinations also support 1-pair and 2-pair connections at even longer distances with reduced 10Base-T bandwidth. This allows analogue camera instalaltion using UTP cable to be replaced with IP cameras, without the need to replace legacy cabling.
LONGSPAN automatically adapts to the cable pairs available, and delivers the same unrestricted 10 or 100Mbps full duplex network connection to full distance assuring predictable IP video quality.
